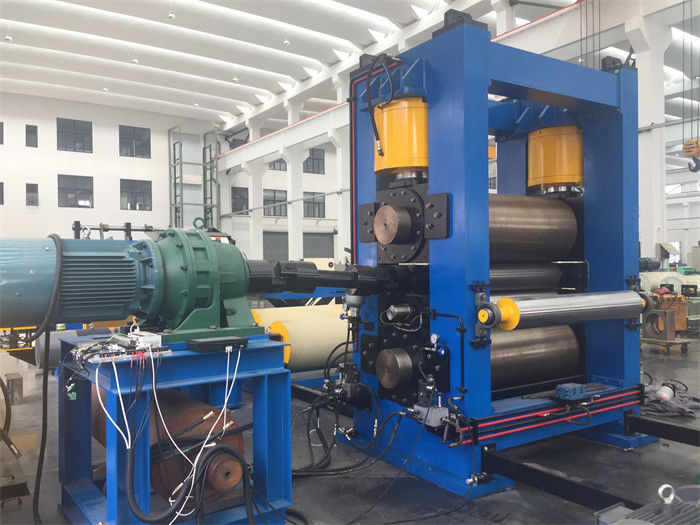

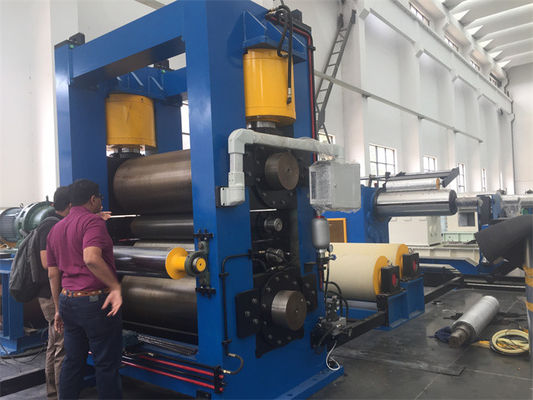

4hi Stainless steel Checker Sheet Emboss Cold Rolling Mill

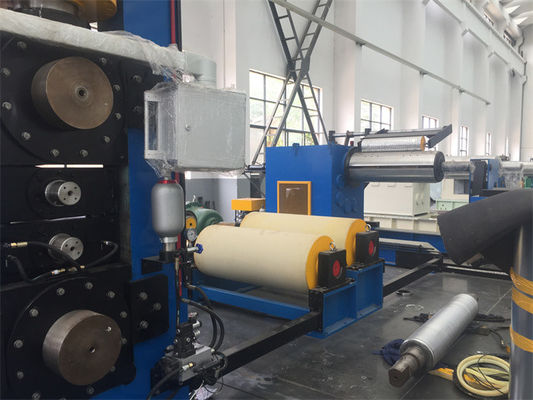

The stainless steel checker sheet embossing rolling line includes uncoiler, S briddle rollers, 4hi emboss cold rolling mill, S bridle rolls, tension straightener, recoiler. The SUS checker sheet is one side embossed and the other side is flat, used for decoration surface.

Specification:

1) Flower embossing roller: ø235*1400 one pc,material: 9Cr2Mo,hardness: HRC63-66

The depth of hardness:15mm

According to customer’s sample to make pattern by laser engraving

rollers surface is chrome coated.

2) Working round roller: ø235*1400 one pc,material: 9Cr2Mo

Support roller: ø510*1400 2pcs,material: 9Cr2Mo,hardness: HRC60-63

3)Bearings: TWB3003144 4pcs

Bearing seat: 530*490*150 mm. 4pcs

4)Drive:30kw motor with speed reducer, frequency adjusting speed

Working speed:0-10m/min

Drive style: drive working rollers

5)Type of pressing:hydraulic pressing down, ø280 AGC servo oil cylinder 2 pcs,adjustable pressure, digital show the pressure.

6) Closed cover.safety device, emergency button

7)Type of changing roller: by roller changing car driven by electric motor
