Product Details:
|
| Name: | Compact Precision Slitting Line Machine | Coil Material: | CR, GI, GL, PPGI |
|---|---|---|---|
| Coil Width: | 300-1250 | Sheet Thickness: | 0.3-1.2 |
| Coil Weight: | 5T | Slitting Speed: | 0-40m/min |
| Number Of Slitting: | 1mm X 10slits | Min. Slit Strips: | 100mm |
| Slit Precision: | +/-0.20mm | Slitting Knife: | SKD11 |
| Total Power: | 100KW | Line Direction: | Customized |
| High Light: | Compact Precision Slitting Line Machine,Slitting Line Machine For Light Gauge,1.2 X 1250 coil slitting machine |
||

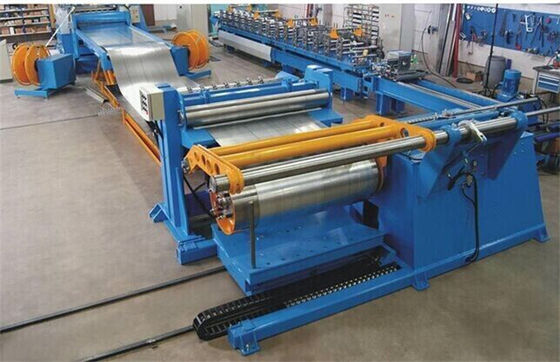

Compact Precision Slitting Line machine for Light Gauge (0.3-1.2 X 1250)
Light gauge slitting line can be compact type, simpler structure, lower speed, suitable for customer to make thin baby coils for own plants.

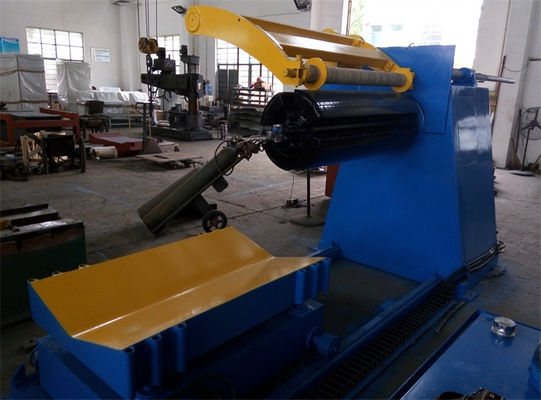

Composed of Coil-loading car, Single-mandrel active uncoiler→Side guide, slitter + edge scrap reeler→loop→pre-separator + tensioner→recoiler, coils discharging car.
Parameters:
| Compact Slitting Line JY(0.25 -1.0 X 1250) 50mpm |
Parameters |
| Coming steel coils | ID508mm, 610mm, OD1200mm, coil weight 6T |
| Finished baby coils | ID508mm, OD1200mm, coil weight 6T max |
| Mother coil width | 300-1250mm |
| Baby coil widths | 20mm -600mm |
| Number of slitting | 1mm x 15slits |
| Main motors | Slitter 30KW + Recoiler 37KW |
| Slitter knife | ID160 x OD280 x 40mm SKD11 HRC58-61 |
| Recoiler mandrel | Cantilever mandrel |
| Slitting speed | 0-50mpm adjustable |
| Configuration | Siemens PLC, Inverter Drive, Vitory Valves |
| Slitting precision | Slit width ±0.2mm; Camber ±0.1mm/m; bur 5% of thickness; recoil hump<0.5mm |
Configuration:
AC motor drive and frequency converter for slitting and recoiling
Siemens smart PLC and big screen touch screen
Chint or Schneider electric parts
Layout Drawing
