10-50m/Min ERW Pipe Making Machine Square Rectangular Steel Pipe Mill Machine

Name: 10-50m/Min ERW Pipe Making Machine Square Rectangular Steel Pipe Mill Machine
Brand: WUXI JINYE COMPLETE EQUIPMENT CO.,LTD.
SKU: Square 200x200
Price: 215,000.00 USD
Availability: InStock

All Products

Metal Slitting Line
(30)

Slitting Line Machine
(19)

Precision Slitting Line
(20)

Cut To Length Line Machine
(19)

Metal Cut To Length Machine
(18)

Flying Cut To Length Line
(17)

Cold Rolling Mill
(20)

Reversing Cold Mill
(15)

Tandem Cold Mill
(11)

ERW Pipe Making Machine
(12)

Best Products

Square Rectangle Steel Pipe Mill Machine by turks heads from round to square

I'm Online Chat Now

10-50m/Min ERW Pipe Making Machine Square Rectangular Steel Pipe Mill Machine

Large Image : 10-50m/Min ERW Pipe Making Machine Square Rectangular Steel Pipe Mill Machine

Product Details:

Place of Origin:	Wuxi, China
Brand Name:	Jinye
Model Number:	Square 200x200

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Packaging Details:	10 x 40HC
Delivery Time:	120-150Days
Payment Terms:	T/T

Contact Now

10-50m/Min ERW Pipe Making Machine Square Rectangular Steel Pipe Mill Machine

Description

Name:	Square Rectangular Steel Pipe Mill Machine	Input:	Low Carbon Steel, Low Alloy Steel Strips
Output:	80x80 - 200x200mm Square Pipes	Producing Speed:	10-50m/min
Land Area:	120m X 10m	HF Welder:	Solid State 500KW
Cutting:	Fly Saw	Tooling:	Cr12 Rollers
Forming Technology:	Directly To Square	Roller Shaft:	Horizontal 150mm
Highlight:	50m/min ERW Pipe Making Machine , 10m/min ERW Pipe Making Machine , Rectangular Steel Pipe Mill Machine

Square Rectangular Steel Pipe Mill Machine Directly To Square

“Directly to Square” forming Technology

Directly roll steel strip and form into Square& Rectangle, weld and then turks head to get finished pipes. One complete set of combined rollers can make all the square and rectangular pipes, is economical and practical. The roll forming process takes square or rectangular pipes as one package of profiles between each other automatically adjusted by one set of combined rollers.

Directly to Square advantages:

Compared with round into square& rectangle forming, this way is better for the shape at the corner edge of cross section, pipe inner radius is smaller, and the brim is flat, outlook is good looking.
And the whole line load is lower ,especially the load on sizing is lower.
he width of steel strip is smaller about 2.4-3% than round into square & rectangle, saving material.
It adopts the multi-point bending way, avoid the axial force and side abrasion, reduce the number of forming steps under the same quality, meanwhile it reduce the power wastage and roller abrasion.
It adopts the combined type roller on the most of the forming stands, realize that one set of roller can produce dozens of square& rectangle pipes of different dimensions, thus decrease the storage of roller, saving cost about 80% on roller, the roller turnover becomes faster, one new product design time is shorter..
The high frequency welding happens on top of square / rectangular pipe top, the same as round pipe welding.

Square 200x200 Pipe Production Line:

Composition	Configuration	Parameters
Uncoiler	Hydraulic expansion, traction roll	1.5- 6 x 320-800mm ID508, OD2000 15T
Pinch feeder, straightener	double pinch rolls, 5 rollers straightener	Φ183900mm pinch roll, Φ120900mm straightening rolls
shear and welder	Hydraulic shear, CO2 gas shielded welding	H13 blades, 6 x 800mm 4mins max cycle.
Horizontal Spiral accumulator	Pinch feeding in and passive coming out	φ8m feeding 160m/min, 90KW
Forming machine	breakdown forming and fin-pass forming	7sets horizontal rolls, 2vertical rolls 160KW
Welding and cooling	seam guide, HF welding squeezing, deburring, cooling	turks seams guide,500KW solid state welder, 5rolls squeezing, 2pcs burrs scraping, 6m cooling tank
Sizing machine	turks head	1 vertical roll, 4 horizontal rolls and 4sets turks head, 160KW
Fly cutting saw	Orbital Milling	Double blades NC control, Inovance AC servo motors 65KW
Output roll table	chain transmission	20m
Automatic stacker and packer	Optional
Total power		1200KW

ERW Pipe Machines Specification:

Model	Pipe size	HF welder (KW)	Motor power(KW)	Speed (m/min)
Model	Фmm x mm	HF welder (KW)	Motor power(KW)	Speed (m/min)
HG16	Ф(7-20) x (0.2-0.5)	60	22	80-140
HG25	Ф(8-32)x(0.35-1.3)	100	45	70-130
HG32	Ф(15-50) x (0.6-2.0)	150	110	60-120
HG50	Ф(20-63)x(0.8-2.5)	200	160	50-100
HG63	Ф(20-76)x(0.8-3.0)	250	200	30-90
HG76	Ф(25-80) x (1.2-4.0)	300	110x2	30-80
HG89	Ф(32-102)x(1.5-4.5)	300	132 x 2	30-80
HG114	Ф(38-127) x (1.5-4.5)	300	160 x 2	30-70
HG125	Ф(50-165)x(2.0-5.0)	400	185x2	20-60
HG165	Ф(76-165)x(2.0-6.0)	600	200x2	15-50

Configuration of pipe mill electric system

1.Pipe forming and sizing by DC motor controlled by Parker DC driver
2.High frequency welding equipment is made in Baoding
3.Flying saw control system is Contor
4.One operator console for uncoiler and accumulator

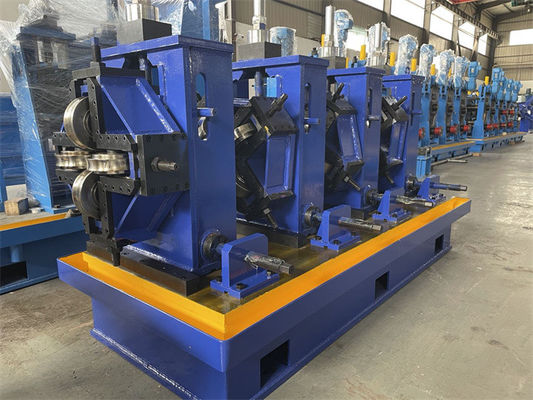

10-50m/Min ERW Pipe Making Machine Square Rectangular Steel Pipe Mill Machine 0

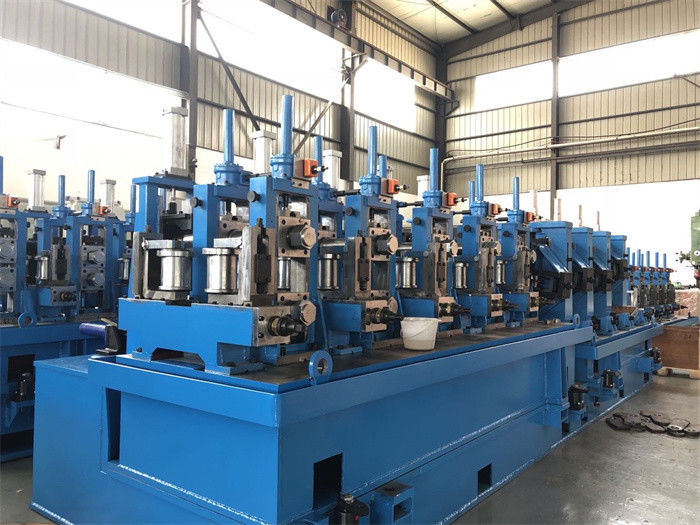

10-50m/Min ERW Pipe Making Machine Square Rectangular Steel Pipe Mill Machine 1
