HR CR Steel Pipe ERW Pipe Making Machine Production Line HG 89

Large Image : HR CR Steel Pipe ERW Pipe Making Machine Production Line HG 89

Product Details:

Place of Origin:	Wuxi, China
Brand Name:	Jinye
Model Number:	HG 89

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Packaging Details:	4 x 40HC
Delivery Time:	120-150Days
Payment Terms:	T/T

Contact Now

HR CR Steel Pipe ERW Pipe Making Machine Production Line HG 89

Description

Name:	HR CR Steel Pipe ERW Tube Making Machine	Input:	HR CR Steel, Galvanized Steel Strips
Output:	Φ38~Φ114 Pipes	Producing Speed:	30- 80m/min
Land Area:	65m X 6m	HF Welder:	Solid State 350KW
Cutting:	Fly Saw	Tooling:	Cr12 Rollers
Forming Technology:	7 + 5 Horizontal Rollers	Roller Shaft:	Horizontal 80mm
Highlight:	80m/min ERW Pipe Making Machine , ERW Pipe Making Machine HG 89 , HR CR Steel Pipe Making Machine

HR CR Steel Pipe ERW Tube Making Machine Production Line ( HG 89 )

This high-frequency welding pipe mill is specialized equipment to produce high frequency straight seam welded pipes for structural pipe and industrial pipe withΦ38mm~Φ114mm and wall thickness of 1.0~4.0mm. Through optimization design, best materials choice, and accurately fabrication and rolls, the whole line can be reached high precision and high speed. Within suitable range of pipe diameter and wall thickness, pipe production speed can be adjusted.

Sepcification of HG 89 Pipe Production Line:

Raw material
low carbon steel, low alloy steel, HR or CR. Tensile strength: σb≤600Mpa Yield point: σs≤315MPa 0.8 - 3.0 x 400mm, ID508mm OD1800mm, 5T
Finished Pipes
Round pipe size: Φ38~Φ114mm x 1.0~3.5mm x 4~10m. Square, rectangular pipe size: 30×30mm~100×100mm * 1.0mm~3.5mm 20×40mm~80 × 120mm * 1.0mm~3.5mm(a:b≤2:1) Producing length: 4~10m (can be designed by customer request) Cutting length precision: ±3mm (by hot friction computer saw)
Machine Parameters

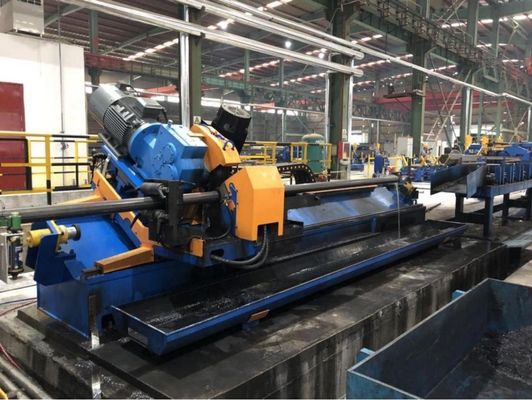

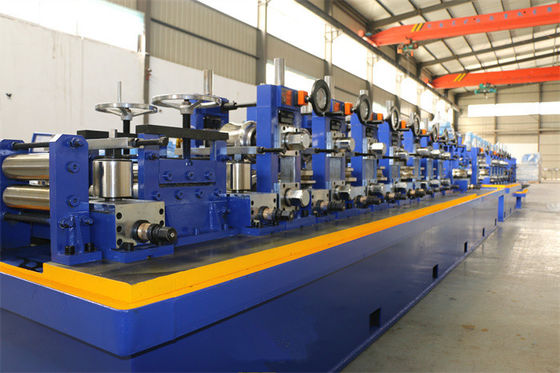

 Decoiler, hydraulic expansion, air brake Shear & butt welding device, automatic 16-250A Horizontal spiral accumulator, Φ5m, 150m/min feeding, 40KW Forming & Sizing unit, 320KW DC, 7+5 horizontal rollers, 9+5 vertical rolls Hot friction flying saw, φ700×70×4 saw blade, 40KW Run out table,3KW 350KW HF welder, 1 set Rollers,according to customers pipe sizes Total installation power: 750KW Line speed: 30-80m/min

ERW Pipe Machines Specification:

Model	Pipe size	HF welder (KW)	Motor power(KW)	Speed (m/min)
Model	Фmm x mm	HF welder (KW)	Motor power(KW)	Speed (m/min)
HG16	Ф(7-20) x (0.2-0.5)	60	22	80-140
HG25	Ф(8-32)x(0.35-1.3)	100	45	70-130
HG32	Ф(15-50) x (0.6-2.0)	150	110	60-120
HG50	Ф(20-63)x(0.8-2.5)	200	160	50-100
HG63	Ф(20-76)x(0.8-3.0)	250	200	30-90
HG76	Ф(25-80) x (1.2-4.0)	300	110x2	30-80
HG89	Ф(32-102)x(1.5-4.5)	300	132 x 2	30-80
HG114	Ф(38-127) x (1.5-4.5)	300	160 x 2	30-70
HG125	Ф(50-165)x(2.0-5.0)	400	185x2	20-60
HG165	Ф(76-165)x(2.0-6.0)	600	200x2	15-50

HR CR Steel Pipe ERW Pipe Making Machine Production Line HG 89 0
