High Speed 4Hi 6Hi Six Stands Tandem Cold Mill Line 750

High Speed 4Hi 6Hi Six Stands Tandem Cold Mill Line 750
High Speed 4Hi 6Hi Six Stands Tandem Cold Mill Line 750 High Speed 4Hi 6Hi Six Stands Tandem Cold Mill Line 750 High Speed 4Hi 6Hi Six Stands Tandem Cold Mill Line 750 High Speed 4Hi 6Hi Six Stands Tandem Cold Mill Line 750

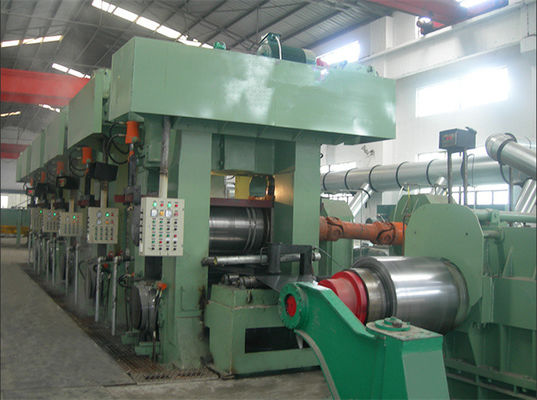

Large Image :  High Speed 4Hi 6Hi Six Stands Tandem Cold Mill Line 750

Product Details:
Place of Origin: Wuxi, China
Brand Name: Jinye
Model Number: Tandem 750
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Packaging Details: 8x 40HC
Delivery Time: 120 -180days
Payment Terms: T/T

High Speed 4Hi 6Hi Six Stands Tandem Cold Mill Line 750

Description
Name: High Speed 4Hi 6Hi Six Stands Tandem Cold Mill Material: HRPO Q195 Q235
Input: 2-3 X 650mm Output: 0.25-1.0 X 650mm
Rolling Speed: 550m/min Work Roller: Dia180 X 750
Backup Roller: Dia650 X 730 Press Down: Hydraulic AGC
Total Power: 6000KW Land Area: 40m X 15m
Highlight:

6Hi Six Stands Tandem Cold Mill

,

Tandem Cold Mill Line 550

,

High Speed 4 hi rolling mill

High Speed 4Hi 6Hi Six Stands Tandem Cold Mill Line 750​



Composition

  1. Hydraulic expansion uncoiler
  2. Hydraulic shear, welding table
  3. Horizontal spiral accumulator
  4. entry processing table(include tension roll)
  5. 4hi 6hi mills, 1#-2#-3#-4#-5#-6#
  6. Hydraulic backup rollers changing device(6sets)
  7. work roller changing device(2sets)
  8. output processing table(hydraulic shear)
  9. coil discharging car
  10. Normal pressure hydraulic system
  11. AGC hydraulic system 1Set
  12. Oil-gas lubricating system 1Set
  13. thin oil lubricating station 1Set
  14. Process lubricating Station (Customer prepares)
  15. Electric control system 1Set
  16. thickness gauge system, 2sets

Flow:

Uncoiler→Shear, welding table→Horizontal spiral accumulator→entry processing table(include tension roll)→1# 4hi mill→2# mill→3# mill→4# mill→5# mill→6# mill exit processing table(include shear)→recoiler→Coil unloading car



Parameters:

Raw Material
Q195,Q215,08Al,20#, Q235, SPHC, SPHD, SPHE
yield strength≤ 360N/mm2 tensile strength≤ 610N/mm2
2-3mm thickness x (550-650)mm width
ID508mm OD1800 max 10T
Finished product
0.25 -1.0mm x 500 -650mm
ID508 X OD1800 x 10T
750 4Hi 6hi 6heads Tandem Mill
φ180-φ170×750mm work roller
φ650φ620× 730mm backup rollers
mill columns: 400mm x 460mm
AGC hydraulic cylinder: D700/500× 80mm
Main motor: 850KW x 6sets
Drive shaft: SWC390-1700
Max rolling force: 6500KN
Max rolling torque: 55KN.M
Rolling speed: max 560m/min





Hydraulic AGC system:

  • Electro-hydraulic servo valve: 609 institution, stainless steel oil tank and pipes.
  • Include pump, tank, cooler, filter, energy accumulator, heater, valve groups, displacement sensor, pressure sensor, AGC software and computer cabinet, etc.
  • System pressure: 31.5MPa
  • Work pressure≤18-21MPa stepless adjustable
  • Max pressing down speed
  • 46# anti wearing hydraulic oil
  • Oil cleanness in system: NAS7
  • Temperature of oi:45±10℃
  • Oil filtering cleanness in pipelines:10um
  • Oil filtering cleanness before servo valve:3um
  • Return oil filtering cleanness:10μm
  • Consumption of cooling water:11m3/h
  • Pressure of cooling water in circulation:0.4Mpa
  • Electric heater:3×2kW

Electric control system:

  • Siemens 6RA80 2-bridge 4-quadrant weak magnet speed adjusting system, Siemens PLC programming reply control.
  • Optical cable or profibus cable connect modules to realize communication, with tension joining in.
  • Constant coiling tension with coiling diameter increasing and track the tension.
  • One main pane, two operator panels, cantilever panel at 1# mill, with current, speed, tension display.
  • Control system includes programmable controller, touch screen, pump, actuator, signal inspection, etc., to show machine parameters, running state and fault analysis, with pressure, position sensors joining in control loop.
  • Fault comes out, alarm lighting and sounding to remind and 5mins later abnormal signal show up

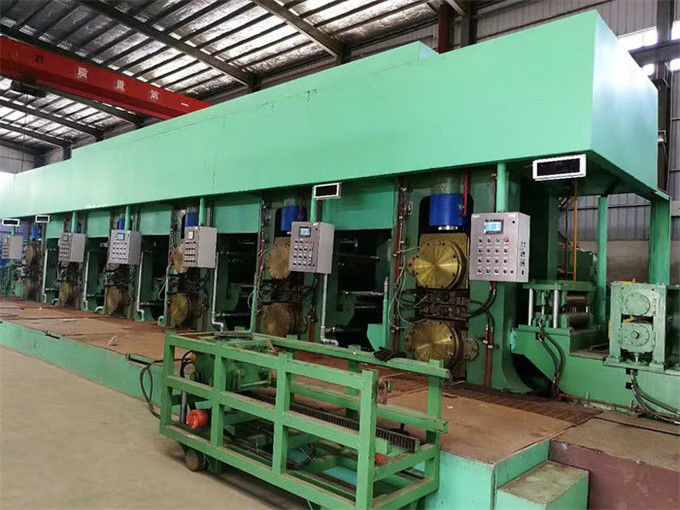

High Speed 4Hi 6Hi Six Stands Tandem Cold Mill Line 750 0

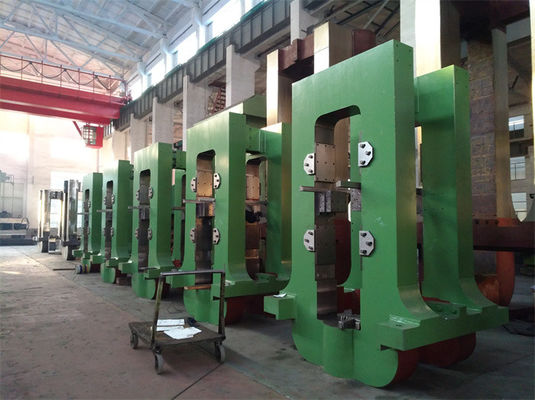

High Speed 4Hi 6Hi Six Stands Tandem Cold Mill Line 750 1
