Mild Carbon Steel Pipe Mill Line With Cold Cutting Saw HG 76

I'm Online Chat Now

Mild Carbon Steel Pipe Mill Line With Cold Cutting Saw HG 76

Mild Carbon Steel Pipe Mill Line With Cold Cutting Saw HG 76
Mild Carbon Steel Pipe Mill Line With Cold Cutting Saw HG 76 Mild Carbon Steel Pipe Mill Line With Cold Cutting Saw HG 76

Large Image :  Mild Carbon Steel Pipe Mill Line With Cold Cutting Saw HG 76

Product Details:
Place of Origin: Wuxi, China
Brand Name: Jinye
Model Number: ERW HG76
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Packaging Details: 4 x 40HC
Delivery Time: 120-150Days
Payment Terms: T/T

Mild Carbon Steel Pipe Mill Line With Cold Cutting Saw HG 76

Description
Name: Mild Carbon Steel Pipe Making Mill Line Input: HR Steel, Galvanized Steel Strips
Output: Φ25.4~Φ89mm Pipes Producing Speed: 30-90m/min
Land Area: 65m X 6m HF Welder: Solid State 350KW
Cutting: Cold Saw Tooling: Cr12 Rollers
Forming Technology: 7 + 5 Horizontal Rolls Roller Shaft: Horizontal 80mm
Highlight:

Mild Carbon Steel Pipe Mill Line

,

HG 76 Carbon Steel Pipe Mill Line

,

89mm carbon steel tube mill

Mild Carbon Steel Pipe Making Mill Line With Cold Cutting Saw ( HG 76 )



The pipes made by the ERW Pipe Mills:

Electric heating tube, fridge pipe, Auto car pipe, sporting facility tube, furniture pipe, cooler pipe, pressure feeding pipe, construction pipe, configuration pipe, the ERW pipes are popular because the pipe making speed is high and pipe quality is good.



Sepcification of HG 76 Pipe Production Line:

Raw material
low carbon steel, low alloy steel, HR or CR, galvanized steel
Tensile strength: σb≤600Mpa
Yield point: σs≤315MPa
0.8 - 4.0 x φ 25.4 - 89mm, ID508mm OD1800mm, 4.5T
Finished Pipes

Round pipe size: 0.8 - 4.0 x φ 25.4 - 89mm.
Square, rectangular pipe size:

20×20mm~70×70mm * 0.8mm~3.0mm

15×30mm~80×60mm * 0.8mm~3.0mm(a:b≤2:1)
Producing length: 4~10m (can be designed by customer request)
Cutting length precision: ±3mm (by hot friction computer saw)

Machine Parameters
One mandrel Decoiler, hydraulic expansion, air brake
Shear & butt welding device, automatic TIG welding
Horizontal spiral accumulator, Φ5m, 200m/min feeding, 45KW

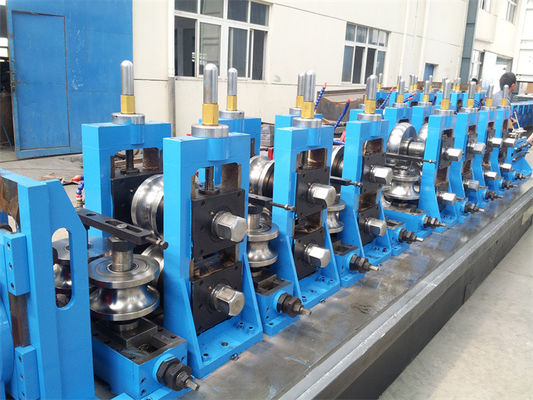

Forming & Sizing unit, 132KW x 2 DC, 7+5 horizontal rollers, 8+5 vertical rolls, seam guide, 3 rolls squeeze rolls
Hot friction flying saw,Φ600×70×3.0 saw blade, 52KW
Run out table 11m (one side),3KW
350KW Solid state HF welder, 1 set
Rollers,according to customers pipe sizes
Total installation power: 750KW
Line speed: 30-90m/min

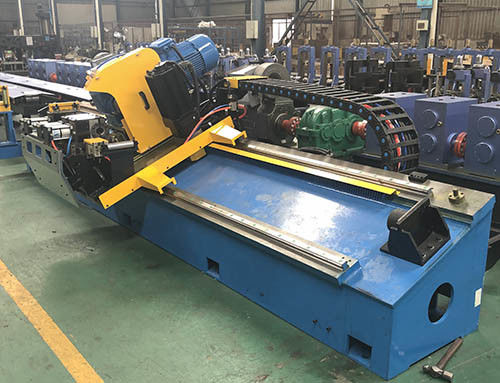

HG76 Cold Saw Specification:

Pipe thickness: 1.2~3.5mm  Cutting length: 4~8m  Cutting precision: ±2 mm

Burrs: Max 0.2mm, Saw blade size: OD650mm×ID50mm×3.0~3.5mm

Hydraulic clamps, 15KW YASKAWA servo track motor, 2.9KW servo feeding motor, 15KW blade turning motor.

Cutting speed: max 100m/min



ERW Pipe Machines Specification:

Model Pipe size HF welder (KW) Motor power(KW) Speed (m/min)
Фmm x mm
HG16 Ф(7-20) x (0.2-0.5) 60 22 80-140
HG25 Ф(8-32)x(0.35-1.3) 100 45 70-130
HG32 Ф(15-50) x (0.6-2.0) 150 110 60-120
HG50 Ф(20-63)x(0.8-2.5) 200 160 50-100
HG63 Ф(20-76)x(0.8-3.0) 250 200 30-90
HG76 Ф(25-80) x (1.2-4.0) 300 110x2 30-80
HG89 Ф(32-102)x(1.5-4.5) 300 132 x 2 30-80
HG114 Ф(38-127) x (1.5-4.5) 300 160 x 2 30-70
HG125 Ф(50-165)x(2.0-5.0) 400 185x2 20-60
HG165 Ф(76-165)x(2.0-6.0) 600 200x2 15-50
