6Hi Leveler Trapezoidal Sheet Blanking Line SUS Stainless Steel 0.3 - 3 X 1650

6Hi Leveler Trapezoidal Sheet Blanking Line SUS Stainless Steel 0.3 - 3 X 1650
6Hi Leveler Trapezoidal Sheet Blanking Line SUS Stainless Steel 0.3 - 3 X 1650 6Hi Leveler Trapezoidal Sheet Blanking Line SUS Stainless Steel 0.3 - 3 X 1650 6Hi Leveler Trapezoidal Sheet Blanking Line SUS Stainless Steel 0.3 - 3 X 1650

Large Image :  6Hi Leveler Trapezoidal Sheet Blanking Line SUS Stainless Steel 0.3 - 3 X 1650

Product Details:
Place of Origin: Wuxi, China
Brand Name: Jinye
Model Number: Blanking (0.3-3) x 1650
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Packaging Details: 40HC x 4
Delivery Time: 120-180days
Payment Terms: T/T, L/C

6Hi Leveler Trapezoidal Sheet Blanking Line SUS Stainless Steel 0.3 - 3 X 1650

Description
Name: 6Hi Leveler Trapezoidal Sheet Blanking Line Sheet Material: Stainless Steel 304,, 316, Zinc-nickle Alloy
Sheet Thickness: 0.3-3mm Sheet Width: 500-1650mm
Coil ID: 508mm, 610mm Coil OD: 1600mm
Coil Weight: 15T Cutting Speed: 100pcs Per Minute
Cutting Length: 200-3000mm Angle Within 30degree Cutting Style: Swaying Shear
Leveler: 6hi Servo Adjust Total Power: 250KW
Land Area: 30m X 8m Stacker: Double Stackers
Application: Automobiles Feeding Direction: Customer Decides
Highlight:

0.3 Blanking Line

,

SUS Stainless Steel Blanking Line

,

3 X 1650 Blanking Line

6Hi Leveler Trapezoidal Sheet Blanking Line SUS Stainless Steel 0.3 - 3 X 1650



Rotary Shear Fly cut to length line, made by our company, is high speed high precision, esp. suitable for thin sheet short sheet metal cutting:

  • Fly cutting is suitable for thin Sheet coil long length (thousands of meters) cutting.
  • Fly cutting frequency can be up to 150times/min. Line speed 80 -100m/min
  • Short sheets cutting means high frequency continuous cutting high productivity.
  • High precision 6High leveler, film laminator, dual stackers are high production arrangement.
  • The fly cutting line for 0.3 -3.0mm x 1000mmW x 200 -3000mmL.
  • The leveling rollers adjusting is automatic by servo pressing backup rollers.

Besides fly shear cut to length lines, we also design and make swaying shear cut to length line to make trapezoidal sheets, more exactly is kind of blanking line.

Parameters:

Input Raw Material and Finished Product
Raw Materials Hot / Cold Rolled  stainless steel
Mechanical Property Tensile Strength σb≤800Mpa, σs≤550Mpa
Thickness 0.2-2.0mm, 0.3-3.0mm
Width 200mm-1000mm(Max)
Coil O.D. ≤Φ1500,1800mm
Coil I.D. Φ508mm (enlarge to Φ610mm with gaskets)
Max Weight 10tons, 15tons, 20 tons
Sheet length 200 - 3000mm, angle within 30degree
Length Tolerance L 0 = 1M±0.3 mm (uniform velocity)
L 0 = 1 M±0.5 mm (acceleration / deceleration)
Diagonal Length Tolerance L 1 = 1M±0.5mm
Stacking Height 650mm Max (wooden support approx 150mm high)
Max Stacking Weight 5 tons



  Swaying Shear CTL Parameters
1 Linear Speed 0-80 m/min
2 Threading Speed 0-15 m/min
3 Power Supply 380V / 50Hz / 3PH
4 Installed Power About 250KW
5 Cross Cutting Way rotary shear base, mechanic shear
each pair of trapezoidal sheets output
6 Control Way AC, CNC and PLC Control
7 Drive Motor a. Decoiling Motor: AC 30KW b. Leveling Motor: AC 132KW

c. swaying Shears:

AC 55KW



Composition:

  Item Qty
1 Loading Station 1
2 Loading Car 1
3 Decoiler 1
4 Precise Leveling Machine (6 Hi 21 Rollers) 1
5 Servo Feeding Device (Include Laminating Device) 1
6 Swaying trapezoid Cutter 1
7 Three Stages Belt Conveyor 1
8 1st Automatic sheets stacker 1
9 2nd Automatic stacker 1
10 Hydraulic System 1
11 Pneumatic System 1
12 Lubricating System 1
13 Electrical System 1



Characters:

  1. The line is to make certain inclined degree of trapezoidal steel plates by leveling and swaying shear, composed of uncoiler, leveler, swaying shear, stacker, etc with auxiliary functions of coil loading, length measuring, film coating, sheets delivering and output,etc.
  2. The working process is uncoiling, 21roller 6hi leveling, length measuring, sway shear cutting, the cut sheets go to the first stacker until number of stacking reaches preset number, then transfer to second stacker. While the sheets are going to second stacker, output the sheets on first lifting table by roll table and then first stacker return to work state. This way, one steel coil cutting can be continuously going on.
  3. The working process is automatic, adopting PLC servo control and HMI. On touch screen, can set sheet sizes, number of pcs, calculate sheets weight, moreover, has functions: set feeding speed,set feeding length, set number of feeding, interchange between manual and auto, auto start, auto stop, pause, counter zero, fwd-rwd button, shear up-down, faults alarm, etc.
  4. The chrome coated rollers, PU rollers, blower, etc play role in protecting sheet surface from being hurt.
  5. Except for manual threading, all in auto working.

6Hi Leveler Trapezoidal Sheet Blanking Line SUS Stainless Steel 0.3 - 3 X 1650 06Hi Leveler Trapezoidal Sheet Blanking Line SUS Stainless Steel 0.3 - 3 X 1650 1

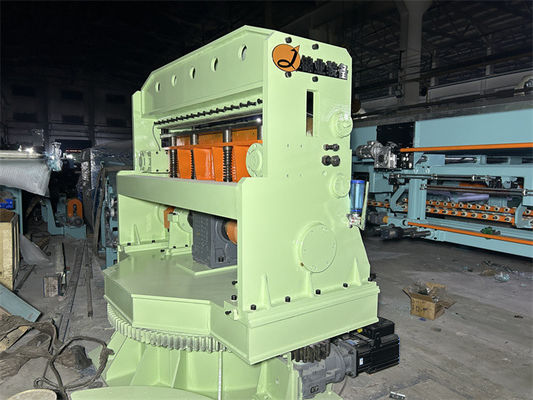

6Hi Leveler Trapezoidal Sheet Blanking Line SUS Stainless Steel 0.3 - 3 X 1650 2
