Super Speed Precision SUS Steel Coil Slitting Lines Machine 3 X 1600 3mm

Large Image : Super Speed Precision SUS Steel Coil Slitting Lines Machine 3 X 1600 3mm

Product Details:

Place of Origin:	Wuxi, China
Brand Name:	Jinye
Model Number:	SUS-3 x 1600

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Delivery Time:	120-150Days
Payment Terms:	T/T
Supply Ability:	10Sets per year

Contact Now

Super Speed Precision SUS Steel Coil Slitting Lines Machine 3 X 1600 3mm

Description

Name:	Precision Super Speed SUS Steel Coil Slitting Lines Machine	Metal Sheet:	SUS Steel Coil
Metal Thickness:	0.3-3mm	Coil Width:	600 - 1600mm
Coil Weight:	15T, 20T	Number Of Slitting:	Max 30strips
Slitter Arbor:	240mm	Recoiler:	508mm
Total Power:	450KW	Line Speed:	200m/min
Special Function:	Paper Peeling, Film Coating	Slitting Tools:	Knife, Spacer, Separator
Highlight:	SUS Precision Steel Coil Slitting Lines , 3 x 1600 Precision Coil Slitting Lines , 3mm Precision Coil Slitting Lines

Precision Super Speed SUS Steel Coil Slitting Lines Machine 3 X 1600

Process:

Coil saddle, Coil-loading——Double mandrel uncoiling——Coil-head-feeding, press & shoveling——Double-roller pinch feeding, five-roller leveler——End-cutting----transmission roll table ---- Side guide----Disc slitting——Scrap reeling——Hole Accumulator—— Pre-separator/Tensioner/post shear/length-measuring roller——Coils press & separator/recoiler —— Coils-discharging——Hydraulic control——Electric control

Parameters:

	Description and Specification
Raw Material	AISI 409, AISI 430, AISI 201, AISI 304, AISI 310, AISI 316, AISI 321, AISI 904, AISI 2205 and etc Tensile strength σ_b≤800N/mm², yield strength ≤450N/mm² 0.3-3.0 x 300-1600mm x 15T coils
Finished product	3mm thickness, max 12 strips; ≤1.5mm,max 30strips Minimum 30mm width, Φ508mm, Φ1600mm, Φ508mm inner diameter, Φ1600mm outer diameter, max 15T weight
Slitting Machine	active slitting or pull slitting, DC drive Slitting speed: max 200m/min. Threading speed: 0-15m/min Total 450KW, land area 30m x 10m
Slitting precision	Slit widths tolerance≦0.10mm, Slit camber≦0.5mm/m for strip of wider than 300mm, ≦1.0mm/m for strip of <300mm Slit burrs ≦0.05mm Recoil staggering ≦±0.5mm Recoil turriform ≦±2.0mm

Composition

	Characters and Parameters
Coil Cars	Welding boy, V saddle, four pillar guide, hydraulic up-down, motor drive walking
Uncoiler	Single expansion teeth staggering mandrel, AC motor gear transmission uncoiling back tension, hydraulic central aligning, paper peeling
Coil head opener	Snubber roll, straightening roll and shoveling plate
Preleveler	Double pinch rolls and 2 over 3 leveler to straighten coil plate, and a hydraulic shear
Loop pit	One pit situated after preleveler and before slitter, the other pit after slitter and before tension, to synchronize steel strip
Side guide	To ensure steel strip in center of the line before slitting
Slitter	Double arbors, the upper arbor up-down adjusting, motor and gearbox drive universal joints, need disc knife, spacers, PU rubber, bakelite strip plates tooling.
Scrap winder	Double winders at ear of the line, either horizontal or vertical, AC frequency controlled, with strips checking table and pressing roller
Tensioner	Felt press tension, encoding deflector roller
Separators	Twice separators before tension, Hydraulic press separator frame on recoiler
Recoiler	hydraulic expansion recoil mandrel, motor and gearbox drive, hydraulic coils pusher, swaying door support

Optional:

Double slitters for fast change: each slitter is movable and can exchange with each other fast. The slitter is composed of fixed stand, movable stand, double knife shafts, upper shaft press down mechanism, etc. The movable stand is at operation side, walk out on linear rails to let operator change knives.The two slitters crosswise move on rails from online position to exchange platform or from platform back to online, the platform moves longitudinally to exchange two slitters positions.

Slitting tools:

knife: D350×d220×T15mm, H13K, HRC59-62

Separator: Φ200×Φ100×3mm, 65Mn quenching treatment

Separate nylon: Φ140×Φ100

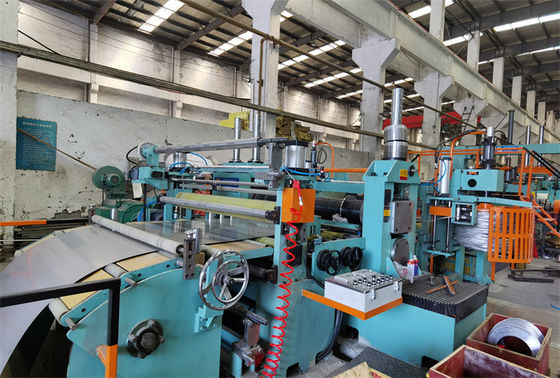

Super Speed Precision SUS Steel Coil Slitting Lines Machine 3 X 1600 3mm 0

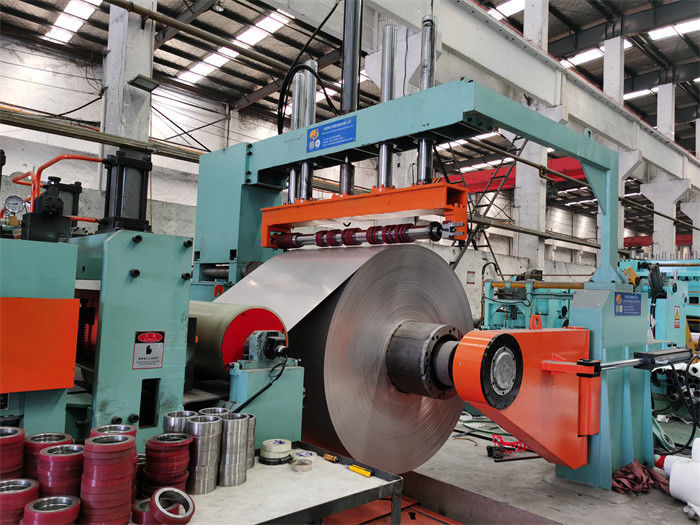

Super Speed Precision SUS Steel Coil Slitting Lines Machine 3 X 1600 3mm 1
