Thick Gauge Stainless Steel Cut To Length Line 2-16 X 2000 Double Levelers With Edge Trimming

Thick Gauge Stainless Steel Cut To Length Line 2-16 X 2000 Double Levelers With Edge Trimming

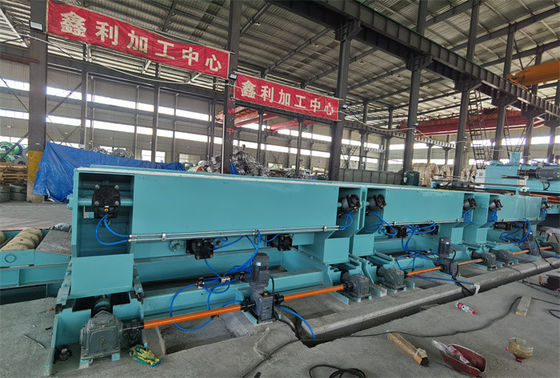

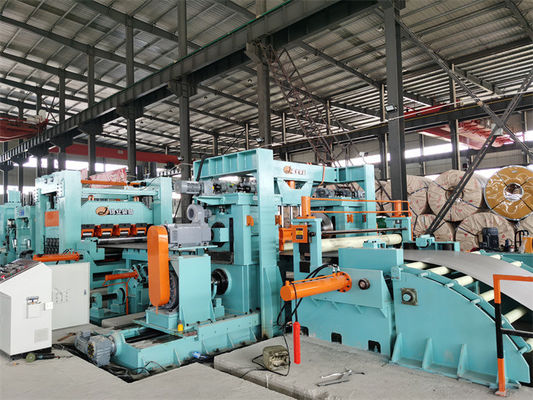

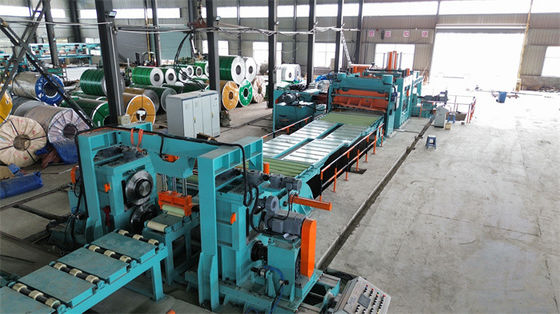

Thick Gauge Stainless Steel Cut To Length Line is high precision heavy duty cut to length, its cost is much more than normal cut to length line budget. 2-16mm thickness range requires two levelers, stand beside each other, one leveler for 2-6mm, the other for 4-16mm. Moreover, the stainless steel sheet cutting line has edge trimming function, film coating, automatic stacking charaters, we are experienced in the thick stainless steel sheet cut to length line, can guide you to see running line in our customer plant.

Stainless steel, such as SUS200, SUS300, SUS400 series, compared with normal carbon steel Yield strength ≤270Mpa Tensile strength≤465Mpa, stainless steel sheet strength Yield strength ≤500Mpa Tensile strength≤800Mpa


Composition and Parameters:

SUS201 , SUS304 , SUS410 Stainless Steel Specification for reference:


Characters:


1.Uncoiler / Decoiler

heavy cut to length line handle heavy steel coils of heavy gauge. the uncoiler has double mandrels and strong sliding bases.

Each mandrel has three steps, the opening and closing of two mandrels by hydraulic cylinders.

Back tension mechanism installed on top of uncoiler base, to ensure uncoiling stability.

2. Portal frame coil head opener

Portal frame is very strong, with snubber press roller ,straightening roller on top of the frame.
the hydraulic snubber roll press on top of steel coil, and its pressing-down angle is adjustable

Straightening roller can slide forward backward to track strip head and straighten it.

Shoveling plate installed on preleveler support the coil head while straighten roller press coil head.

3. first 2+5 pre leveler

the roller is huge and strong,reliefing internal stress of steel coil, roller surface is hardened and chrome coated

To relief the uncoiling bending stress to relaxed state.

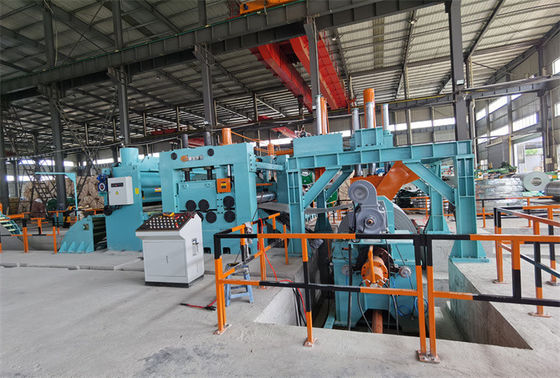

4. Edge trimming: before and after the trimming area one accumulating pit available, the edge trimming is two cantilever disc slitter arms open and close as per sheet width, with press roller to keep the main sheet not flutter, then two edge scrap rewinders.

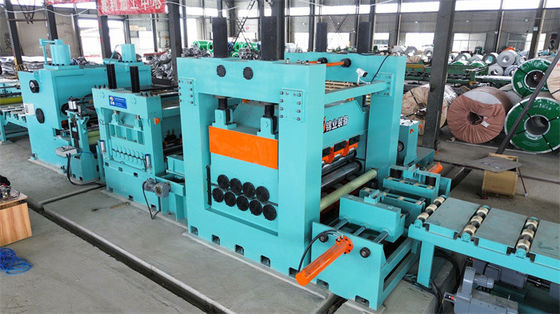

5. Heavy duty leveler(Double levelers)

number of heavy duty leveler will be 13pcs, 11pcs or 9pcs, diameter of rollers will be 180mm -230mm -300mm,
The gap and angle of upper rollers and lower rollers can be adjusted.

No stop leveling, the leveler continuously working without pressing steel plate while synchro cutting, this is good for protecting steel plate surface without leaving roller mark

When shear is stop cutting, the leveler is clutched and stopped under encoder measuring.

 Big leveler sit before small leveler, according to sheet thickness to choose the suitable leveler to output best flatness sheet.

6. Hydraulic shear

Shear: strong frame, strong hydraulic station for shearing, pendulum shearing type, stop cutting under encoder measuring.

7. Automatic stacker

 Bomb hatch stacking, receive each sheet on roller arm, open the two arms to release the sheet fall down on lifting table.

Roll table deliver the piled sheets outward to pack.

8. Automatic control, the whole process is under PLC control in auto mode.
