Medium Gauge Steel Flying Cut To Length Line Shear Continuous Cut To Length Line 2-8x1600

Medium Gauge Steel Flying Shear Continuous Cut To Length Line (2-8 x 1600)

Medium Gauge steel coil cut to length line has different options of configurations:

Stop-go leveling cutting stacking(servo feeding or encoding measure)

Stop leveling for cutting to length, the CTL is complete composition and compact layout, saving space and foundation making cost, while the leveler roll mark will be on sheet, this shortcoming may be not acceptable to high precision sheets.

Continuous leveling cutting stacking (servo feeding hydraulic cutting)

Continuous leveling cutting to length needs longer space, gives higher speed, more costly control system, no roller mark on sheets, is becoming a popular option to sheet cutting plants.

Rich experiences in steel plate cut to length lines, we supply both stop-start shear automatic cut to length line and moving shear cut to length line, the former is often seen in heavy gauge steel plate processing plate, the latter moving shear cutting to length is becoming more competitive in medium gauge sheets for the higher productivity.

Features of continuous moving shear:

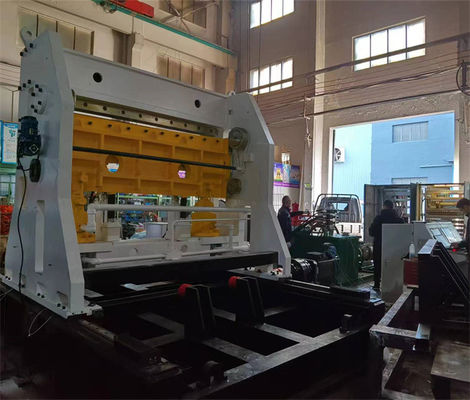

• The shear has a base where shear moves on linear rails of the base, servo motor drives the shear to move forward synchrously with coming plate, meanwhile hydraulic cut sheet to length.
• Roll table conveys the cut sheet forward and pinch feeding onto automatic stacker.

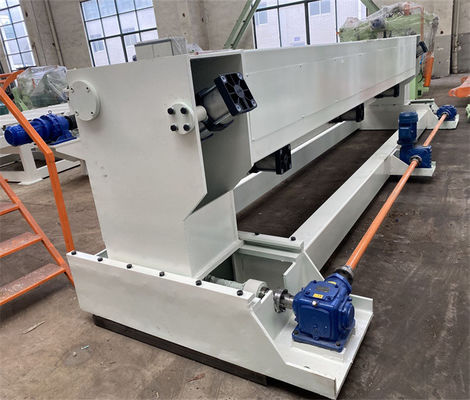

• Automatic stacker: roller arms receive the sheet and pneumatic release the sheet off onto roll table, the roll table hydraulic up down move until the stacking height, roll table transmit the stacked sheets outward.

Parameters:

Composition:
