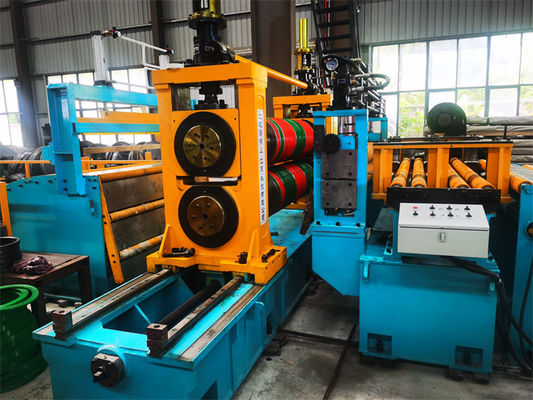

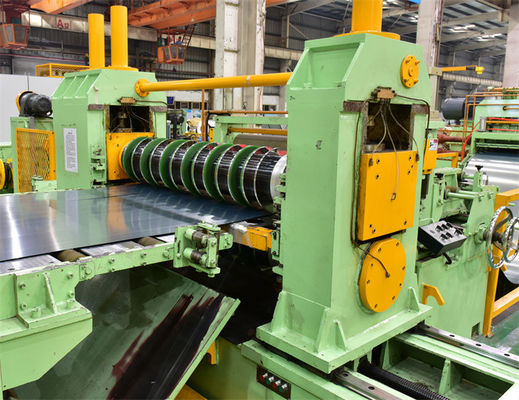

High Accuracy High Speed Sheet Steel Slitting Line With Automatic Twin Slitters

High Accuracy Sheet Steel Slitting Line With Fast Change Twin Slitters

Twin slitters are good solution for metal coil processing plants to make high production of slit coils, because twin slitters exchange with each other fast, only taking about 15minutes. Without twin slitters, skilled worker takes 1-2 hours to arrange and adjust slitting knives and spacers on slitter shafts of online slitter, the whole slitting line has to stop and wait for the slitter is ready with newly arranged slitting tools. If twin slitters, during this period, another coil can be slitted.

Fast change process:

1. unlock universal joints, open hydraulic press on online slitter feet.

2. Motorized online slitter to walk out to exchange platform.

3. motorized moving the platform to let the other slitter facing to online position.

4. motorized moving the other slitter online

5. hydraulic press feet of the other slitter, connect drive shaft and lock.

6. before changing, slitting tools have been installed and adjusted.

We supplied

one set 3x1250 double slitters line to Philippines

one set 4x1850 double slitters line to South Africa,

One set 3 x 1600 double slitters slitting line to Indonesia

one set 3x2000 double slitting heads to Vietnam,

one set 6x1700 double slitting heads to Russia,

One set 6x2000 twin slitters slitting machine to India

One set 8x2000 twin slitters slitting line to Algeria

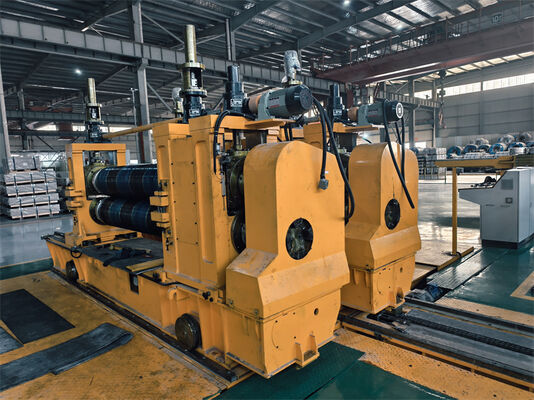

Our twin slitters (double slitters) design give very excellent performances:

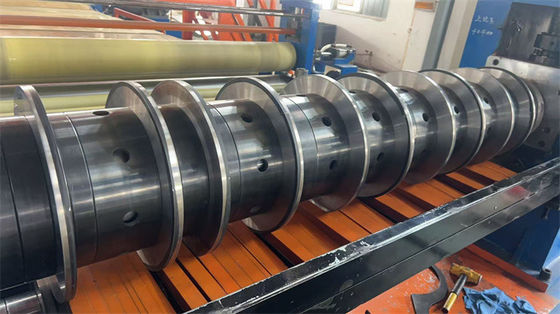

• One slitter head is working on line, workers arrange disc knives and spacers on the other slitter.
• After arrangement, automatically test knife gaps to be proper.
• Exchange double slitters on exchange platform in Jog mode
• This process takes only a quarter time.

When customers want to slit a big gauge range of steel coils, like 0.3-6mm, 0.4-8mm, we make two slitters bearing different slitting duty, one slitter is for slitting thin coil sheets, the other slitter is bigger for slitting thicker coil plates.

We supplied 6x1600 double slitters, with one 0.3-3mm slitting machine and the other 2-6mm slitting machine. Customers are very satisfied with the design, no matter what thickness coil to slit, he will get good slitting result.

The two slitters can be driven by one drive motor and transmission, or each slitter has one motor and transmission whose slitter head drives out and return back on rails, with no need of one exchange platform. But, one exchange platform is a must when more than two slitters are needed for one slitting line.

Composition and Parameters:
