Aluminum Coil Sheet Fly Shear Cut To Length Lines 300-1600mm Width

Description
Name: Fly Shear Cutting To Length Material: Aluminum Coil Sheet
Sheet Thickness: 0.3-3mm Sheet Width: 300-1600mm
Sheet Length: 500-4000mm Cutting Speed: 25pcs/min X 2m
Coil ID: 508mm Coil Weight: Max 8T
Length Tolerance: +/-0.5mm Flatness: 1mm/m2
Highlight:

Fly Shear Cut To Length Lines

,

Aluminum Coil Sheet cut to length lines

,

Aluminum coil cut to length machine

High Speed Steel Sheet Cut To Length Line Light Gauge



Aluminum sheets in coils usually is softer in body and smooth in surface, can be pure aluminum or aluminum alloy. most frequently 1xxx, 3xxx, 5xxx, 7xxx series aluminum sheets. Yield strength ≥65Mpa, tensile strength 170-305Mpa Coil sheets can be full soft(O state), semi hard(H24), full hard(H18).



Aluminum coil sheet specification

aluminum coil sheet thickness width weight density
0.2-6mm 200-2000mm 5-6T 2.71g/m3



Aluminium sheet properties:

category purity grade usage
1xxx series Al 99% 1050, 1060,1100 common
2xxx Cu (3-5%) 2A16(LY16), 2A06(LY6) aviation
3xxx Mn (1.0-1.5%) 3003,3004,3005,3A02, 3A21 common
5xxx Mg(3-5%) 5052.5005.5083.6754. 5A05 common, aviation
7xxx Zn 7075 aviation materials

Characters:

According to the aluminum coil sheet characters, the cut to length line must be fly cutting type

  1. non stop continuously flatten aluminum sheet without roll mark
  2. servo pinch feeding will hurt sheet surface, fly cutting doesn't need that
  3. stacking system receives sheet piece by piece without hurting it.
  4. 6 hi leveling machine suitable for leveling soft aluminum sheets in high precision
  5. automatic cantilever uncoiler is efficient and precise.

Composition

  • 1.Coil storing saddle, store one or two aluminum coils
  • 2.Coil loading car. take a coil from saddle and load a coil to uncoiler
  • 3.Single mandrel uncoiler: hydraulic expansion mandrel for standard Ф508mm, hydraulic centralize adjusting, with paper peeler.
  • 4.Coil head snubber roller, peeler shoveling plate: to open coill head from uncoiler and send into pinch feeder
  • 5.2+17 Roller Leveler: 6Hi, 2layers work rollers, 2layers middle rollers and 2layers backup rollers, back tension is beneficial between leveler and uncoiler.
  • 6.Pit Accumulator or transmission roll table: pit accumulate sheet in pit to ensure leveler continuous working, transmission roll table is also workable in synchronous fly shearing.
  • 7. Pairs of double rollers, with servo Length Measure (and Film Laminating): Servo length measuring(pair of pinch rollers or 2+5+2 rollers structure driven by servo motor and controller), with PU coated pinch rollers for film laminating
  • 8.Fly shear, with screw rod guide: cutting frequency is relative to sheet length, hydraulic cutting from down to up.
  • 9.Belt Conveyor: convey finished sheets to stacker
  • 10.Stacker: receiving sheet piece by piece and piling up on lifting table, stacking load 5T.
  • 11.Sheets Car, output roll table: deliver sheets out, then packing. can be two cars, one working and the other waiting.
  • 12.Hydraulic system: 11KW gear pump provides 12Mpa pressure.
  • 13.Electric Control System: One electric cabinet and two operator panels(one console for servo measuring, PLC, HMI and stacking, one for uncoiling and leveling) with complete and safe functions

Parameters:

Item Data Item data
material Aluminum coil leveling roller Ф70mm, 17pcs
sheet width 500-1600 leveling motor 75KW
sheet thickness 0.3-3.0 Servo length fixing  7.5KW
coil weight 15T stacking system one set
strip length 500-4000m film laminating available
line speed 80m/min Electric control Siemens PLC
time of cutting per coil 40-120mins type of leveler 6hi



Layout process:

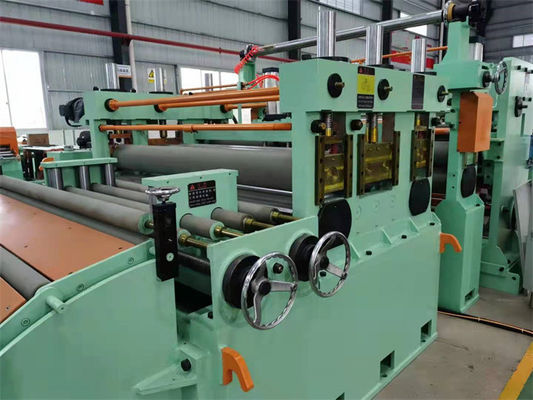

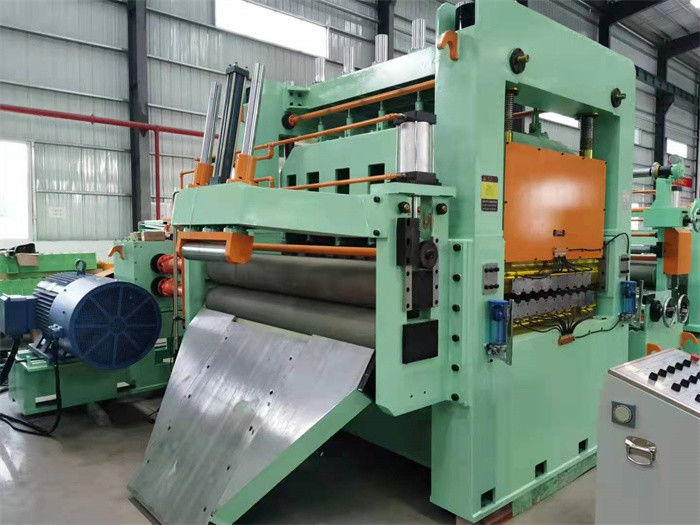

Photos:

Aluminum Coil Sheet Fly Shear Cut To Length Lines 300-1600mm Width 0Aluminum Coil Sheet Fly Shear Cut To Length Lines 300-1600mm Width 1
