Super Precision Super Speed Slitting Line for High Tensile Medium Carbon Steel sheet

Super Precision Super Speed Slitting Line for High Tensile Medium Carbon Steel sheet
Basic Properties
country of origin
Wuxi, China
Brand Name
Jinye
certificate
ISO, CE
PRODUCT MODEL
0.15-2.0 x 1000
Trading Properties
MOQ
1set
Packing
Machine in nude, parts in box
period for dispatch
120 -180days
payment method
L/C, T/T
Supply Capacity
3Sets per month

Product Details

Highlight:

medium carbon steel sheet slitting line

,

high tensile slitting line

,

Super Speed Precision Slitting Line

Product Name: Super Precision Super Speed Slitting Line For High Tensile Medium Carbon Steel Sheet
Sheet Material: High Tensile Medium High Carbon Steel
Sheet Width: 200-1000mm
Sheet Thickness: 0.15-2.0mm
Baby Strips: 6mm To 100mm
Number Of Slitting: 40pcs Max
Slitting Speed: 200m/min
Coil Weight: 10T, 15T
Recoil Diameter: 300mm, 400mm, 508mm
Discharge Turnstile: Available
Scraps Winding: Vertical Type Online
Product Brief
Super Precision Super Speed Slitting Line for High Tensile Medium Carbon Steel sheet Introduction The slitter line is to slit and rewind medium high carbon steel, stainless steel 304,321,316 & 200, electric steel,etc. Take use of AC VVF drives, PLC control to keep the whole line in synchronization. ...
Product Description

Super Precision Super Speed Slitting Line for High Tensile Medium Carbon Steel sheet



Introduction



The slitter line is to slit and rewind medium high carbon steel, stainless steel 304,321,316 & 200, electric steel,etc.

Take use of AC VVF drives, PLC control to keep the whole line in synchronization. Easy operation, high precision, high quality slitting and recoiling, stable tension. The slitting speed can be high up to 200m/min, slitting precision within 0.05mm width, number of slitting can be up to max 40strips, minimum strip thickness below 10mm take use of special slitting tools.

  • Slitter arbors: alloy steel forging, whole tempering, surface high frequency hardened, grinding, hard chrome coating, fine polishing

  • φ408, Ф508mm roundness mandrel
  • Main shaft 40Cr forging, through tempering, fine grinding and milling
  • Gears 42CrMo forging, tempering, high frequency teeth hardening, teeth grinding
  • Camber segment plates are medium carbon alloy steel, tempering, fine machining, surface quenching, hard chrome coating
  • Internal wedge sliders QT600-3, normalizing QT600-3,
  • Press block of gripper: 42CrMo forging, fine machining, quenching
  • Press separating shafts surface hard chrome coating
  • Gearbox is good quality steel welding assembly, annealing treatment, fine grinding, fine poring.





Composition:

  • coil preparing saddle
  • Paper winder
  • coil loading car
  • uncoiler with overarm press roller
  • 2+3 pinch rolls and leveler with shear
  • first looping
  • side guide
  • disc slitter
  • guide table
  • vertical scrap winder
  • transmission table
  • second looping
  • tension station with strips separator and shear
  • recoiler with press separator
  • coils unloading car
  • Paper unwinder
  • hydraulic system
  • pneumatic system
  • lubrication system
  • electric control system



Parameters:

Input Material Finished strips Machine Specification

l material of input steel coils:

l medium high carbon steel, stainless steel 304,321,316 & 200, electric steel,

l Tensile strength:σb≤900MPa;

l Yield strength:σs≤650MPa

l Sheet thickness:0.15~2.0mm

l Sheet width:300~1000mm

l Coil inner diameter:φ408mm(enlarge to φ508mm)

l Coil outer diameter:φ2000mm(Max)

l Coil weight max:15T



  • Coil Inner diameter:φ408-508mm
  • Coil outer diameter:Φ2000mm
  • Coil weight:15T(Max)
  • Minimum finished strip thickness:6mm
  • Slit widths tolerance:≤0.05
  • Max burrs:≤0.05
  • Rewinding layer deviation:≤1.5
  • Surface: flat, without defects like flanging, concavity, etc.
  • Number of slitting:
  • No more than 30strips
  • Coil inner diameter 408mm, thickness 0.15-0.8mm width 6mm baby strips, rewinding outer diameter no more than 900mm

Line speed:0-200m/min

l Total power:300KW

uncoiler:30KW

slitter:110KW

Scrap winder:AC4KW x 2

recoiler:132KW

Hydraulic station:7.5KW

Hydraulic for tension:2.2KW

l Cutting type: active slitting

l Recoiling type: recoil from bottom

l Control mode: PLC, touch screen, VVF drive

l Hydraulic system:

l System pressure 14Mpa, work pressure 8-10Mpa

l Compressed air pressure:0.5~0.7MPa.

l Occupation area: 6m width, 20m length

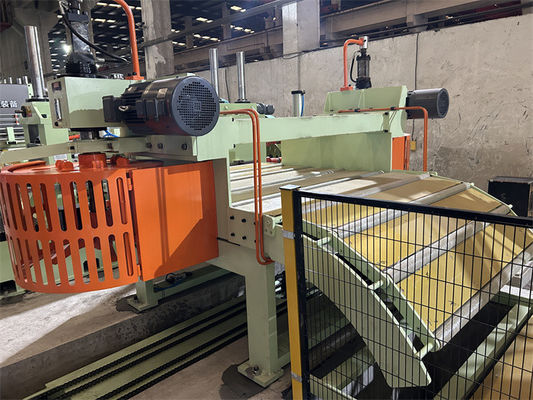

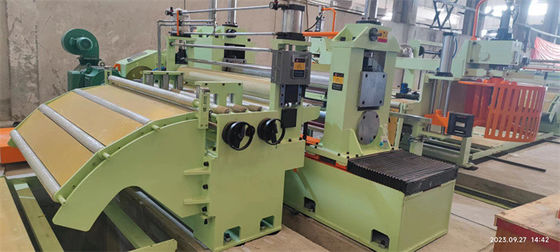

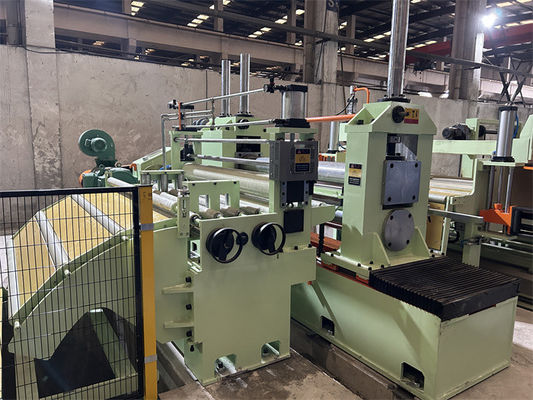

Super Precision Super Speed Slitting Line for High Tensile Medium Carbon Steel sheetSuper Precision Super Speed Slitting Line for High Tensile Medium Carbon Steel sheetSuper Precision Super Speed Slitting Line for High Tensile Medium Carbon Steel sheet
