stainless Steel Sheet Servo Cut To Length Line With Edge Trimmer

Large Image : stainless Steel Sheet Servo Cut To Length Line With Edge Trimmer

Product Details:

Place of Origin:	Wuxi, China
Brand Name:	Jinye
Certification:	ISO
Model Number:	JY(0.3-3) x 1650

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Packaging Details:	4 X 40HC
Delivery Time:	120-180days
Payment Terms:	L/C, T/T
Supply Ability:	15lines per year

Contact Now

stainless Steel Sheet Servo Cut To Length Line With Edge Trimmer

Description

Name:	Stainless Steel Sheet Servo Cut To Length Line	Material:	Stainless Steel 304, 316
Sheet Thickness:	0.3-3mm	Sheet Width:	500-1650mm
Sheet Length:	500-6000mm	Cutting Speed:	30pcs/min X 2m
Coil ID:	508mm	Coil Weight:	20T
Length Tolerance:	+/-0.5mm	Flatness:	1mm/m2
Stackers:	Double	Cutting:	Servo Drive
Leveler:	6 High	Uncoiler:	Hydraulic Single Mandrel
Highlight:	ss cut to length line machine , sheet cut to length line machine , 5000mm cut to length line machine

Stainless Steel Sheet Servo Cut To Length Line With Edge Trimmer

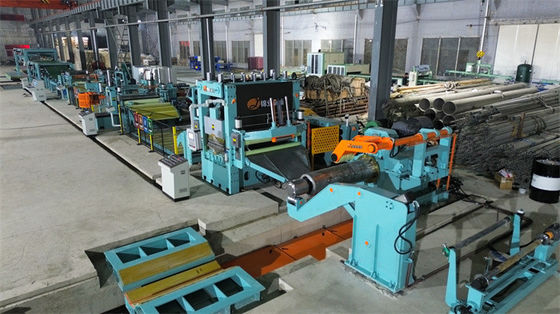

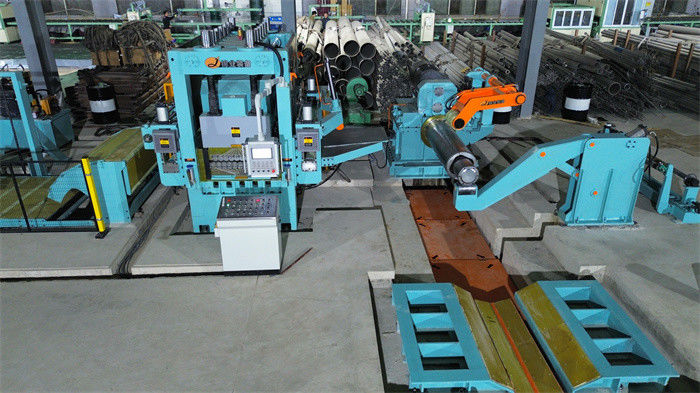

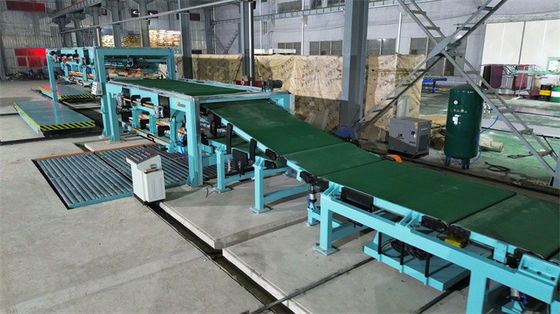

Servo Cut to length line is a production line of cutting steel coil to length after uncoiling and leveling , composed of uncoiler ,leveler , NC length feeder , high speed servo shear , double stackers , etc .After uncoiling , the steel sheet pass through 6high leveler , sensor controls looping , length feeder measure sheet length and controls shear to cut sheet to set length; The belt conveyor delivers the cut sheet to first stacker the scissor table automatically comes down with the piled sheets height increasing on the table , when the sheets reach set quantity, push button on panel to switch the sheet conveying to second stacker . Press button to let first scissor table lower to bottom , then output roll table deliver the sheets out to operation side . This way, one steel coil cutting is continuous without stop.

Composition

No.	Composition	Qty
1	Coil preparation saddle	1pair
2	Coil loading car	1set
4	Uncoiler+Coil snubber roller + paper winder	1set
5	6hi leveler+ work rolls cleaner	1set
6	Cascade roll loop1	1set
7	side guide	1set
8	NC Servo feeder
9	Dual sides film /electrostatic paper laminator
10	Servo shear	1set
11	convey belt + waste sheet car	1set
11	Dual stackers	1set
12	Output roll tables	1set
13	Hydraulic system	1set
14	Pneumatic system	1set
15	Electric control system	1set

Parameters

0.4-3 x 1600 servo cut to length line

Input materials:

No.	Item	Parameters
1	Material	HR,CR, GI steel
		Stainless steel below 1.5mm
2	coil plate thickness	0.4-3.0mm

3	Coil plate width	300- 1600mm

4	Coil outer diameter	≤Φ2000mm

5	Coil inner diameter	Φ508mm Φ610mm

6	Max coil weight	25T

7	Mechanic properties	Mild steel,
		Yield strength σb≤350N/mm2 Tensile strength σs≤550N/mm2
		Yield strength σb≤510N/mm2 Tensile strength σs≤780N/mm2

Machine performance:

No.	Item	Parameters
1	Cutting length	Stacker1, 300-3000mm/ stacker2, 400-6000mm
2	Cutting length tolerance	L=2m≤±0.3mm(2.0mm)
3	Diagonal length tolerance	L=2m≤±0.5mm(2.0mm)
4	leveling precision	≤±1.2mm/m2
4	leveling precision	≤±1.2mm/m2
5	Stacking height	Include cushion wood 700mm, max 5T.
6	.Cutting burrs	Thickness ≤1 . 0mm , ≤0 . 03mm
6	.Cutting burrs	Above 1 . 0mm , burrs ≤ 3% of thickness
7	Stacking precision	Deviation between layers: ≤1.0mm in width, ≤1.5mm in length
7	Stacking precision	Deviation in stacking height ＜3mm for 500mm height
8	Cutting speed	0-60m/min
		Sheet length(mm)	cutting times(pcs/min)
		1000mm	50pcs
		2000mm	30pcs
		3000mm	20pcs
		4000mm	15pcs
		6000mm	10pcs
9	Total power	about 240KW

stainless Steel Sheet Servo Cut To Length Line With Edge Trimmer 0
