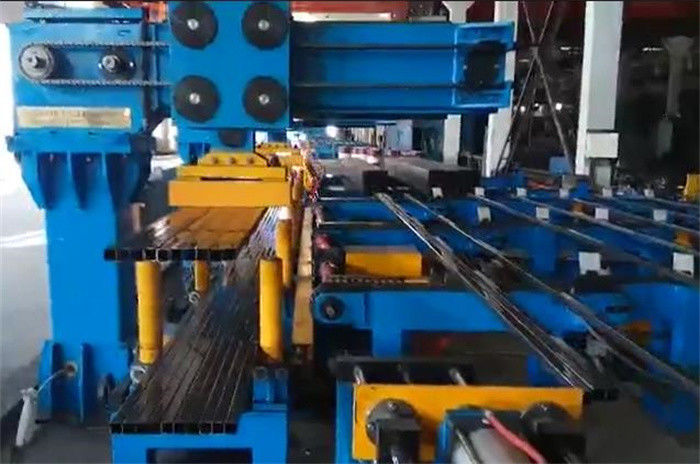

Fully Automatic Electromagnet Packing Machine for ERW Steel Pipe Making

Large Image : Fully Automatic Electromagnet Packing Machine for ERW Steel Pipe Making

Product Details:

Place of Origin:	Wuxi, China
Brand Name:	Jinye
Model Number:	Packing 219

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Packaging Details:	3 x 40HC
Delivery Time:	100-150Days
Payment Terms:	T/T

Contact Now

Fully Automatic Electromagnet Packing Machine for ERW Steel Pipe Making

Description

Name:	Automatic Electromagnet Packing Machine	Input:	Steel Pipes From ERW Pipe Mill
Output:	Packed Steel Pipes	Producing Speed:	15-25m/min
Land Area:	30m X 7m	Total Power:	70KW
Stacking:	Electromagnet Chuck	Pipe Diameter:	21 -219mm
Pipe Length:	4 -13m	Strapping:	Pneumatic
Highlight:	Fully Automatic Electromagnet Packing Machine , ERW Steel Pipe Packing Machine

Fully Automatic Electromagnet Packing Machine for ERW Steel Pipe Making

Model: 219 packing machine

- Round pipe ½” to 8” (Ф21.4-219.2mm)

- Square pipes ½” x ½” to 8” x 8”

- Rectangular pipes 1” x ½” to 8” x 4”

-- Pipe length: 4m to13m

With PVC or nylon protection to avoid pipe from being scratched.

Sr.	Pipe sizes	Speed	Pcs per holding
1	½” to 2”	25m/min	3pcs per magnet holding
2	2 ½” to 4”	20m/min	2pcs per holding
3	5” to 8”	15m/min	1pc per holding

Composed of packing system software in computer and mechanic packing equipments.

Computer packing system:

1. For many types of packing bundles are required, we arrange the operation display for convenient operation

for packing pattern, refer to ASTM, BS-EN, Austrian Standards

2. Fill data of each item on operation screen.

1)First page is categorized as per images bundle types, hexagon, square, diamond, etc.
2)Second page is categorized as per pipe diameters, sizes..
3)Third page is as per pipe pieces of each bundle.

3. With functions and standards:

·kind and easy to operate

·interlink

·Siemens touch screen

·Siemens PLC

·Electric cabinet, operator panel, wiring, connections comply with NEMA 12/IP55

Sr.	Unit	Qty
1	Pipe Grasping device	6Sets
2	Pipe Counting Device	1set
3	Layer delivering Device	6sets
4	Main Frames主体机架	1set
5	Electromagnet Stacking and Cross Moving device	6sets
6	Pipe ends arraying device	1set
7	Receiving basket	6sets
8	Cross moving cart	1set

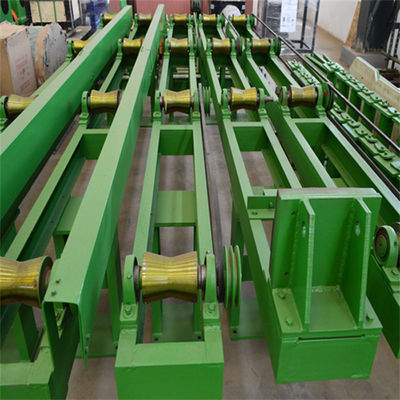

9	Bundle receiving Roller table	Two groups
10	Portable Pneumatic Strapping machine	1set
11	Cross Moving chains for bundles storing	5lines x 2sets
12	Electric control	1set
13	Installation accessories: anchor bolts, exclude iron pads, pipelines, electric wires and consumable parts.	1set

ERW Pipe Machines Specification:

Model	Pipe size	HF welder (KW)	Motor power(KW)	Speed (m/min)
Model	Фmm x mm	HF welder (KW)	Motor power(KW)	Speed (m/min)
HG16	Ф(7-20) x (0.2-0.5)	60	22	80-140
HG25	Ф(8-32)x(0.35-1.3)	100	45	70-130
HG32	Ф(15-50) x (0.6-2.0)	150	110	60-120
HG50	Ф(20-63)x(0.8-2.5)	200	160	50-100
HG63	Ф(20-76)x(0.8-3.0)	250	200	30-90
HG76	Ф(25-80) x (1.2-4.0)	300	110x2	30-80
HG89	Ф(32-102)x(1.5-4.5)	300	132 x 2	30-80
HG114	Ф(38-127) x (1.5-4.5)	300	160 x 2	30-70
HG125	Ф(50-165)x(2.0-5.0)	400	185x2	20-60
HG165	Ф(76-165)x(2.0-6.0)	600	200x2	15-50

Fully Automatic Electromagnet Packing Machine for ERW Steel Pipe Making 0
