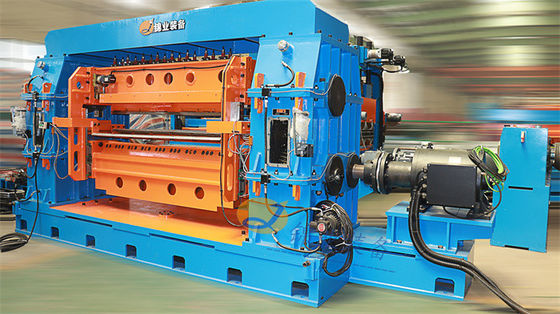

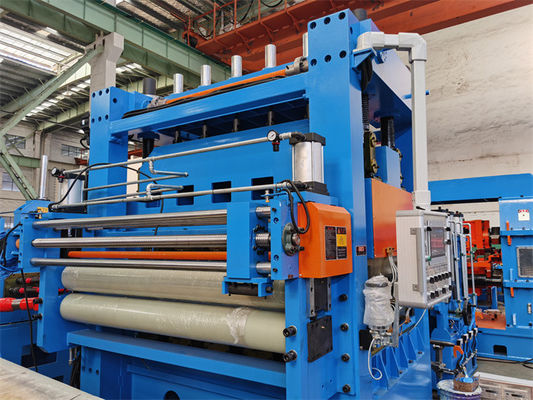

Precision Rotary Shear Cut To Length Line High Speed Fly Cutting

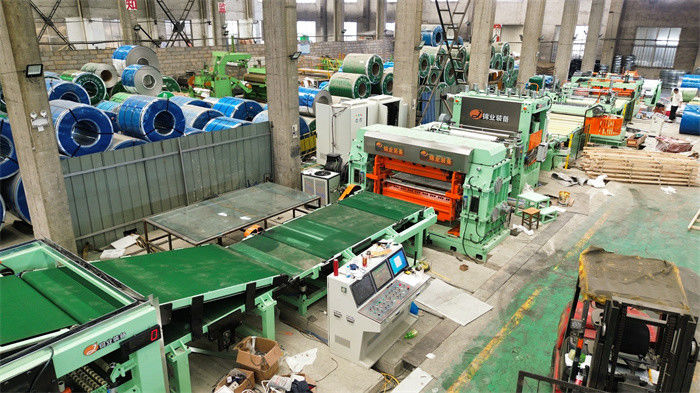

Precision Rotary Shear Cut To Length Line High Speed Fly Cutting

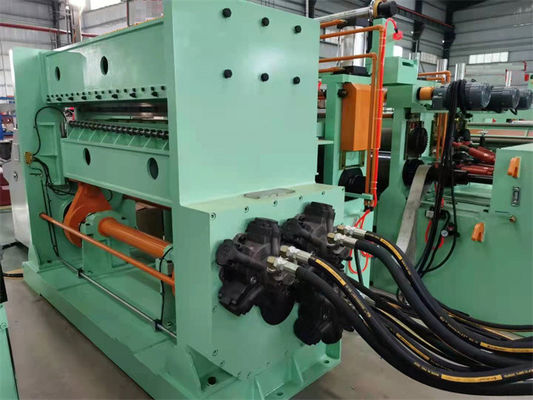

Precision Rotary Shear Cut To Length Line High Speed Fly Cutting
Precision Rotary Shear Cut To Length Line High Speed Fly Cutting Precision Rotary Shear Cut To Length Line High Speed Fly Cutting Precision Rotary Shear Cut To Length Line High Speed Fly Cutting Precision Rotary Shear Cut To Length Line High Speed Fly Cutting Precision Rotary Shear Cut To Length Line High Speed Fly Cutting

Large Image :  Precision Rotary Shear Cut To Length Line High Speed Fly Cutting

Product Details:
Place of Origin: Wuxi, China
Brand Name: Jinye
Model Number: Fly(0.3-3) x 1500
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Packaging Details: 40HC x 3
Delivery Time: 120-150days
Payment Terms: T/T
Contact Now

Precision Rotary Shear Cut To Length Line High Speed Fly Cutting

Description
Name: Rotary Shear Cut To Length Line Feature: High Speed High Precision
Material: HRC, CRC, GI, PPGI, SS Sheet Thickness: 0.3-3mm
Sheet Width: 500-1500mm Coil ID: 508mm
Coil OD: 2000mm Coil Weight: 20-25T
Cutting Length: 200 -3000mm Cutting Speed: Max 150 Cuts/min
Cutting Style: Rotary Shear Leveler: 4Hi, 6hi
Total Power: 300KW Land Area: 25m X 8m
Highlight:

Rotary Shear Cut To Length Line

,

Precision Cut To Length Line

,

High Speed Fly cut to length line

Precision Rotary Shear Cut To Length Line High Speed Fly Cutting



Rotary Shear cut to length line is advanced high speed high precision cut to length machine , esp. suitable for light gauge sheet metal cutting:

  • length of a light gauge coil sheet is long, for example, a 0.2mm thick coil length is 10times length of 2mm coil, higher weight production of cut sheets requires faster line speed.
  • Thin sheet can be easily cut off in one fast stroke, thus fly rotary cutting is available: the sheet runs at stable speed, rotary shear rotates and cut off a sheet in a clycle under the closed loop length feedback, max cutting frequency can be up to 150times/min. linear producing speed up to 80m/min
  • Rotary shear cutting is specially suitable for short sheets, although the extremely short sheets can not run too fast, the cutting frequency still can be around 100pcs/min.

Comparision of 2mm coil and 0.2mm coil:

  Coil specification Sheet length Cutting line speed Cutting time per coil
0.2mm coil sheet 508mm ID,1250mm width, 15T ~7500m 80m/min 95mins
2mm coil sheet 508mm ID, 1250mm width, 15T ~750m 80m/min 9.5mins



Parameters:

Input Raw Material and Finished Product
Raw Materials Hot / Cold Galvanized, Cold Rolled , Color Coated Coils
Mechanical Property Tensile Strength σb≤460Mpa, σ0.2≤280Mpa
Thickness 0.2-2.0mm,
Width 500mm-1500mm(Max)
O.D. ≤Φ1800mm
I.D. Φ508mm (enlarge to Φ610mm with gaskets)
Max Weight 15tons, 20 tons
Sheet length 200 - 4000mm
Length Tolerance L 0 = 1M±0.3 mm (uniform velocity)
L 0 = 1 M±0.4 mm (acceleration / deceleration)
Diagonal Length Tolerance L 1 = 1M±0.5mm
Stacking Height 650mm Max (wooden support approx 150mm high)
Max Stacking Weight 5 tons



  Flying CTL Parameters
1 Linear Speed 0-80 m/min
2 Threading Speed 0-15 m/min
3 Power Supply 380V / 50Hz / 3PH
4 Installed Power About 250KW
5 Cross Cutting Way Two Knives Fly Counter Cutting
Cutting Mechanism track cutting
6 Control Way AC, CNC and PLC Control
7 Drive Motor a. Decoiling Motor: AC 30KW b. Leveling Motor: AC 75KW

c. Rotary Shears Servo Motor:

AC 90KW



Composition:

  Item Qty
1 Loading Station 1
2 Loading Car 1
3 Decoiler 1
4 Precise Leveling Machine (19 Rollers) 1
5 Servo Feeding Device (Include Laminating Device) 1
6 Rotary High Speed fly Cutter 1
7 Three Stages Belt Conveyor 1
8 1st Automatic sheets Gathering Machine 1
9 2nd Automatic Gathering Machine 1
10 Hydraulic System 1
11 Pneumatic System 1
12 Lubricating System 1
13 Electrical System 1
