GI Galvanized Metal Slitting Line Galvanlume Steel Sheet Slitting Line Machine 3 X 1250

High Speed GI Steel Sheet Slitting Line Machine 3 x 1250

Galvanized Steel sheets (GI sheets) are anti-corrision, widely used for making roofing decks,columns, pipes, etc.

The GI sheets slitting should note:

1)brush zinc powder on sheet surface 2)smooth threading without scratch 3) Precise slitting for later application

We give various options of configuration slitting lines for customers to choose, which needs customer telling their plan of production, then we calculate the slitting speed, slitting precision and automation. Each slitting line is customized, thus most suitable. We hope to communicate with you

Galvanized Steel Sheets available:

Composition:

1)Coil preparing saddle, coil-loading car

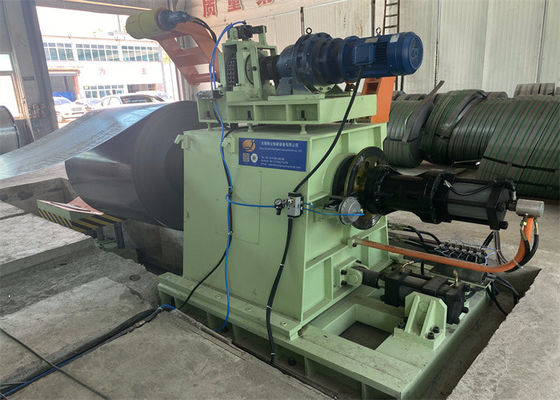

2)Single Mandrel uncoiler with coil head press roller

3)Coil-head straightening and shoveling device

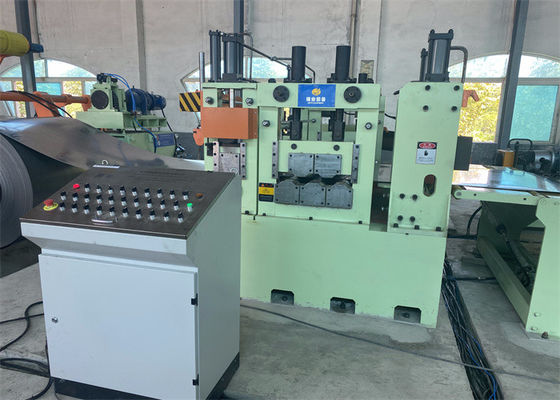

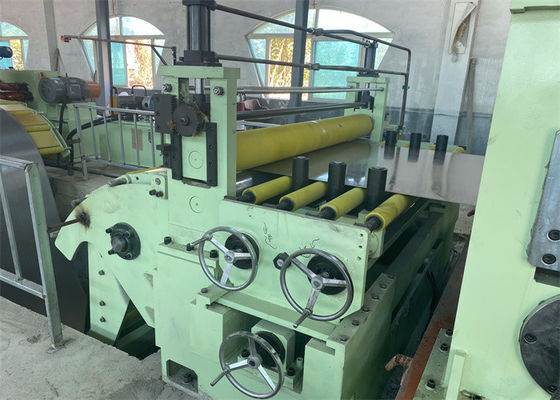

4)double pinch rolls & 5-roller Leveler and coil head shear

5)first pit accumulator

6)Side guide before slitter

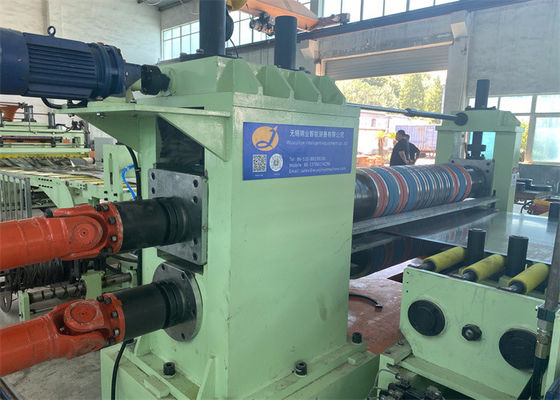

7)Slitter(adopt old slitter head

8)edge scrap reeler(located below transmission table)

9)second pit accumulator

10)pre-separator & Tensioner, Post Shear & Deflector Roller

11)Recoiler with Separator press bracket

12)Coil Discharging Car

13)Hydraulic system, Pneumatic system

14)Electric control system

 All transmission rolls are PU rubber coated to protect galvanized steel sheet surface from being scratched.

Parameters:

Layout:
