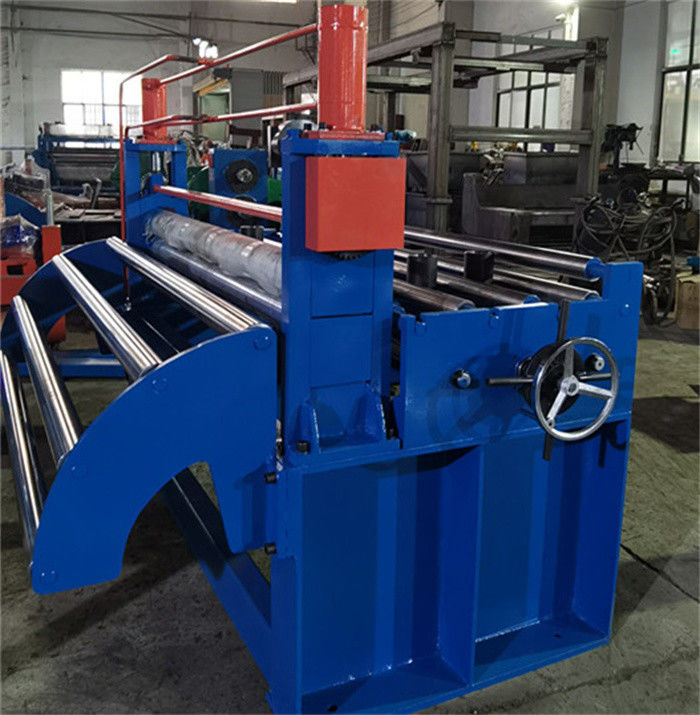

Heavy Duty Steel Slitting Line Machine For High Tensile Coil Sheet

Heavy Duty Steel Slitting Line Machine For High Tensile Coil Sheet

Description

The Heavy Duty Steel Slitting Line Machine is a machine used for cutting and rewinding various types of steel. Steel is widely used in industries such as construction, machinery, and automobiles, and is an indispensable and important material in modern industrial production. The operation process of the steel strip cutting line machine mainly includes steps such as automatic feeding, steel coil cutting, coil holder movement, and winding.

This equipment has a high degree of automation and can be customized according to customer requirements to produce steel strips of different specifications and thicknesses. Compared with traditional manual cutting equipment, heavy-duty steel strip cutting line machines have higher work efficiency, higher cutting accuracy, and more stable and reliable product quality.

In addition, the steel strip cutting line machine also has the advantages of simple operation, convenient maintenance, safety and reliability, and is an indispensable and important equipment in modern industrial production. Due to the extremely wide application of steel strips, heavy-duty steel strip cutting line machines have also been widely used.

High carbon steel coils are high tensile steel, very hard and high elasticity, used for making tools, knife, springs, etc. steel grade: steel grade: ASTM1050,1075,1080, 1085, 1090, 1095, C67S tensile strength range around 750Mpa-1000Mpa

High tensile strength steel sheets in coils are high quality steel, requiring high quality slitting.
We make and supply high tensile steel coil slitting machines to domestic customers in Shanghai and Suzhou and foreign customer in USA.

We know well customers requirements of hot rolled coils slitting lines and what configuration machines suit market. We have supplied hundreds of sets HR slitting machines to customers around the world, welcome your inquiries.

Composition and Characteristics

1.Very Strong decoiler and coil opening press roller and peeler shoveling plate, to hold steel coil steadily in time of steel strip being pulled out, and send strip head into pinch feeding equipment.
2.Slitter: slitter stands, shafts, knives are bigger and stronger than normal slitter. Drive motor power is about 50% more than normal model slitter.
3.Edge scrap winder adopts torque type tension, stronger and efficient.
4.Accumulator pit loop is longer and deep enough to make sure steel strip accumulating.
5.Tension provision unit own both roller and wool felt to provide adjustable stable tension for recoiling.
6.Recoiler has portal frame type overarm separator, from top to press separating strips.
7.Slitting speed usually are limited within 80m/min.
8.Slitting knives will be special material suitable for hard steel slitting.
9.Hydraulic system, such as hydraulic cylinders, valves, should be robust and more durable.

Layout Process:

Coil preparing saddle, Coil loading Car, Uncoiler with press roller, Coil head peeler, Pinch feeder & 5 roller Pre-leveler, Shear, Pit loop 1, Side guide, Slitter, Scrap winder, Pit loop 2, Tensioner and Pre-separator, post shear and deflector roller, recoiler with overarm separator, coil discharging car

Parameters:

Configuration:
