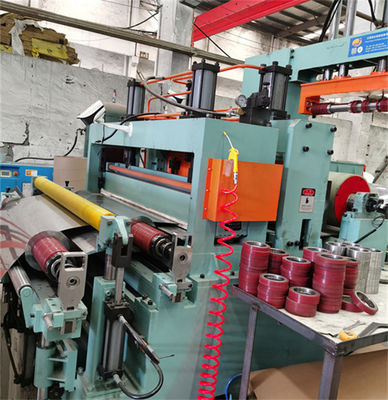

0.3-3mm Thick Aluminum Coil Slitting Machine 150m/min High Precision Sheet Slitting Machine Line

0.3-3mm Thick Aluminum Coil Slitting Machine 150m/min High Precision Sheet Slitting Machine Line

Aluminum coil slitting machine is a machine specifically used for cutting aluminum coils. Its working principle is to unwind the aluminum coils on a large roll, cut them into small rolls that meet the required width and length through a shear knife, and finally rewind them. This machine integrates multiple functions such as unwinding, cutting, slitting, and rewinding, enabling efficient and automated operations, improving production efficiency and product quality.
Its main features include:
Efficient: By adopting automation technology, the cutting and winding of an aluminum coil can be completed in a very short time, improving production efficiency.
High cutting accuracy: This machine adopts high-precision cutting technology, which can ensure the accuracy of the width and length of the cut aluminum coil and improve product quality.
Widely used: Suitable for cutting and rewinding various aluminum coil materials, such as color coated aluminum coils, aluminum plates, aluminum profiles, etc.
High degree of automation: The entire process adopts automated control, reducing manual intervention and improving production efficiency.
Easy to operate and maintain: The machine has a simple structure, easy operation, simple maintenance, and long service life.
Therefore, aluminum coil cutting machines are widely used in industries such as construction, home appliances, electronics, aviation, and automobiles, and have important application value.

Features of aluminum sheet:

it has good plasticity, easy to be processed
aluminum sheet is light, its density is 2.7g/cm3, about one third of steel sheet
The strength of aluminum sheet can be improved by cold rolling and annealing.
Aluminum sheet has solid Al2O3 protection surface, is anti- corrosion.
Aluminum sheet is softer in body and smooth in surface, must be well processed.



Composition and Parameters:


General Parameters:
1)Material:(AA3105,1100,8011)Aluminum coils
2)Coil thickness:0.3–3.0mm
coil width: 500–1250 mm
3)Coil inner diameter: Φ508 mm
4)Coil outer diameter:Φ2000 mm
5)Coil weight:10000kg max
6)Finished products width:20-500mm
7)Minimum slitting width:normal slit width above 30mm.
8)Line speed:MAX150m/min
9)Number of strips:max10 strips in thickness 2.5mm,
max 30strips in 0.3mm to 1.0mm,
max 20strips in the rest of the thickness,
10).Area occupied:8mX25m
11) slitting motor: 22KW AC,
uncoiling motor: 11KW AC
leveling motor: 15KW AC
Recoiling motor: 55KW
