Product Details:
|
| Name: | Stainless Steel Rotary Shear Flying Cut To Length Line | Sheet Material: | SUS201, SUS304, Etc |
|---|---|---|---|
| Sheet Thickness: | 0.3-3mm | Sheet Width: | 600-1600mm |
| Coil ID: | 508mm | Coil OD: | 2000mm |
| Coil Weight: | 25T | Cutting Speed: | 80pcs/min X 1m |
| Cutting Style: | Rotary Shear, Servo Drive | Leveler: | 6hi |
| Total Power: | 300KW | Land Area: | 30m X 8m |
| High Light: | High Speed Metal Cut To Length Machine,Rotary Shear Flying Cut To Length Line,Flying Cut To Length Line 0.3mm |
||
High Speed Stainless Steel Rotary Shear Flying Cut To Length Line (0.3-3) x 1600
Stainless steel coil sheet cut to length lines are becoming popular in market, when steel sheet processing plants need high productivity to improve competitive capacity, the rotary shear fly cut to length line is required, one side its high precision, the other side its high speed, stainless steel sheets require especially higher than normal steel sheets.
Stainless Steel Sheet Flying Shear cut to length line is advanced cut to length machine, with following characters:
Comparision of 3mm coil and 0.3mm coil:
| Coil specification | Sheet length | Cutting line speed | Cutting time per coil | |
| 0.3mm coil sheet | 508mm ID,1250mm width, 15T | ~5000m | 50m/min | 100mins |
| 3mm coil sheet | 508mm ID, 1250mm width, 15T | ~500m | 50m/min | 10mins |
Parameters:
| Input Raw Material and Finished Product | |
| Raw Materials | SUS200, 300, 400 stainless steel sheet coils |
| Mechanical Property | Tensile Strength σb≤800Mpa, σ0.2≤500Mpa |
| Thickness | 0.2-2.0mm, 0.3-3.0mm |
| Width | 500mm-1600mm(Max) |
| O.D. | ≤Φ1500,2000mm |
| I.D. | Φ508mm (enlarge to Φ610mm with gaskets) |
| Max Weight | 15tons, 20 tons, 25T |
| Sheet length | 200 - 3000mm, 500-6000mm |
| Length Tolerance | L 0 = 1M±0.3 mm (uniform velocity) |
| L 0 = 1 M±0.4 mm (acceleration / deceleration) | |
| Diagonal Length Tolerance | L 1 = 1M±0.5mm |
| Stacking Height | 650mm Max (wooden support approx 150mm high) |
| Max Stacking Weight | 5 tons |
| Flying CTL Parameters | ||
| 1 | Linear Speed | 0-80 m/min |
| 2 | Threading Speed | 0-15 m/min |
| 3 | Power Supply | 380V / 50Hz / 3PH |
| 4 | Installed Power | About 380KW |
| 5 | Cross Cutting Way | Two Knives Fly Counter Cutting |
| Cutting Mechanism track cutting | ||
| 6 | Control Way | AC, CNC and PLC Control |
| 7 | Drive Motor | a. Decoiling Motor: AC 30KW b. Leveling Motor: AC 132KW |
|
c. Flying Shears Servo Motor: AC 160KW |
||

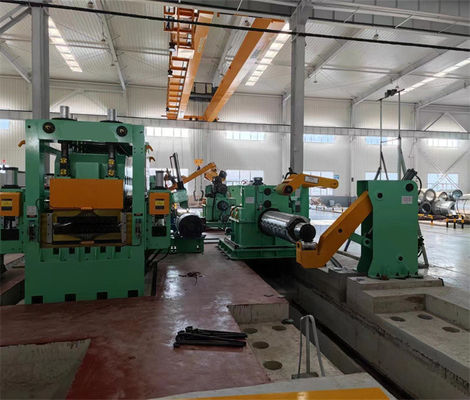

Composition:
| Item | Qty | |
| 1 | Loading Station | 1 |
| 2 | Loading Car | 1 |
| 3 | Decoiler single mandrel cantilever | 1 |
| 4 | Precise Leveling Machine (19 Rollers 6High) | 1 |
| 5 | Servo Feeding Device (Include Laminating Device) | 1 |
| 6 | Rotary High Speed fly Cutter | 1 |

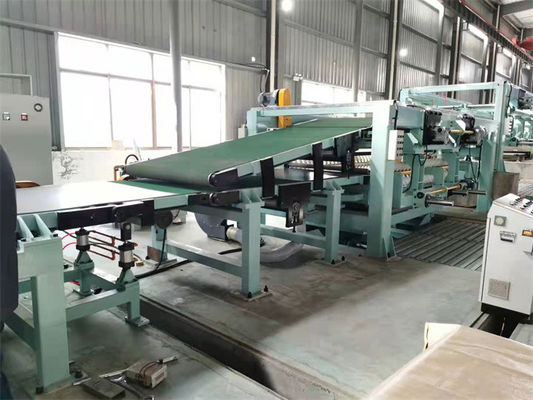

| 7 | Four Stages Belt Conveyor | 1 |
| 8 | 1st Automatic sheets Gathering Machine | 1 |
| 9 | 2nd Automatic Gathering Machine | 1 |
| 10 | Hydraulic System | 1 |
| 11 | Pneumatic System | 1 |
| 12 | Lubricating System | 1 |
| 13 | Electrical System | 1 |
