Light Gauge Precision Uncoiling Slitting Recoiling Line 4 X 1600

Light Gauge Precision Uncoiling Slitting Recoiling Line 4 X 1600
Light Gauge Precision Uncoiling Slitting Recoiling Line 4 X 1600
Light Gauge Precision Uncoiling Slitting Recoiling Line 4 X 1600 Light Gauge Precision Uncoiling Slitting Recoiling Line 4 X 1600 Light Gauge Precision Uncoiling Slitting Recoiling Line 4 X 1600 Light Gauge Precision Uncoiling Slitting Recoiling Line 4 X 1600

Large Image :  Light Gauge Precision Uncoiling Slitting Recoiling Line 4 X 1600

Product Details:
Place of Origin: Wuxi, China
Brand Name: Jinye
Model Number: SS-4X1600
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Delivery Time: 120 -180days
Payment Terms: T/T
Supply Ability: 10Sets per year
Contact Now

Light Gauge Precision Uncoiling Slitting Recoiling Line 4 X 1600

Description
Name: Light Gauge Precision Uncoiling Slitting Recoiling Line Input Material: Stainless Steel Coil SUS200, SUS300, SUS400
Coil Thickness: 0.4-4.0mm Coil Width: 300-1600mm
Number Of Slitting: 4mm X 10strips Coil Weight: Max 25T
Coil ID, OD: 508mm, 1800mm Slitter Knife: ID240 X OD360mm
Recoil Mandrel: 508mm Slitting Speed: 200mpm
Total Power: 430KW Power Supply: 380V, 50Hz, 3Ph
Highlight:

light gauge Precision Slitting Line

,

uncoiling Precision Slitting Line

,

Recoiling Precision Slitting Line

Light Gauge Precision Uncoiling Slitting Recoiling Line 4 X 1600



Stainless Steel Slitting, we pay attention to utmost importance that the surface critical nature of the material, the following characters of SUS slitting line:

  • Paper peeling, PVC film or paper laminating.
  • Slitting line with two looping pits
  • Large diameter high strength coiling
  • Recoiler: excellent quality, tightly wound, straight-sided slit coils.
  • State of the art controls system with an operator interface that is efficient and easy to operate.
  • Robust equipment design virtually eliminates downtime
  • Coil threading features that allows the operator to maximize line efficiency
  • Efficient coil loading and unloading which maximizes coil throughput
  • Precision Injector Quick Change Slitting systems with the capability to exchange tooling in the matter of minutes
  • Intelligent control system, monitor the running of slitting line by camera sensors.

Each slitting line is customized, we make the stainless steel slitting line as per customer requirements



Parameters:

  Description and Specification
Raw Material

AISI 409, AISI 430, AISI 201, AISI 304, AISI 310, AISI 316, AISI 321, AISI 904, AISI 2205 and etc

Tensile strength σb≤800N/mm2, yield strength ≤450N/mm2

0.4-4.0 x 300-1600mm x 25T coils
Finished product

4mm thickness, max 10 strips; ≤1.5mm,max 30strips

Minimum 50mm width, Φ508mm, Φ1800mm,

Φ508mm inner diameter, Φ1800mm outer diameter, max 25T weight
Slitting Machine

active slitting or pull slitting, DC drive

Slitting speed: max 200m/min. Threading speed: 0-15m/min

Total 430KW, land area 35m x 10m
Slitting precision

Slit widths tolerance≦0.10mm,

Slit camber≦0.5mm/m for strip of wider than 300mm, ≦1.0mm/m for strip of <300mm

Slit burrs ≦0.05mm

Recoil staggering ≦±0.5mm

Recoil turriform ≦±2.0mm
Composition V-shape Coil saddle, Coil-loading——Cantilever mandrel uncoiling——Coil-head-feeding, press & shoveling——Double-roller pinch feeding, five-roller leveler——End-cutting----Hole accumulator1 ---- Side guide----Disc slitting(double slitters)——Scrap reeling——Hole Accumulator 2—— Pre-separator/Tensioner/post shear/length-measuring roller——Coils press & separator/recoiler —— Coils-discharging——Hydraulic control——Electric control



Composition:

  Characters and Description
Coil Cars Welding boy, V saddle, four pillar guide, hydraulic up-down, motor drive walking
Uncoiler Single expansion teeth staggering mandrel, AC motor gear transmission uncoiling back tension, hydraulic central aligning, paper peeling
Coil head opener Snubber roll, straightening roll and shoveling plate
Preleveler Double pinch rolls and 2 over 3 leveler to straighten coil plate, and a hydraulic shear

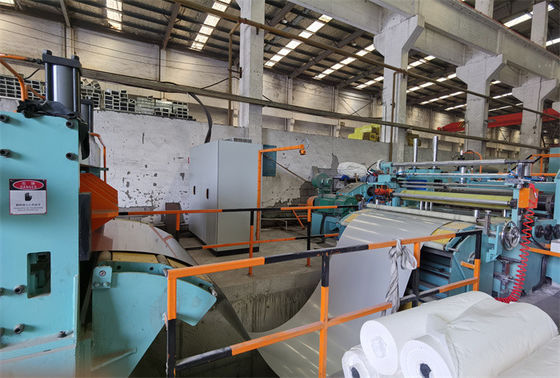

Loop pit One pit situated after preleveler and before slitter, the other pit after slitter and before tension, to synchronize steel strip
Side guide To ensure steel strip in center of the line before slitting
Slitter Double arbors, the upper arbor up-down adjusting, motor and gearbox drive universal joints, need disc knife, spacers, PU rubber, bakelite strip plates tooling.
Scrap winder Double winders at ear of the line, either horizontal or vertical, AC frequency controlled, with strips checking table and pressing roller
Tensioner Felt press tension, encoding deflector roller

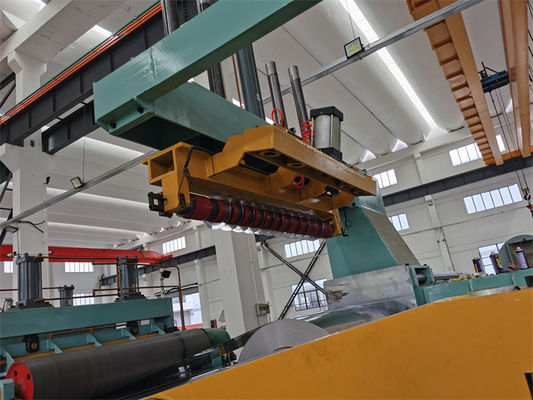

Separators Twice separators before tension, Hydraulic press separator frame on recoiler

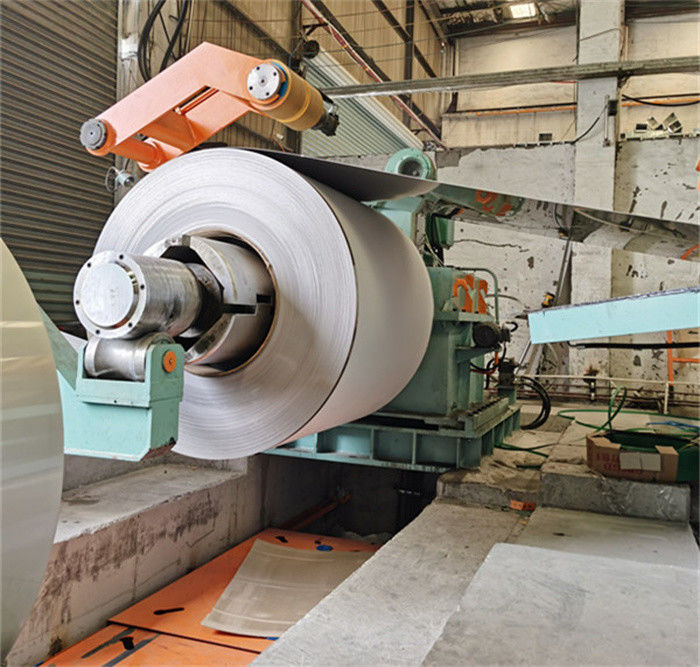

Recoiler hydraulic expansion recoil mandrel, motor and gearbox drive, hydraulic coils pusher, swaying door support



Light Gauge Precision Uncoiling Slitting Recoiling Line 4 X 1600 0

Light Gauge Precision Uncoiling Slitting Recoiling Line 4 X 1600 1
