High Precision Servo Cut To Length Line for Stainless Steel Coils with Edge Trimming

Large Image : High Precision Servo Cut To Length Line for Stainless Steel Coils with Edge Trimming

Product Details:

Place of Origin:	Wuxi, China
Brand Name:	Jinye
Certification:	ISO9001
Model Number:	JY(0.3-3) x 1600

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Packaging Details:	4 X 40HC
Delivery Time:	120-180days
Payment Terms:	L/C, T/T
Supply Ability:	15sets per year

Contact Now

High Precision Servo Cut To Length Line for Stainless Steel Coils with Edge Trimming

Description

Name:	High Precision Servo Cut To Length Line	Material:	Stainless Steel 304, 316L
Sheet Thickness:	0.3-3mm	Sheet Width:	300-1600mm
Sheet Length:	500-4000mm	Cutting Speed:	30pcs/min X 2m
Coil ID:	508mm, 610mm	Coil Weight:	20T
Length Tolerance:	+/-0.5mm /m	Flatness:	1mm/m2
Stackers:	Dual	Cutting:	Servo Feeding And Cut
Leveler:	6 High 21rolls	Uncoiler:	Single Mandrel
Highlight:	sus cut to length line machine , Servo cut to length line machine , High Precision cut to length machine

High Precision Servo Cut To Length Line for Stainless Steel Coils with Edge Trimming

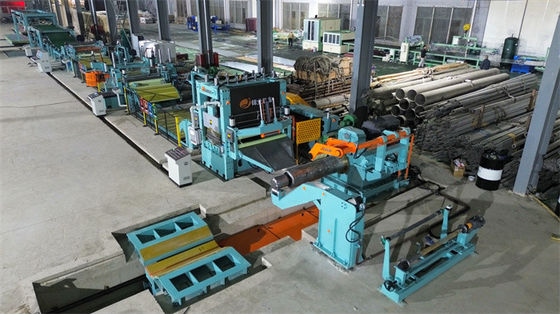

Servo Cut to length line is a production line of cutting steel coil to length after uncoiling and leveling , composed of uncoiler ,leveler , NC length feeder , high speed servo shear , double stackers , etc

Characters

The process of uncoiling , leveling , cutting , stacking is automatic without stretch tension to the sheet .

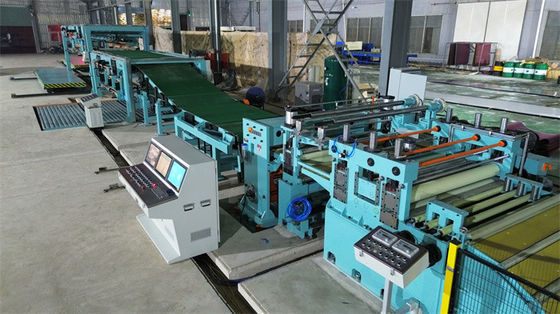

The control system is PLC servo control and HMI touch screen , the operator input the cut length and quantity, set feeding speed, auto and manual exchange , feeding length , feeding pieces , automatic start , automatic stop, pause , counter reset , forward , backward , shear up , shear down , abnormal alarm , etc .
Sheet surface protection is nicely noted on the cut to length line, like hard chrome coating , PU rubber coated roller , PU receiving arms , etc .
Servo Shearing machine: Servo motor controls shearing action, low noise and less piping. Servo adjusting blade gap with memory function can realize fast blade gap adjusting. The shear can act alone to meet length checking online

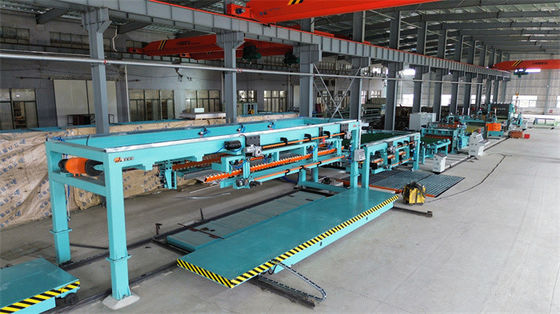

Stackers: The positions of baffle plates are in servo control: the operator set sheet length and width on the touch screen, press a key, the positions are automatically adjusted, meanwhile can finely adjust .The scissor table going down automatically in photoelectric sensor or thickness mode, can switch between the two modes for wood pallet or steel frame support piling.The correlation photoelectric sensor for receiving arms can avoid wrong action of the arms caused by laminated paper or film on sheets.

Composition

No.	Composition	Qty
1	Coil preparation saddle	2pairs
2	Coil loading car	1set
4	Uncoiler+Coil snubber roller + paper winder	1set
5	6hi leveler+ work rolls cleaner	1set
6	Cascade roll loop1	1set
7	side guide	1set
8	NC Servo feeder	1Set
9	Dual sides film /electrostatic paper laminator	1Set
10	Servo shear	1set
11	convey belt + waste sheet car	1set
11	Dual stackers	1set
12	Dual Output roll tables	1set
13	Hydraulic system	1set
14	Pneumatic system	1set
15	Electric control system	1set

Parameters

0.3-3 x 1600 servo cut to length line

Machine performance:

No.	Item	Parameters
1	Cutting length	Stacker1, 300-3000mm/ stacker2, 400-6000mm
2	Cutting length tolerance	L=2m≤±0.3mm(2.0mm)
3	Diagonal length tolerance	L=2m≤±0.5mm(2.0mm)
4	leveling precision	≤±1.2mm/m2
4	leveling precision	≤±1.2mm/m2
5	Stacking height	Include cushion wood 700mm, max 5T.
6	.Cutting burrs	Thickness ≤1 . 0mm , ≤0 . 03mm
6	.Cutting burrs	Above 1 . 0mm , burrs ≤ 3% of thickness
7	Stacking precision	Deviation between layers: ≤1.0mm in width, ≤1.5mm in length
7	Stacking precision	Deviation in stacking height ＜3mm for 500mm height
8	Cutting speed	0-60m/min
		Sheet length(mm)	cutting times(pcs/min)
		1000mm	50pcs
		2000mm	30pcs
		3000mm	20pcs
		4000mm	15pcs
		6000mm	10pcs
9	Total power	about 240KW
