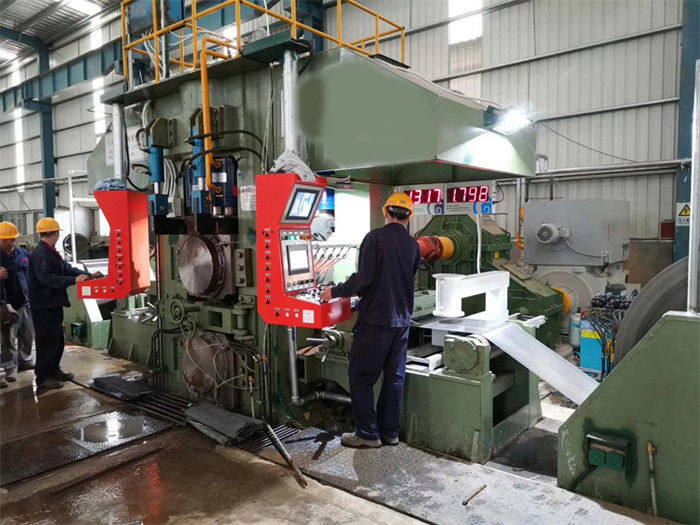

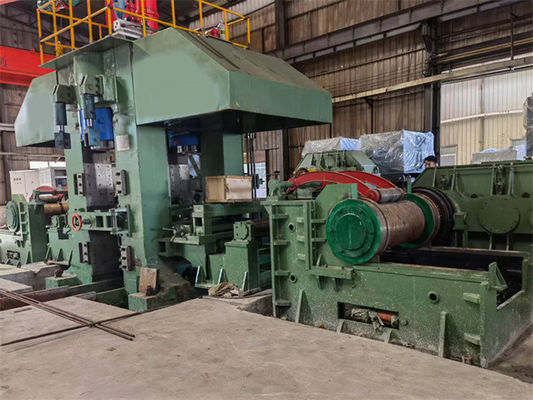

High Speed AGC AFC APC 6Hi Reversing Cold Rolling Mill Line 1450

Large Image : High Speed AGC AFC APC 6Hi Reversing Cold Rolling Mill Line 1450

Product Details:

Place of Origin:	Wuxi, China
Brand Name:	Jinye
Model Number:	1450

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Delivery Time:	240 -300days
Payment Terms:	T/T

Contact Now

High Speed AGC AFC APC 6Hi Reversing Cold Rolling Mill Line 1450

Description

Name:	AGC /AFC / APC 6Hi Reversing Cold Rolling Mill	Material:	Q195-Q235;08Al, SPHC, SPHD, SPHE
Input Thickness:	2.2-3.5mm	Finished Thickness:	0.12-0.8mm
Strip Width:	900-1250mm	Rolling Speed:	1250m/min
Press Down:	Hydraulic AGC	AGC Hydraulic Pressure:	23Mpa
Rolling Process:	Reverse	Recoiling Tension:	170KN
Rolling Force:	1500T	Rolling Torque:	110KN.M
Total Power:	13000KW	Thickness Tolerance:	0.005mm
Highlight:	6Hi Reversing Cold Rolling Mill , Cold Rolling Mill Line 1450 , High Speed AGC 6Hi Rolling Mill

High Speed AGC /AFC / APC 6Hi Reversing Cold Rolling Mill Line (1450)

φ370/φ415/φ1180×1380mm 6hi Reversible cold Rolling Mill is high configuration high speed high precision cold rolling mill with below parameters:

Raw Material

Q195,Q215,08Al,20#, Q235, SPHC, SPHD, SPHE

yield strength≤ 360N/mm2 tensile strength≤ 610N/mm2

2-3.5mm thickness x (900-1250)mm width

ID610mm OD2000 max 27T

Finished product

0.12 -0.8mm x 900 -1250mm

ID508 X OD2000 x 27T

1380 6 Hi Reverse Mill

φ370-φ330×1380mm work roller

φ415～φ375×1380mm middle rollers

φ1180-φ1080×1300mm backup rollers

Work roller bending(single side +/-): 375/280KN

Middle roller bending(single side +): 450KN

Middle roller transfer: ±150mm

Max rolling force: 15000KN

Max rolling torque: 110KN.M

Rolling speed: max 1300m/min

Composition:

Uncoiler, 1set Coil loading car, 1set Coil head straightener, 1set

Recoiler before mill, 1set Coil unloading car, 1set

Processing table before mill, 1set

φ370/φ415/φ1180×1380mm 6hi Reversible cold Rolling Mill

Processing table after mill, 1set

Roller changing equipment, 1set

Recoiler after mill, 1set Coil unloading car, 1set

High pressure hydraulic system for AGC servo cylinders 1Set

Middle pressure hydraulic system for roller bending 1set

Normal pressure hydraulic system for hydraulic actions 1set

APC, AFC, AGC Electric Control System 1Set

Lubrication system (emulsified coolant system, oil gas lubrication, thin oil lubrication)

Description of Electric Control System:

1 power supply and distribution system
	400V drive transformer and 710V motor drive stransformer
	Low voltage power Distribution system
	UPS system
2 main motor drives systems
	Main drive system includes drives of uncoiler, recoiler before mill, main mill upper roller, main mill lower roller, recoiler after recoiler, take use of AC frequency controller, including drive cabinets, drive motors.
	AC frequency control is SINAMICS S120 series, common DC bus connecting with several motors,feedback stopping.
	Connect main drive system with automation system by Profibus
3 auxiliary motor drives system
	Motors of deflector rollers adopt S120, pump motors of processing lubrication station adopt G120XA frequency inverters.
	constant speed motor drive
4 automation system
	Drive control grade L0, basic automation system grade L1, HMI L1.5.
	one S7-315 logic sequential control
	another motor drive system and process control system(S7-400+2×FM458)
	remote I/O connection
	AGC, AFC, APC control
5 Operation station
	Uncoiling operation station
	Main operation station
	Entry operation panel
	Exit operation panel
6 Meters and Inspection system

High Speed AGC AFC APC 6Hi Reversing Cold Rolling Mill Line 1450 0
