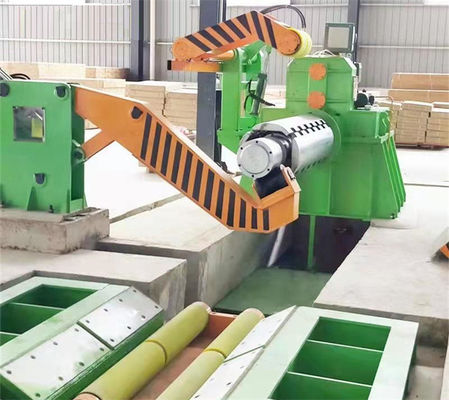

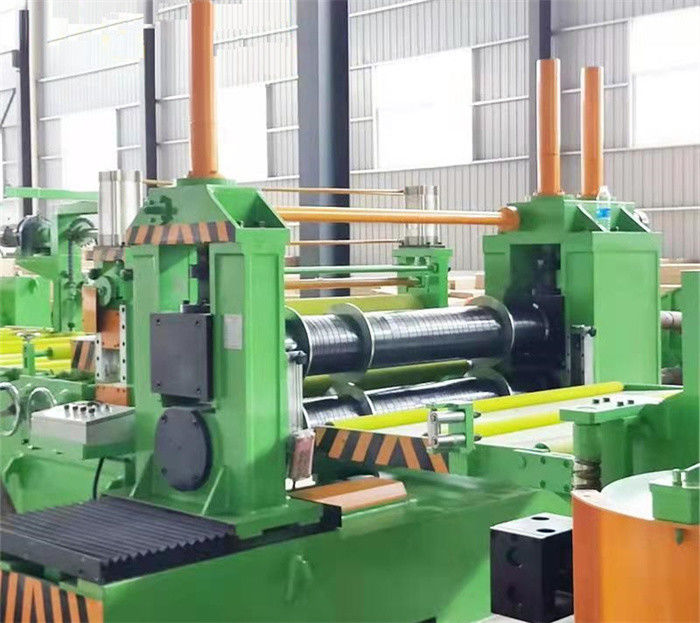

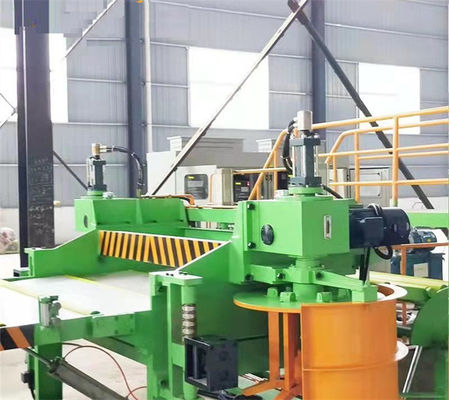

Thin Gauge Precision Slitting Lines (0.2-2 X 1250)
Thin gauge slitting line for thin coil sheet slitting continuously decoil and slit thin metal coil into multiple (several to dozens of) narrow strips and then rewind narrow strips up onto recoil mandrel, usually requires high speed high precision.
High speed thin sheet slitting line means slitting speed can be 120m/min, 150m/min, 200m/min in automatic slitting, to shorten down time effective mechanism is arranged, the time of loading, threading and unloading can be finished within 10minutes.
Steel coils (Cold Rolled steel, Galvanized steel, PPGI steel,stainless steel coil), non-ferrous metal coils(aluminum coil, copper coil)slitting in thin gauge ranging 0.20-3.0mm require high precision +/-0.05mm to +/-0.15mm slit width tolerance, high precision slitting tools installed on high precision made slitter can give satisfactory performance.
Continuous thin gauge metal coil plate slitting at high speed in high precision need each unit of slitting line should be elaborately designed, machined, assembled and installed to ensure smooth slitting process, meanwhile, should consider special characteristics of thin metal strip material.
Thin sheet steel slitting line requires high precision: longitudinal parallel, edge burrs, clean surface, and high speed: one steel coil can be tens of thousand meters, without high speed slitting, time taking will be long. We make high speed high speed slitting line, suitable for thin steel sheet 0.2-2.0mm x 1250mm, 0.3-3.0mm x 1250mm, 0.3-3.0 x 1600mm
Steel coils dimensions: ID508mm/610mm, OD1600mm, max 15T/20T
Number of slitting: 30cuts for 0.5mm, 20cuts for 1mm, 15cuts for 2mm, 10cuts for 3mm
We are rich experienced at design and make customized slitting lines of high speed high precision for thin gauge metal sheet slitting.
As professional slitting line manufacturer, We supply our slitting lines to over 50 countries such as Indonesia, Malaysia, India, Philippines, Vietnam, Sri Lanka, K. Saudi Arabia, Iraq, Jordan, Egypt, Algeria, South Africa, Ghana, Costa Rica, El Salvador, Venezuela, Colombia, USA, Kazakastan, Russia, Ukraine, etc.
Parameters:
| Slitting Line 0.2 -2 X 1250 150mpm |
Parameters |
| Coming steel coils |
ID508mm, 610mm, OD1800mm, coil weight 20T |
| Finished baby coils |
ID508mm, OD1800mm, coil weight 20T max |
| Mother coil width |
300-1250mm |
| Baby coil widths |
20mm -600mm |
| Number of slitting |
1mm x 30slits; 2mm x 15slits |
| Main motors |
Slitter 90KW + Recoiler 110KW |
| Slitter knife |
ID205 x OD320 x 10/15mm SKD11 HRC58-61 |
| Recoiler mandrel |
Seamless mandrel |
| Optional |
Fast exchange slitters, unload turnstile |
| Slitting speed |
0-100-150mpm adjustable |
| Configuration |
Siemens PLC, Parker Drive, Vitory Valves |
| Slitting precision |
Slit width ±0.1mm; Camber ±0.1mm/m; bur 5% of thickness; recoil hump<0.5mm |
