Heavy Gauge Slitting Line Machine Steel Sheet Coil Slitting Machine 3-12 X 2000

Heavy Gauge Steel Coil Sheet Slitting Lines

To cut thick coil plate in longitudinal direction, like 8mm, 10mm, 12mm, 14mm mild steel, or high tensile heavy gauge slitting, such as 4mm, 5mm, 6mm, 7mm, 8mm, etc..., the machine has to bear heavy load and machine structure must be robust strong structure!

We supplied high tensile thick plate slitting machine to India 6x2000 model, 8 x 2000 double heads slitting line to Algeria and Russia, 12x1250mm slitter to domestic market in Sichuan.

Characteristics :

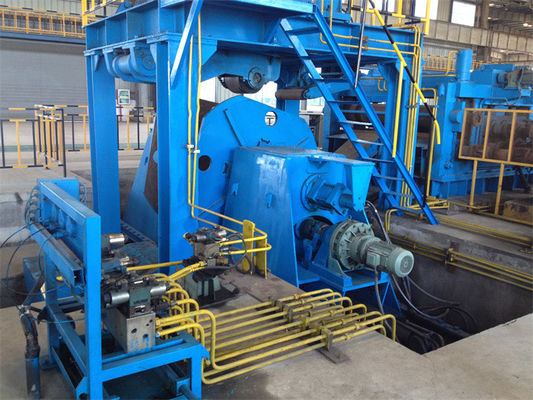

1. Big baffle double cone uncoiler: thick steel coil plates are often heavy with big outer diameter, coil weight maximum can be 30-40T and outer diameter is up to around 2200mm. The inner coil diameters are not so regular, looking an oval shape, the opposite two cone mandrels can easily support coil inside.
2. Strong pre leveler before slitting: Thick plate was wound up to become coils in rolling line, the coiling radius of strips is strong, strong leveler can flatten the coil bending radius to become flat, ready for later slitting.
3. Five roller tensioner: The five rollers tension is 3 over 2 roller structure, closely keeping steel strips under stable recoiling tension

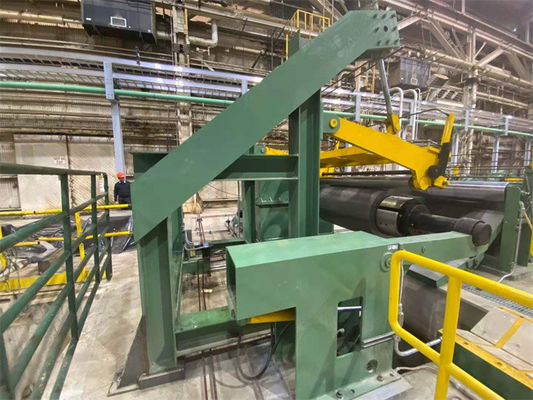

4. Strips separating press frame over recoiler: To ensure continuous recoiling, each strip must be held in order and tightly one layer over the under layer, hydraulic separating press frame solidly stand on foundation, pressing separating shaft onto recoiling strips by two hydraulic cylinders.

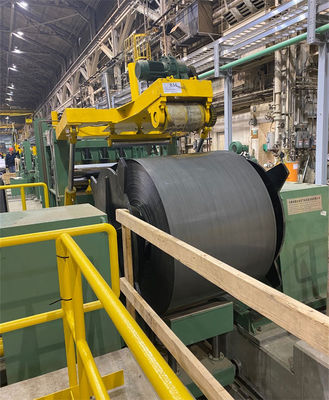

5. Slitter and recoiler: Structure is the same as normal, much stronger, and some parts adopt special material. Slitting and recoiling work in synchronization by PLC control.
6. Motorized adjusting side guide: for thickness gauge sheet, the side guide adjusting is motorized by pressing button on panel.
7. Two scrap winders at each side: independently driven by a big AC frequency motor, with scrap winding displacement.
8. Electric control: CCD cabinet is behind the slitting machine on drive side, operator panels sit in front of the machine, which has touch screens and Siemens PLC.

 Composition and Parameters:

Layout:
