Sheet Metal Cut To Length Machine Leveling Cut To Length Blanking Line Machine

Sheet Metal Leveling Cut To Length Blanking Line Machine

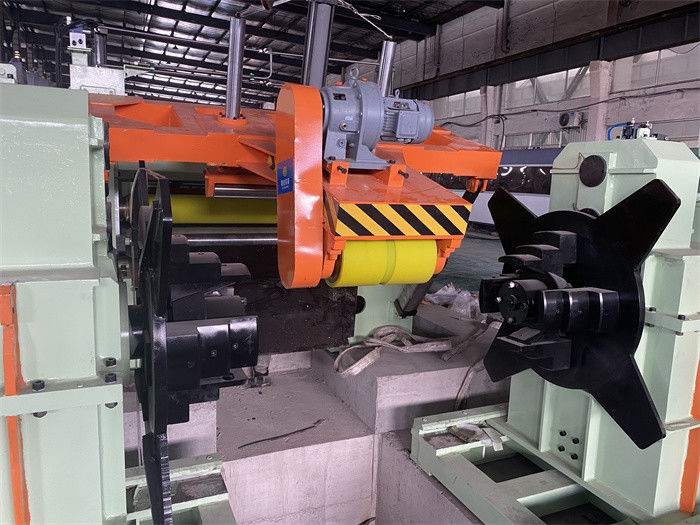

Sheet metal cut to length blanking lines not only for Metal sheet uncoiling, leveling and cross cutting, but also handling irregular shape cutting such as trapezoidal sheets, our market is around the world, various customers require different designing and making configurations of cut to length lines, this accumulation of rich experiences make us able to understand and satisfy customers.

We aim at customizing each cut to length machine as per customers requirements, thus can give different options to meet various expectations of different customers.

• The raw coil materials can be low carbon steel, medium & high carbon steel, high quality steel, stainless steel, aluminum, copper
• Cutting style can be start-stop, fly cutting or sway cutting

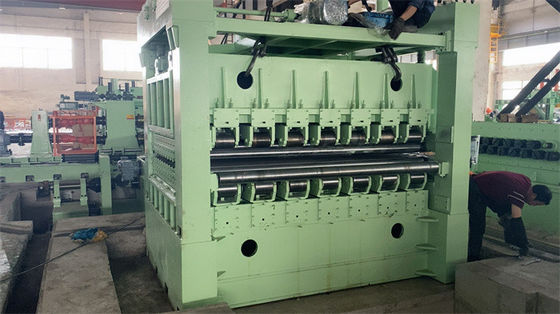

• Leveler can be 4hi or 6hi, roller diameter is proportional to sheet thickness and strength.
• Length measuring can be servo encoding or rotary encoder.
• One line either once or twice leveling to suit different sheets
• Two main levelers can be arranged shoulder to shoulder in one line to level wider range of thickness.

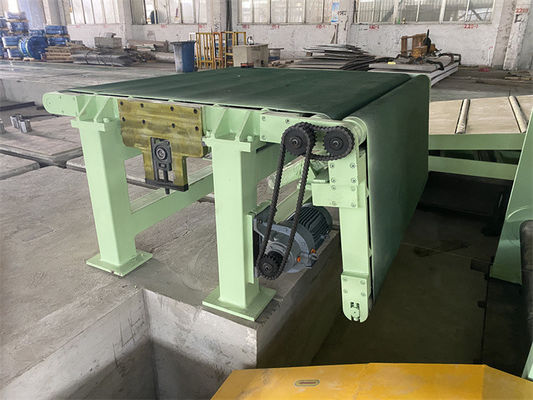

• Stacking system can be simpler or complicated for different materials or speeds.
• Automatic level can be more or less

Your proper proposal will be provided based on your complete requirements on sheet metal cut to length

Market:

• Traditionally and nowadays most metal sheet cut to length line for processing low carbon steel sheets, low alloy steel sheets, hot rolled or cold rolled, galvanized or colored.
• Stainless steel sheet cut to length line is becoming more percentage with the market requiring more stainless steel sheets, the SS sheet surface is bright, must be nicely protected in the uncoiling, leveling and cutting process.
• Aluminum sheet is light and anti-corrosion, surface is clean, the cut to length line is flying shear and all passover rollers are rubber coated.
• Fast cutting to length is needed because customers want enough production within certain time and land area. Thus, high speed cutting line, either flying shear or stop shear, is popular.
• Sheets stacking must be fast and in order, receive one sheet,drop down and push it neatly.
• Automation system is there in electric control, big touch screen and PLC program.

Parameters:

Composition:
