3-12mm Thick Carbon Steel Cut To Length Line For Hot Rolled HR HRC HRS

Carbon Steel Cut To Length Line for Hot Rolled HR, HRC, HRS​

Carbon steel sheets are most common metal sheet, most of carbon steel sheets are low carbon steel (mild steel), medium and high carbon steel sheets are high quality high tensile steel, we make carbon steel sheet cut to length machines tailored to corresponding materials.

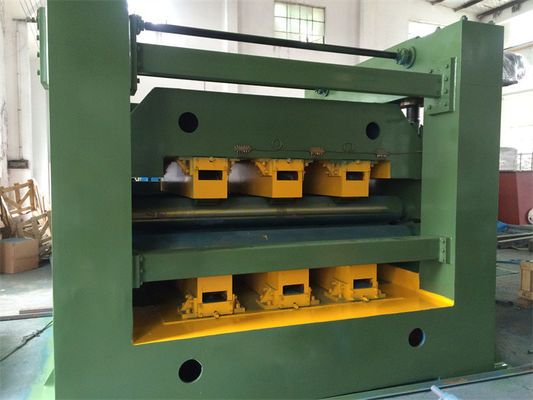

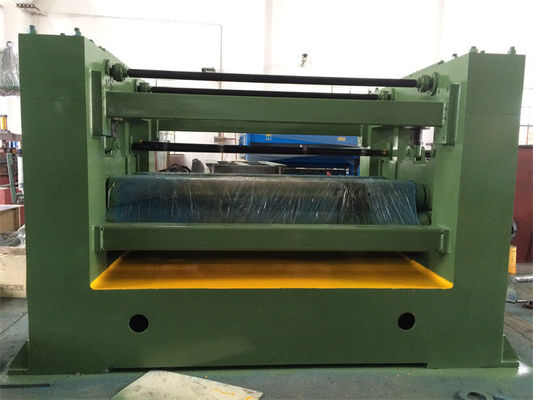

Leveler is core machine of steel coil cut to length line, the quality of finished plates mainly depend on the performance of leveling machine. Thin sheets requires small rollers finely level HRC, CRC, GI sheet, usually 4hi structure of two layers work rollers and 2 layers backup rollers, the inclined angle is adjusted as per sheet thickness.

For thick HRC steel plates, twice leveling are very necessary and effective, one pre-leveler and main leveler. Pre-leveler is to handle coiling bends and main leveler is to level sheets to be flat.Preleveler can be hydraulic three rollers (one over two) or Motor drive five rollers(two over three), considering hard HRC steel coil, five rollers leveler is more effective. We supply the heavy HRC steel leveling cut to length lines to Attieh Steel in Saudia Arabia, Modern Metal in Jordan, 12 x 2000 Saba Steel in Nigeria

One leveler can level sheet gauge of certain range, such as 0.3-3mm, 1.5-6mm, 4-16mm, you can not get perfect sheets of all gauges from one leveler, when a customer wants to make flat sheets of wide thickness range on one leveling cut to length line, can consider two levelers sequentially lay on the line to focus leveling different range of thicknesses(e.g. 2-12mm is divided to 2 -4mm, 3-12mm).

The cutting shear for carbon steel sheets can be fly shear for high production or normal encoding shear for daily production. The shear drive can be AC motor, hydraulic, servo motor. With length measuring roller feedback, the shear will cut precisely by PLC control.

Parameters:

Composition:
