GI GL Metal Cut To Length Machine Galvanized Galvalume Steel Sheet Cut To Length Line

Large Image : GI GL Metal Cut To Length Machine Galvanized Galvalume Steel Sheet Cut To Length Line

Product Details:

Place of Origin:	Wuxi, China
Brand Name:	Jinye
Model Number:	0.25-2.0 x 1250

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Packaging Details:	2 X 40HC
Delivery Time:	100-130days
Payment Terms:	L/C, T/T
Supply Ability:	15sets per year

Contact Now

GI GL Metal Cut To Length Machine Galvanized Galvalume Steel Sheet Cut To Length Line

Description

Name:	GI GL Steel Coil Cut To Length Line	Material:	Galvanized Galvalume Steel Sheet
Sheet Thickness:	0.25-2mm	Sheet Width:	300-1250mm
Sheet Length:	500-3000mm	Cutting Speed:	28pcs/min X 2m
Coil ID:	508mm	Coil Weight:	15T
Length Tolerance:	+/-0.5mm	Flatness:	1.0mm/m2
Total Power:	120KW	Land Area:	22m X 8m
Highlight:	GL Metal Cut To Length Machine , Galvanized Coil Cut To Length Line , Galvalume Steel Sheet Cut To Length Line

GI GL Steel Coil Cut To Length Line For Galvanized Galvalume Steel Sheet

Galvanize zinc or alu zinc on steel sheet in hot dip, electroplating can prolong sheet life from anti corrosion. The galvanized steel coil sheets come to cut to length to make flat sheets, which requires cutting to length to be high precision, reaching the goals:

brush zinc powder on sheet surface
smooth threading without scratch
Precise cutting for later application
GI sheets stacking must piece by piece.

Galvanized sheet grade and strength:

DX51 / DX52 / DX53 /DX54	YS: 100-300Mpa
DX51D+Z / DX52D+Z / DC51D+ZF / DC52D+AZ	TS: 250-600Mpa
S350GD+Z / HX340LAD+ZF / HC340/590DPD+Z High YS, TS galvanized sheet

Configuration:

Sr.	Components	Brands
1	S7-1500 PLC, HMI	Siemens
2	AC motors	Siemens Beide
3	AC converters	Siemens
4	Hydraulic valves and pump	Yuken, Japan
5	Pneumatic valves and cylinders	Festo
6	Servo motor and controller	YASKAWA
7	Bearings	SKF
8	Electric parts	Schneider

Parameters:

High speed light gauge cut to length	Parameters
Galvanized coil sheet thickness(mm)	0.25-2.0mm, 0.3 -3.0mm, 0.4-4.0mm
GI coil sheet width(mm)	1000mm, 1250mm, 1600mm
Uncoiling load( T)	15T, 20T
line speed(mpm)	80m/min, 25pcs/min x 2m
Cutting Accuracy(mm)	±0.5mm /m in length
Leveling precision	≤±1.0mm/m²
Cutting burrs	≤3% of thickness
Stacking precision	≤1.0mm in width, ≤1.5mm in length,
Total power(KW)	110KW ~ 130KW ~ 150KW
Land area(L x W)	22m x 8m, 25m x 9m

Composition:

No.	Composition
1	Coil Saddle, Coil car
2	Uncoiler with back tension
3	Pinch and 4Hi Leveler
4	Pit Loop
5	Central guide
6	Pinch feeding servo feeder
7	Fast hydraulic shear
8	Delivery belt
9	Stacker, X lifting table
10	Output roll tables or output car
11	Hydraulic system
12	Pneumatic system
13	Electric control system

Description:

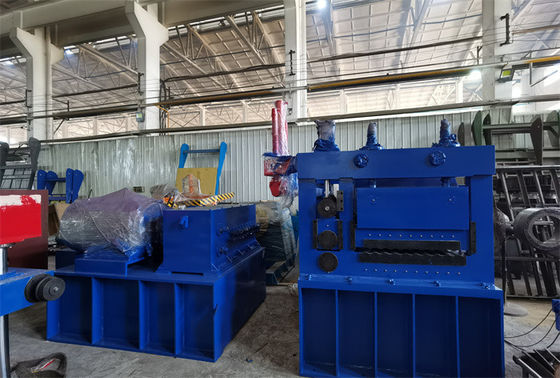

Single mandrel uncoiler: Ф508 x 1350mm hydraulic expansion mandrel, 30KW back tension motor and gear transmission.
Coil head snubber roller installed on uncoiler base, peeler shoveling plate and straightener roller to open coill head and send the head into pinch feeder

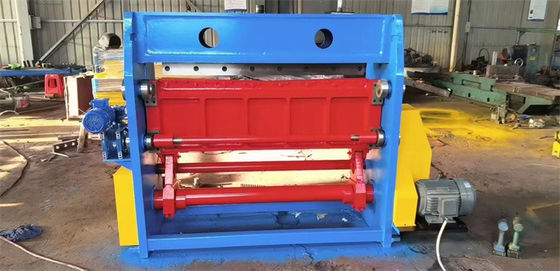

2+17 Roller Leveler: 4Hi Ф60 x 1350mm work rollers and 5rows backup rollers, mechanic worm gear and screw rod press down, leveling angle can beadjusted
Servo Length Measure (and Film Laminating): pair of pinch rollers driven by servo motor and controller, with PU coated pinch rollers for film laminating
Pneumatic Fast Stop Shear: crank shaft cutting from down to up, lower blade v shape.The gap between upper blade and lower blade is easily adjusted.
Hydraulic system: 7.5KW gear pump provides 12Mpa pressure.
Electric Control System: One electric cabinet and two operator panels
