High Speed Precision Flying Shear Cut To Length Line 0.3-3 X 1600

Large Image : High Speed Precision Flying Shear Cut To Length Line 0.3-3 X 1600

Product Details:

Place of Origin:	Wuxi, China
Brand Name:	Jinye
Model Number:	Fly(0.3-3) x 1600

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Packaging Details:	40HC x 3
Delivery Time:	120-150days
Payment Terms:	T/T

Contact Now

High Speed Precision Flying Shear Cut To Length Line 0.3-3 X 1600

Description

Name:	Flying Shear Cut To Length Line	Feature:	High Speed High Precision
Sheet Thickness:	0.3-3mm	Sheet Width:	600-1600mm
Coil ID:	508mm	Coil OD:	1800mm
Coil Weight:	20T	Cutting Speed:	Max 150 Cuts/min
Cutting Style:	Rotary Fly Shear	Leveler:	4Hi, 6hi
Total Power:	300KW	Land Area:	25m X 8m
Highlight:	Flying Shear Cut To Length Line , Precision Cut To Length Line 1600mm , cut to length line 3 X 1600

High Speed Precision Flying Shear Cut To Length Line

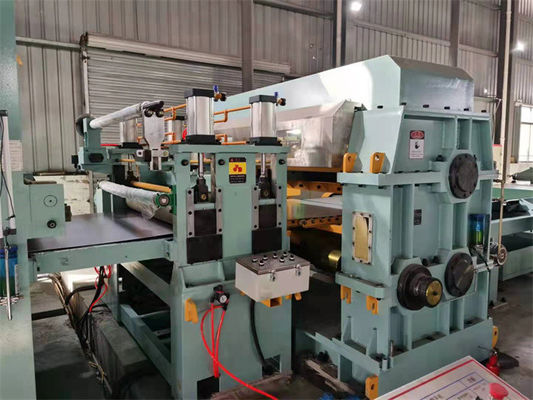

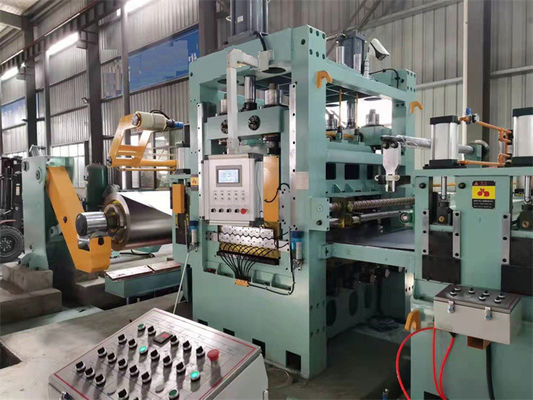

Flying Shear cut to length line is a kind of advanced cut to length machine, with characters of high speed high precision, esp. suitable for thin sheet metal cutting for the reasons:

Thin coil sheet length is long, i.g. a 0.3mm thick coil length is 10times length of 3mm coil, the faster line speed means higher weight production of cut sheets.
Thin sheet can be easily cut in one fast stroke, thus fly cutting is available: the sheet runs at stable speed, fly shear fast cut off a sheet while synchronously tracking the running sheet, the track cutting process takes about 0.5s, max cutting frequency can be up to 150times/min. The productivity can be linear 80m/min
The fly cutting is specially suitable for short sheets making, although the extremely short sheets take more time to precisely track and cut, its cutting frequency still can be around 100pcs/min.

Comparision of 3mm coil and 0.3mm coil:

	Coil specification	Sheet length	Cutting line speed	Cutting time per coil
0.3mm coil sheet	508mm ID,1250mm width, 15T	~5000m	50m/min	100mins
3mm coil sheet	508mm ID, 1250mm width, 15T	~500m	50m/min	10mins

Parameters:

Input Raw Material and Finished Product
Raw Materials	Hot / Cold Galvanized, Cold Rolled , Color Coated Coils
Mechanical Property	Tensile Strength σb≤460Mpa, σ0.2≤280Mpa
Thickness	0.2-2.0mm, 0.3-3.0mm
Width	500mm-1600mm(Max)
O.D.	≤Φ1500,1800mm
I.D.	Φ508mm (enlarge to Φ610mm with gaskets)
Max Weight	15tons, 20 tons
Sheet length	200 - 3000mm
Length Tolerance	L ₀ = 1M±0.3 mm (uniform velocity)
Length Tolerance	L ₀ = 1 M±0.4 mm (acceleration / deceleration)
Diagonal Length Tolerance	L ₁ = 1M±0.5mm
Stacking Height	650mm Max (wooden support approx 150mm high)
Max Stacking Weight	5 tons

	Flying CTL Parameters
1	Linear Speed	0-80 m/min
2	Threading Speed	0-15 m/min
3	Power Supply	380V / 50Hz / 3PH
4	Installed Power	About 300KW
5	Cross Cutting Way	Two Knives Fly Counter Cutting
5	Cross Cutting Way	Cutting Mechanism track cutting
6	Control Way	AC, CNC and PLC Control
7	Drive Motor	a. Decoiling Motor: AC 30KW b. Leveling Motor: AC 90KW
7	Drive Motor	c. Flying Shears Servo Motor: AC 110KW

Composition:

	Item	Qty
1	Loading Station	1
2	Loading Car	1
3	Decoiler	1
4	Precise Leveling Machine (19 Rollers)	1
5	Servo Feeding Device (Include Laminating Device)	1
6	Rotary High Speed fly Cutter	1
7	Three Stages Belt Conveyor	1
8	1^st Automatic sheets Gathering Machine	1
9	2^nd Automatic Gathering Machine	1
10	Hydraulic System	1
11	Pneumatic System	1
12	Lubricating System	1
13	Electrical System	1

High Speed Precision Flying Shear Cut To Length Line 0.3-3 X 1600 0
