High Precision Cut To Length Line Machine For Stainless Steel Coil Sheet

I'm Online Chat Now

High Precision Cut To Length Line Machine For Stainless Steel Coil Sheet

High Precision Cut To Length Line Machine For Stainless Steel Coil Sheet
High Precision Cut To Length Line Machine For Stainless Steel Coil Sheet High Precision Cut To Length Line Machine For Stainless Steel Coil Sheet

Large Image :  High Precision Cut To Length Line Machine For Stainless Steel Coil Sheet

Product Details:
Place of Origin: Wuxi, China
Brand Name: Jinye
Model Number: SS 2.0-6.0 x 2000
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Packaging Details: 5 X 40HC
Delivery Time: 120-180days
Payment Terms: L/C, T/T
Supply Ability: 5sets per year

High Precision Cut To Length Line Machine For Stainless Steel Coil Sheet

Description
Name: Stainless Steel Sheet Cut To Length Material: SUS201 , SUS304
Sheet Thickness: 2-6mm Sheet Width: 1000-2000mm
Sheet Length: 1500-9000mm Max Speed: 40m/min
Coil ID: 508mm, 610mm, 760mm Coil Weight: 30T
Length Tolerance: +/-0.5mm Flatness: 1.5mm/m2
Total Power: 360KW Land Area: 35m X 9m
Highlight:

SUS304 Cut To Length Line Machine

,

SUS201 Cut To Length Line Machine

,

Coil Sheet Cut To Length Line

High Precision Stainless Steel Sheet Cut To Length Line Machine


We make 2-6 x 2000 High precision Stainless steel (SUS201, SUS304) sheet cut to length line in advanced characters.

  1. Machines are high precision and robust, all passover rollers are PU coated, machine structure is double strong as normal steel sheet line.

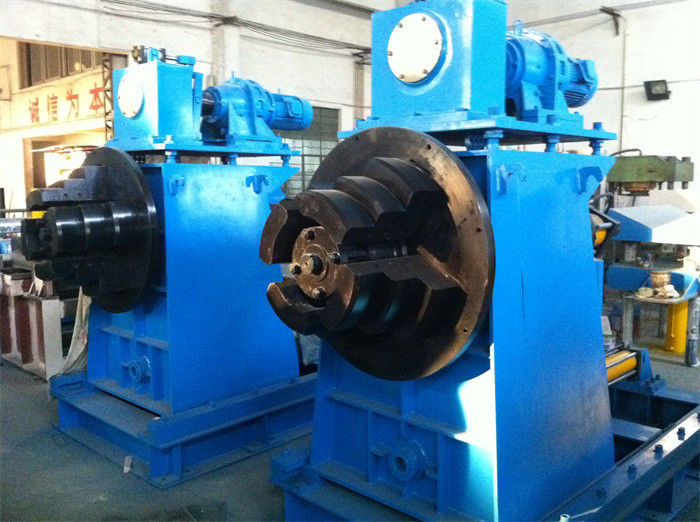

  2. Uncoiling stage: Include Coil storing saddle covered with PU rubber plate, Coil loading car with PU rubber plate,Single mandrel or double mandrel uncoiler, Coil head snubber roller, peeler shoveling plate
  3. Twice Levelers: five rollers pre leveler and 15 rollers fine levelers.
  4. Leveler drive is DC or AC motor, reducing gearbox, distribution gearbox and universal joints.
  5. Pit loop: before edge trimmer and main leveler,  rubber coated rollers of bridge plate to contact stainless steel sheet
  6. Servo cutting to length with track moving shear or stop pneumatic shear(and/or Film Laminating)
  7. Sheet Discharging: Belt Conveyor,pneumatic sheet receiving arms,X lifting table, exit car or roll table
  8. Automatic control: PLC and touch screen, push button panels with functions of emergency stop, alarm lamps, etc.

Stainless steel Coil sheet properties:

Stainless steel sheet is high quality steel, requires high precision high quality cut to length line machine
Stainless steel, such as SUS200, SUS300, SUS400 series, compared with normal carbon steel Yield strength ≤270Mpa Tensile strength≤465Mpa, stainless steel sheet strength Yield strength ≤500Mpa Tensile strength≤800Mpa


SUS series National grade ASTM grade TS(Mpa) YS(Mpa)
200
Cr-Mn-Ni
12Cr17Mn6Ni5N 201 720 390
  12Cr18Mn9Ni5N 202 680 356
300
Cr-Ni
  301 755 275
  0Cr18Ni9 304 680 320
  00Cr19Ni10 304L 560 270
  0Cr25Ni20 310S 655 310
  00Cr17Ni14Mo2 316L 560 290
400
Cr
1Cr13 410
    430 345 510




Market:

  • Stainless steel sheets are valuable steel, has more advantages than plain carbon sheet, its production is increasing and substituting the plain carbon sheet. This requires cut to length line to improve in precision and capacity for the stainless steel sheet making.
  • Edge trimming can be arranged before leveling and cutting, film laminating is often required before cutting.
  • Stainless steel sheet cut to length line is becoming firstly popular in China, with time the trend will enlarge abroad.

Composition and Parameters:

No. Composition Parameter / Configuration
1 Coil Saddle 30T
2 Double mandrel uncoiler Φ508. 610, 760mm, 3steps, 30T load
3 Pinch feeder and Five Roller Leveler Φ180 mm, 160KW
4 Hydraulic shear 6x 2000
5 Pit accumulator 4000mm length
6 Side guide and Edge Trimmer 3-8mm edge, 18.5KW x 2
7 Scrap winder and over roll table 11KW x 2
8 15 roller leveler 4Hi, 180KW
9 Final sheet sender, Encoder Rotary encoder
10 Servo track shear or Fast stop shear 90KW servo, 30KW hydraulic
11 Delivery belt 5000mm
12  Stacker and X table 9000mm
13  Hydraulic system  Rexroth valve, Yuken pump
14 Electric control system DC or AC Drive cabinet, three operator panels.


High Precision Cut To Length Line Machine For Stainless Steel Coil Sheet 0
High Precision Cut To Length Line Machine For Stainless Steel Coil Sheet 1
High Precision Cut To Length Line Machine For Stainless Steel Coil Sheet 2
