High Frequency Welding Steel Pipe Tube Making Machine HG 25

Description

Name:	High Frequency Welding Steel Pipe Tube Making Machine	Input:	Low Carbon, Low Alloy Steel Coils
Output:	15-38 Round Pipes	Producing Speed:	140m/min
Land Area:	35m X 4m	HF Welder:	Solid State 150KW
Cutting:	Cold Saw	Tooling:	Cr12 Rollers
Forming Technology:	ERW	Roller Shaft:	Horizontal 40mm
Highlight:	Pipe Tube Making Machine HG 25 , Welding Steel Pipe Making Machine , 140m/min Steel Tube Making Machine

High Frequency Welding Steel Pipe Tube Making Machine ( HG 25)

This high-frequency welding Steel pipe mill is specialized equipment to produce high frequency straight seam welded pipes for structural pipe and industrial pipe with Φ15mm~Φ38mm and wall thickness of 0.6~1.2mm. Through optimization design, best materials choice, and accurately fabrication and rollers, the whole line can be reached high precision and high speed. Within suitable range of pipe diameter and wall thickness, pipe production speed can be adjusted.

HG25 Pipe Mill Specification:

Composition	Configuration	Parameters

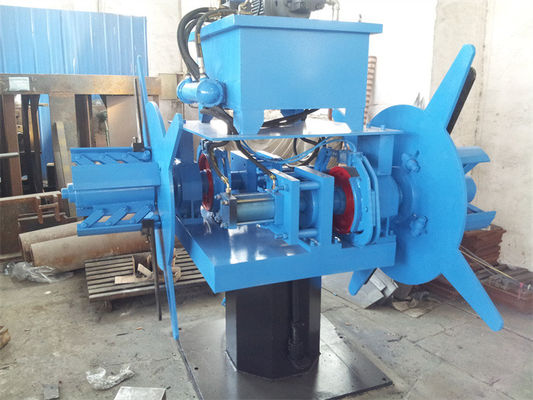

Uncoiler	Double heads manual expansion	0.6- 1.2 x 40-120mm ID508, OD1600 1T
shear and welder	Automatic Hydraulic shear, Argon arc welding	H13 blades, 1.5 x 150mm,16~150A
Vertical Cage accumulator	Pinch feeding into cage and passive coming out	5m x 2.4m cage feeding 200m/min, 2.2KW

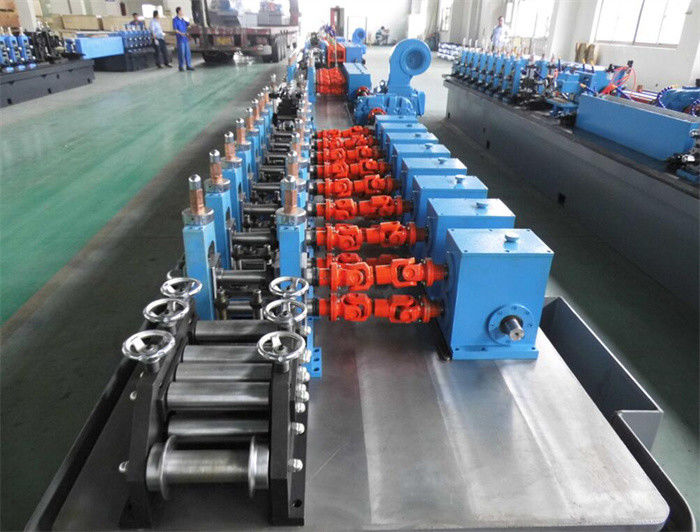

Forming machine	breakdown forming and fin-pass forming	8sets horizontal rolls, 11vertical rolls 55KW
Welding and cooling	seam guide, HF welding squeezing, deburring, cooling	turks seams guide,150KW solid state welder, 2rolls squeezing, 2pcs burrs scraping, 1m cooling tank
Sizing machine	horizontal,vertical rollers and linear adjusting	5 vertical rolls, 5 horizontal rolls and 4 rollers adjusting from top & bottom and 4 rollers from left & right
Fly cutting saw	Cold cutting, hot friction optional	Φ13~Φ38mm x 10m, OD350mm×ID50mm×2.5~3.0mm saw blade, 20KW
Output roll table	two sides run out	12m
Total power		250KW

ERW Pipe Mills Specification:

Model	Pipe size	HF welder (KW)	Motor power(KW)	Speed (m/min)
Model	Фmm x mm	HF welder (KW)	Motor power(KW)	Speed (m/min)
HG16	Ф(7-20) x (0.2-0.5)	60	22	80-140
HG25	Ф(8-32)x(0.35-1.3)	100	45	70-130
HG32	Ф(15-50) x (0.6-2.0)	150	110	60-120
HG50	Ф(20-63)x(0.8-2.5)	200	160	50-100
HG63	Ф(20-76)x(0.8-3.0)	250	200	30-90
HG76	Ф(25-80) x (1.2-4.0)	300	110x2	30-80
HG89	Ф(32-102)x(1.5-4.5)	300	132 x 2	30-80
HG114	Ф(38-127) x (1.5-4.5)	300	160 x 2	30-70
HG125	Ф(50-165)x(2.0-5.0)	400	185x2	20-60
HG165	Ф(76-165)x(2.0-6.0)	600	200x2	15-50

Configuration of pipe mill electric system

1.Pipe forming and sizing by DC motor controlled by Parker or Siemens DC driver
2.High frequency welding equipment: Baoding
3.Flying saw control system is Contor, Xintong
4.One operator console for uncoiler and accumulator
5. One central console for pipe mill and one panel for cutting saw.
