Straight Seam ERW Pipe Making Machine Welded Steel Pipe Mill Production Line HG 32

Large Image : Straight Seam ERW Pipe Making Machine Welded Steel Pipe Mill Production Line HG 32

Product Details:

Place of Origin:	Wuxi, China
Brand Name:	Jinye
Model Number:	HG32 Pipe Mill

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Packaging Details:	3x 40HC
Delivery Time:	100-150Days
Payment Terms:	T/T

Contact Now

Straight Seam ERW Pipe Making Machine Welded Steel Pipe Mill Production Line HG 32

Description

Name:	Straight Seam ERW Welded Steel Pipe Mill Production Line	Input:	Mild Steel, Low Alloy Steel Strips
Output:	13 - 38mmpipes	Producing Speed:	50-120m/min
Land Area:	50m X 6m	HF Welder:	Solid State 200KW
Cutting:	Hot Fly Saw	Tooling:	Cr12 Rollers
Forming Technology:	Roll Forming And ERW	Roller Shaft:	Horizontal 45mm
Highlight:	120m/min ERW Pipe Making Machine , 50m/min ERW Pipe Making Machine , Welded Steel Pipe Mill HG 32

Straight Seam ERW Welded Steel Pipe Mill Production Line ( HG 32 )

HG32 Pipe Mill Specification:

Raw material
low carbon steel, low alloy steel, HR or CR. Tensile strength: σb≤600Mpa Yield point: σs≤315MPa 0.6-1.8 x φ13-38mm, ID508mm OD1600mm, 1.5T
Finished Pipes
Round pipe size: Φ15mm~Φ50mm * 0.6mm~2.0mm. Square, rectangular pipe size: 10×10mm~30×30mm * 0.6mm~1.8mm  7×14mm~20 × 40mm * 0.6mm~1.5mm (a:b≤2:1) Producing length: 4~10m (can be designed by customer request) Cutting length precision: ±3mm (by hot friction computer saw)
Machine Parameters

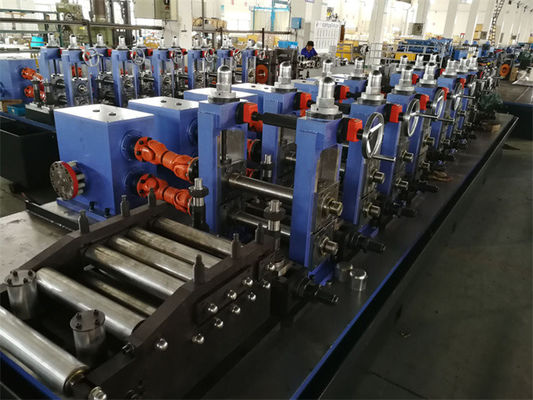

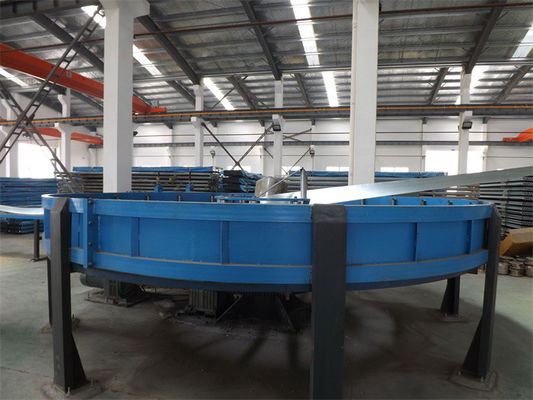

Double heads Decoiler, double heads hydraulic expansion, air brake Shear & butt welding device, automatic 16-150A Vertical accumulator, 5.0 x 2.4m, 200m/min feeding Forming & Sizing unit, 90KW DC, 8+5 horizontal rollers, 11+5 vertical rolls Hot friction flying saw, Φ400×35×3.0 saw blade, 26KW Run out table (double sides discharging),2.2KW 200KW HF welder, 1 set Rollers,according to customers pipe sizes Total installation power: 320KW Line speed: 120m/min

ERW Pipe Machines Specification:

Model	Pipe size	HF welder (KW)	Motor power(KW)	Speed (m/min)
Model	Фmm x mm	HF welder (KW)	Motor power(KW)	Speed (m/min)
HG16	Ф(7-20) x (0.2-0.5)	60	22	80-140
HG25	Ф(8-32)x(0.35-1.3)	100	45	70-130
HG32	Ф(15-50) x (0.6-2.0)	150	110	60-120
HG50	Ф(20-63)x(0.8-2.5)	200	160	50-100
HG63	Ф(20-76)x(0.8-3.0)	250	200	30-90
HG76	Ф(25-80) x (1.2-4.0)	300	110x2	30-80
HG89	Ф(32-102)x(1.5-4.5)	300	132 x 2	30-80
HG114	Ф(38-127) x (1.5-4.5)	300	160 x 2	30-70
HG125	Ф(50-165)x(2.0-5.0)	400	185x2	20-60
HG165	Ф(76-165)x(2.0-6.0)	600	200x2	15-50

Straight Seam ERW Pipe Making Machine Welded Steel Pipe Mill Production Line HG 32 0
