Galvalized Steel ERW Pipe Making Machine Black Steel ERW Welded Pipe Mill Line HG 50

Large Image : Galvalized Steel ERW Pipe Making Machine Black Steel ERW Welded Pipe Mill Line HG 50

Product Details:

Place of Origin:	Wuxi, China
Brand Name:	Jinye
Model Number:	Galvanized HG50

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Packaging Details:	3 x 40HC
Delivery Time:	120-150Days
Payment Terms:	T/T

Contact Now

Galvalized Steel ERW Pipe Making Machine Black Steel ERW Welded Pipe Mill Line HG 50

Description

Name:	Galvalized Steel Black Steel ERW Welded Pipe Mill Line	Input:	Black Steel, Galvanized Steel Strips
Output:	Φ20~Φ63 Pipes	Producing Speed:	30-100m/min
Land Area:	60m X 6m	HF Welder:	Solid State 250KW
Cutting:	Fly Saw	Tooling:	Cr12 Rollers
Forming Technology:	7 + 6 Horizontal Rolls	Roller Shaft:	Horizontal 65mm
Highlight:	Galvalized Steel ERW Pipe Making Machine , Black Steel ERW Pipe Making Machine , ERW Welded Pipe Mill Line

Galvalized Steel Black Steel ERW Welded Pipe Mill Line (HG50)

Configuration of pipe mill line

1.Pipe forming and sizing by DC motor controlled by Parker DC driver
2.High frequency welding equipment: Baoding Redstar
3.Flying saw: hot friction or cold cutting
4. Horizontal Spiral accumulator and its operator panel
5. Rollers are D2 or D3

Sepcification of HG 50 Pipe Production Line:

Raw material
low carbon steel, low alloy steel, HR or CR. Tensile strength: σb≤600Mpa Yield point: σs≤315MPa 0.8 - 3.0 x φ 20 - 63mm, ID508mm OD1600mm, 3T
Finished Pipes
Round pipe size: Φ20mm ~ Φ63mm * 0.8 mm~ 3.0mm. Square, rectangular pipe size: 15×15mm~60×40mm * 0.8mm~2.5mm(a:b≤2:1) Producing length: 4~10m (can be designed by customer request) Cutting length precision: ±3mm (by hot friction computer saw)
Machine Parameters
Double heads Decoiler, double heads hydraulic expansion, air brake Shear & butt welding device, automatic 16-150A Horizontal spiral accumulator, Φ4m, 200m/min feeding Forming & Sizing unit, 160KW DC, 8+6 horizontal rollers, 9+6 vertical rolls Hot friction flying saw, φ500×65×3 saw blade, 26KW Run out table (double sides discharging),2.2KW 250KW HF welder, 1 set Rollers,according to customers pipe sizes Total installation power: 420KW Line speed: 30-100m/min

ERW Pipe Machines Specification:

Model	Pipe size	HF welder (KW)	Motor power(KW)	Speed (m/min)
Model	Фmm x mm	HF welder (KW)	Motor power(KW)	Speed (m/min)
HG16	Ф(7-20) x (0.2-0.5)	60	22	80-140
HG25	Ф(8-32)x(0.35-1.3)	100	45	70-130
HG32	Ф(15-50) x (0.6-2.0)	150	110	60-120
HG50	Ф(20-63)x(0.8-2.5)	200	160	50-100
HG63	Ф(20-76)x(0.8-3.0)	250	200	30-90
HG76	Ф(25-80) x (1.2-4.0)	300	110x2	30-80
HG89	Ф(32-102)x(1.5-4.5)	300	132 x 2	30-80
HG114	Ф(38-127) x (1.5-4.5)	300	160 x 2	30-70
HG125	Ф(50-165)x(2.0-5.0)	400	185x2	20-60
HG165	Ф(76-165)x(2.0-6.0)	600	200x2	15-50

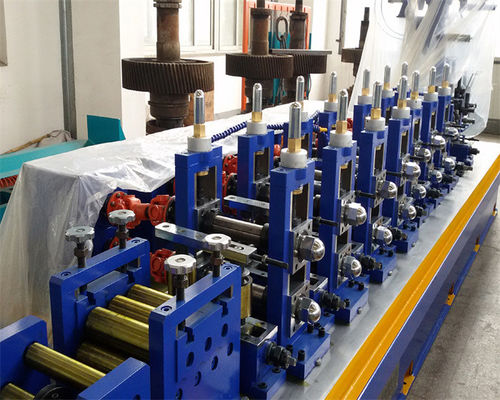

Galvalized Steel ERW Pipe Making Machine Black Steel ERW Welded Pipe Mill Line HG 50 0

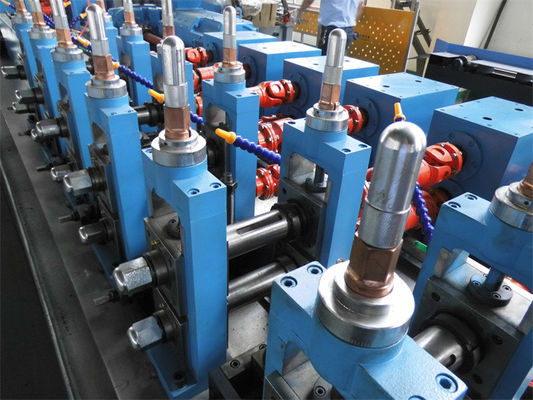

Galvalized Steel ERW Pipe Making Machine Black Steel ERW Welded Pipe Mill Line HG 50 1

Tag:

ERW Pipe Making Machine,

Pipe Welding Tube Mill Line,

High Frequency ERW Pipe Making Machine

Contact Details

WUXI JINYE COMPLETE EQUIPMENT CO.,LTD.

Contact Person: Mrs. Megan Yan

Tel: 86-18951513765

Fax: 86-510-88159195
