Straight Seam Welding Galvalized Steel Black Steel Tube Mill Line HG 60

Large Image : Straight Seam Welding Galvalized Steel Black Steel Tube Mill Line HG 60

Product Details:

Place of Origin:	Wuxi, China
Brand Name:	Jinye
Model Number:	Galvanized HG60

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Packaging Details:	3 x 40HC
Delivery Time:	120-150Days
Payment Terms:	T/T

Contact Now

Straight Seam Welding Galvalized Steel Black Steel Tube Mill Line HG 60

Description

Name:	Straight Seam Welding Steel Tube Mill Line	Input:	Black Steel, Galvanized Steel Coil
Output:	Φ20~Φ63.5 X 3mm Pipes	Producing Speed:	30- 80m/min
Land Area:	60m X 6m	HF Welder:	Solid State 250KW
Cutting:	Computer Fly Saw	Tooling:	Cr12 Rollers
Forming Technology:	7 + 5 Horizontal Rolls	Roller Shaft:	Horizontal 65mm
Highlight:	Galvalized Steel Tube Mill Line , Black Steel Tube Mill Line , erw pipe mill HG 60

Straight Seam Welding Galvalized Steel Black Steel Tube Mill Line ( HG 60 )

Configuration of pipe mill line

1.Pipe forming and sizing by DC motor controlled by Parker DC driver
2.High frequency welding equipment: Baoding Redstar
3.Flying saw: hot friction or cold cutting
4. Horizontal Spiral accumulator and its operator panel
5. Rollers are Cr12 (D3) HRC 60 ± 2

Sepcification of HG 60 Pipe Production Line:

Raw material
low carbon steel, low alloy steel, HR or CR. Tensile strength: σb≤600Mpa Yield point: σs≤315MPa 0.8 - 3.0 x φ 20 - 63.5mm, ID508mm OD1600mm, 3.5T
Finished Pipes
Round pipe size: Φ20mm ~ Φ63.5mm * 0.8 mm~ 3.0mm. Square, rectangular pipe size: 15×15mm~50×50mm * 0.8mm~3.0mm(a:b≤2:1) Producing length: 4~10m (can be designed by customer request) Cutting length precision: ±3mm (by hot friction computer saw)
Machine Parameters
Double heads Decoiler, double heads hydraulic expansion, air brake Shear & butt welding device, automatic 16-200A Horizontal spiral accumulator, Φ4.5m, 150m/min feeding Forming & Sizing unit, 160KW DC, 8+5 horizontal rollers, 9+5 vertical rolls Hot friction flying saw,Φ500×70×3.0 saw blade, 30KW Run out table (double sides discharging),2.2KW 250KW High frequency welder, 1 set Rollers,according to customers pipe sizes Total installation power: 450KW Line speed: 30-80m/min

ERW Pipe Machines Specification:

Model	Pipe size	HF welder (KW)	Motor power(KW)	Speed (m/min)
Model	Фmm x mm	HF welder (KW)	Motor power(KW)	Speed (m/min)
HG16	Ф(7-20) x (0.2-0.5)	60	22	80-140
HG25	Ф(8-32)x(0.35-1.3)	100	45	70-130
HG32	Ф(15-50) x (0.6-2.0)	150	110	60-120
HG50	Ф(20-63)x(0.8-2.5)	200	160	50-100
HG63	Ф(20-76)x(0.8-3.0)	250	200	30-90
HG76	Ф(25-80) x (1.2-4.0)	300	110x2	30-80
HG89	Ф(32-102)x(1.5-4.5)	300	132 x 2	30-80
HG114	Ф(38-127) x (1.5-4.5)	300	160 x 2	30-70
HG125	Ф(50-165)x(2.0-5.0)	400	185x2	20-60
HG165	Ф(76-165)x(2.0-6.0)	600	200x2	15-50

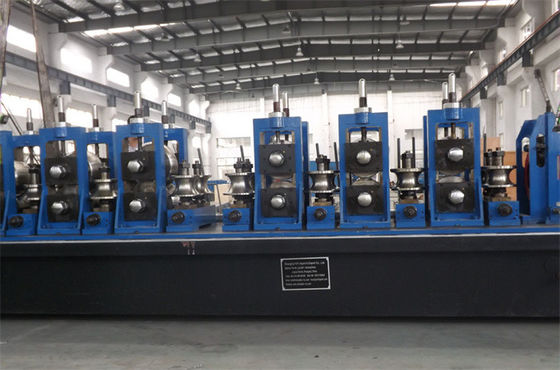

Straight Seam Welding Galvalized Steel Black Steel Tube Mill Line HG 60 0

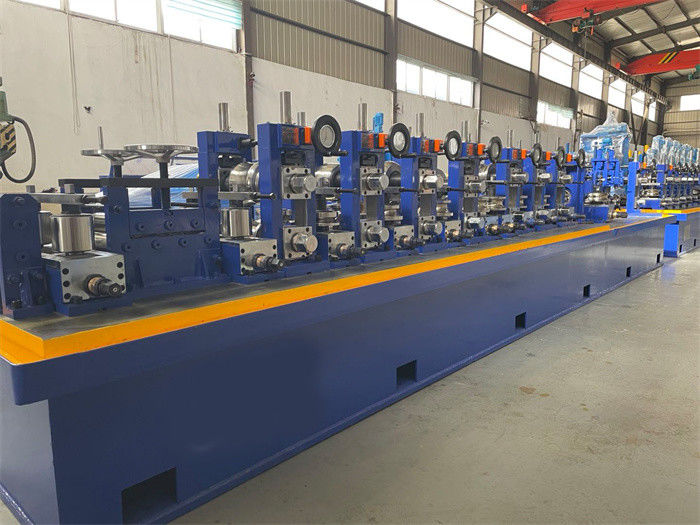

Straight Seam Welding Galvalized Steel Black Steel Tube Mill Line HG 60 1
