Heavy Duty Steel Pipe Welding Machine ERW Tube Mill Machine HG 165

Large Image : Heavy Duty Steel Pipe Welding Machine ERW Tube Mill Machine HG 165

Product Details:

Place of Origin:	Wuxi, China
Brand Name:	Jinye
Model Number:	HG 165

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Packaging Details:	7 x 40HC
Delivery Time:	120-150Days
Payment Terms:	T/T

Contact Now

Heavy Duty Steel Pipe Welding Machine ERW Tube Mill Machine HG 165

Description

Name:	Heavy Duty Steel Pipe Welding ERW Tube Mill Machine	Input:	HR CR Steel Strips
Output:	Φ76~Φ165 Pipes	Producing Speed:	20- 50m/min
Land Area:	80m X 8m	HF Welder:	Solid State 500KW
Cutting:	Fly Cutting Saw	Tooling:	Cr12, H13 Rollers
Forming Technology:	7 + 5 Horizontal Rollers	Roller Shaft:	Horizontal 120mm
Total Power:	1000KW	Zinc Spraying:	Optional
Highlight:	Heavy Duty Steel Pipe Welding Machine , 50m/min Steel Pipe Welding Machine , ERW Tube Mill Machine HG 165

Heavy Duty Steel Pipe Welding ERW Tube Mill Machine ( HG 165)

Uncoiling→Strip Straightening→ shear & welding table→ Accumulating→ Leveling→ Forming→ HF welding→ Deburring (outer) →(Zinc spraying) →Cooling→ Sizing→ Pipe Straightening→ Cutting→ Discharging

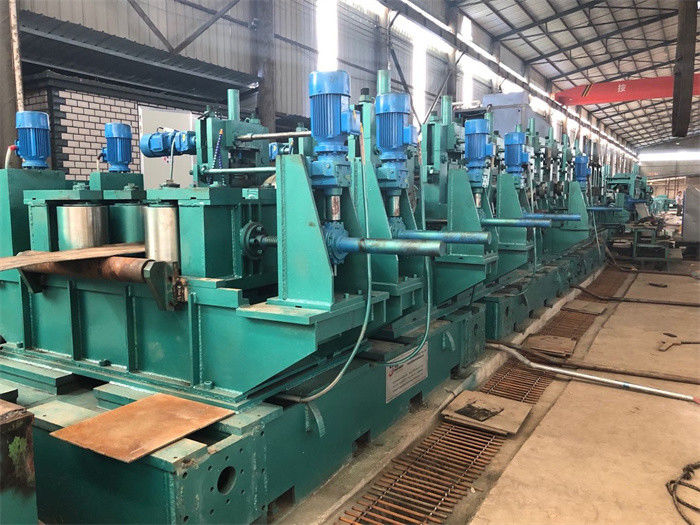

Horizontal roll frame & Vertical roll frame:

Name	Section	Quantity	Shaft dia.	Material	Treatment
Horizontal roll frame	Forming unit	7	Φ120mm	40Cr	HF quenching
Horizontal roll frame	Sizing unit	5	Φ120mm	40Cr	HF quenching

Name	Section	Quantity	Shaft dia.	Material	Treatment
Vertical roll frame	Forming unit	8	Φ65mm	40Cr	HF quenching
Vertical roll frame	Sizing unit	5	Φ65mm	40Cr	HF quenching

Sepcification of HG 89 Pipe Production Line:

Raw materials
low carbon steel, low alloy steel, HR or CR. Tensile strength: σb≤600Mpa Yield point: σs≤315MPa 2.0-6.0 x 520mm, ID508mm OD1800mm, 8T
Finished Pipes
Round pipe size: Φ76~Φ165mm * 2mm~ 6mm Square, rectangular pipe size: 60×60mm~130×130mm * 2.5mm~5.0mm 40×80mm~80 × 160mm * 2.5mm~5.0mm Producing length: 4~10m (can be designed by customer request) Cutting length precision: ±3mm (by hot friction computer saw)
Machine Parameters

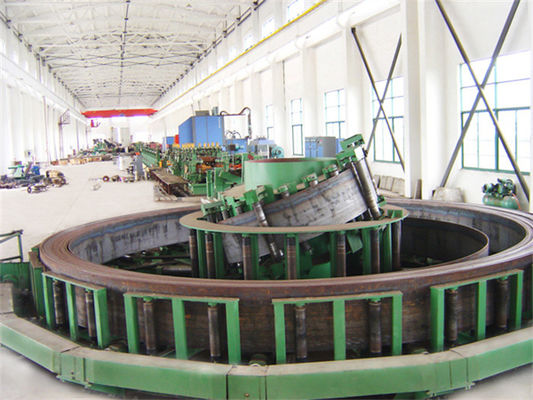

 Decoiler, hydraulic expansion, air brake, 8T load Coil head opener and straightener: 18KW Shear & butt welding device, automatic 16-400A Spiral accumulator, 7m, 120m/min feeding, 100KW Forming & Sizing unit, 200KW x 2 DC, 7+5 horizontal rollers, 9+5 vertical rolls, three 4-rolls turks head. seam guide(turks head type), 3rolls squeeze roller, 2 scraping knives. Hot friction flying saw, Φ800×80× 6.0 saw blade, 105KW Run out table, 7.5KW automatic stacker and packer available. 500KW HF welder, 1 set Rollers,according to customers pipe sizes Total installation power: 1000KW Line speed: 50m/min

ERW Pipe Machines Specification:

Model	Pipe size	HF welder (KW)	Motor power(KW)	Speed (m/min)
Model	Фmm x mm	HF welder (KW)	Motor power(KW)	Speed (m/min)
HG16	Ф(7-20) x (0.2-0.5)	60	22	80-140
HG25	Ф(8-32)x(0.35-1.3)	100	45	70-130
HG32	Ф(15-50) x (0.6-2.0)	150	110	60-120
HG50	Ф(20-63)x(0.8-2.5)	200	160	50-100
HG63	Ф(20-76)x(0.8-3.0)	250	200	30-90
HG76	Ф(25-80) x (1.2-4.0)	300	110x2	30-80
HG89	Ф(32-102)x(1.5-4.5)	300	132 x 2	30-80
HG114	Ф(38-127) x (1.5-4.5)	300	160 x 2	30-70
HG125	Ф(50-165)x(2.0-5.0)	400	185x2	20-60
HG165	Ф(76-165)x(2.0-6.0)	600	200x2	15-50

Heavy Duty Steel Pipe Welding Machine ERW Tube Mill Machine HG 165 0
