Product Details:
|
| Material: | Hot Rolled, Cold Rolled, GI Coil Sheet | Coil Width: | 600-1600 |
|---|---|---|---|
| Coil Thickness: | 1-8 | Coil Weight: | 15-30T |
| Coil ID, OD: | 508/610mm, 2000mm | Number Of Slitting: | 8mm X 6strips |
| Slitting Speed: | 0-60-120m/min | Fast Tooling: | Double Slitters, Turret |
| Land Area: | 33m X 10m | Total Power: | 440KW |
| Recoil Mandrel: | 610mm | Slit Tolerance: | +/-0.20mm |
| High Light: | automatic steel sheet slitting line,Heavy Gauge slitting line 1600mm,Jinye Equipment Precision Slitting machine |
||
Precision Heavy Gauge Sheet Steel Slitting Line of Jinye Equipment
Precision Steel Slitting Line hot sale equipment, heavy gauge slitting line is equipment of high precision automation, either double slitters(twin or one big & one small), or fast tooling change turret are optional configuration, fast tooling is offline without bothering online slitting work, good to improve slitting line production.
Heavy gauge Slitting lines:
6 x 1600 -1800mm 120mpm steel coil precision slitting line
8 x 1600 -2000mm 100mpm precision steel slitting lines
10 x 1600 -2000mm 60mpm precision slitting lines
12 x 1600 -2000mm 40mpm slitting line machines
The slitting tools are different from small gauge slitting lines, and the change process of the tools requires more automatic to reduce human load.
Double heads slitting lines cases:
| Steel Slitting Lines | Make year | Market |
| 3x1250 double heads | 2019 | Philippines |
| 4x1850 double heads | 2014 | South Africa |
| 3 x 1600 double slitters | 2018 | Indonesia |
| 3/6 x 1600 double slitters | 2013 | Indonesia |
| 3x2000 double slitting heads | 2019 | Vietnam |
| 6x1700 double slitting heads | 2021 | Russia |
| 6x2000 twin slitters | 2018 | India |
| 8x2000 twin slitters | 2019 | Algeria |
| 8x2000 fast tooling change | 2022 | Russia |
| 4x1650 fast tooling change | 2022 | Malaysia |
| 3x1600 twin slitters | 2020 | Domestic |
| 4 x1600 twin slitters | 2021 | Domestic |
Composition and Parameters:
| No. | Composition | Parameters |
| 1 | Feeding Coil car | 15-30T |
| 2 | Double mandrel uncoiler | Φ508 -610 -760mm, 30T load |
| 3 | Pinch feeder and Five Roller Leveler | Φ180 mm, 45KW |
| 4 | Hydraulic shear | 8x 1600 |
| 5 | Pit accumulator 1 | 4000mm length |
| 6 | side guide and Pres Roller | 300-1600mm wide |

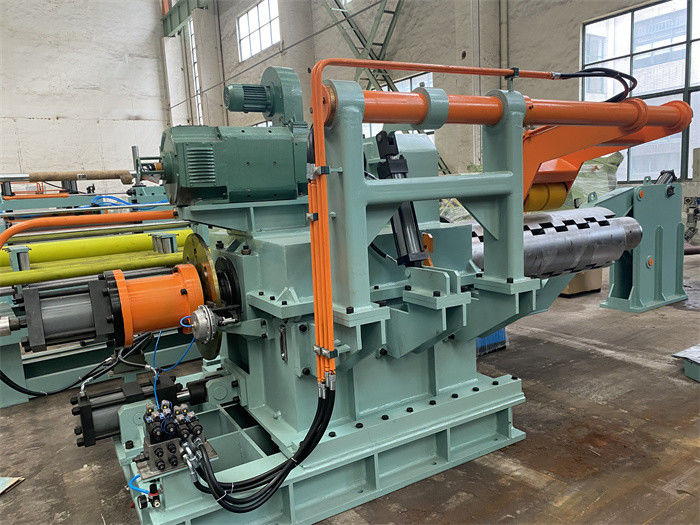

| 7 |
slitting machine (twin heads fast exchange) |
Φ280mm, 160KW +4KW x 3 |
| 8 | edge scrap winder and Strips tails Press | 7.5KW x 2 |
| 9 | Pit accumulator 2 | 5000mm length, 5000mm depth |
| 10 | Pre-separator, Tensioner, balancing roller |
Twice separating, wool felt and rolls tension, Φ320mm deflection roller |

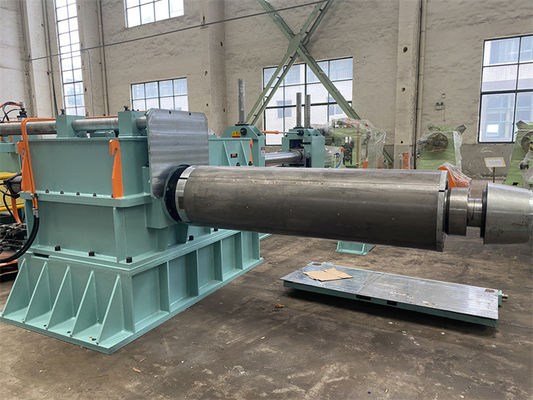

| 11 | ReCoiler (with separating discs, pusher) | Φ610mm, 200KW, 30T load |
| 12 | Coils discharging trolley | 30T |
| 13 | Hydraulic system | Rexroth valves, Yuken pump |
| 14 | Electrically control system | Parker DC drive, Siemens PLC and touch screen, protection circuits |
