Product Details:
|
| Name: | Heavy Gauge Double Levelers Cut To Length | Material: | Hot Rolled Q235, Q195, Q345, S355 |
|---|---|---|---|
| Sheet Thickness: | 1.5-12mm | Sheet Width: | 1000-2000mm |
| Sheet Length: | 2000-12000mm | Cutting Speed: | 8pcs/min X 2m |
| Coil ID: | 500 - 800mm | Coil Weight: | 30T |
| Length Tolerance: | +/-1.5mm | Flatness: | 2mm/m2 |
| Total Power: | 300KW | Land Area: | 40m X 10m |
| High Light: | HR Steel Sheet Coil Cutting Line,Heavy Gauge Coil Cutting Line,Double Levelers Cut To Length Line |
||

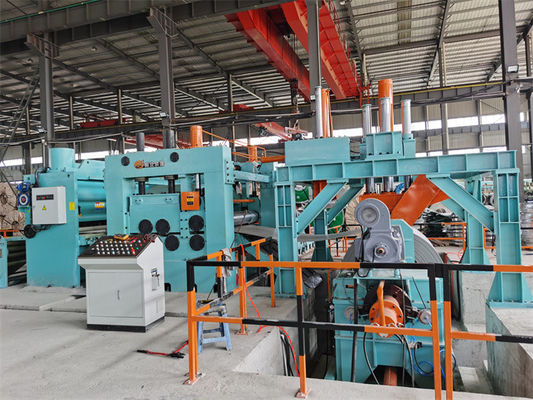

Heavy Gauge HR Steel Sheet Double Levelers Cut To Length Line
Heavy Gauge HR Steel sheet is carbon steel sheets Q235, Q345, S355, Yield strength ≤270Mpa Tensile strength≤465Mpa, the leveler cut to length line is heavy duty including decoiler, one or double levelers, shear, convey roll table and stacker. The sheet length measuring is encoder in encoding roller installed on leveler. For HR sheets, stacker is simple structure: pinch rolls sends sheet on stacking rack and then pushers push the sheet neat. Double levelers mean pre leveler for rough leveling and main leveler for fine leveling, pre leveler is 2 hi, fine leveler is four high, the synchronization between them are controlled by speed controllers under PLC.
Composition and Parameters:
| No. | Composition | Parameter / Configuration |
| 1 | Coil Saddle | 20-30T |
| 2 | Double mandrel uncoiler | Φ500-800 mm, 30T load |
| 3 | Pinch feeder and Five Roller Leveler | Φ220 mm, 55 -75KW |
| 4 | Pit accumulator | 6000mm |
| 5 | Side guide 1#(optional) | Hydraulic 1000-2000mm |
| 6 | Edge Trimmer (optional) |
Separate body, frequency control, 3-8mm edge |
| 7 | Scrap winder and over roll table(optional ) | Scrap guide, hydraulic push winder |
| 8 | Side guide 2# | Hydraulic 1000-2000mm |
| 9 | 11 roller leveler | 4Hi, 132KW, Φ190 mm |
| 10 | Rotary encoder | Rep, Omron |
| 11 | Hydraulic Shear | Heavy duty, 22KW |
| 12 | Roll table | 4000mm |
| 13 | Stacker | simple rack type, 12m |
| 14 | Hydraulic system | Vitory valves, Yuken pump |
| 15 | Electrically control system | Parker DC drive, Siemens PLC and HMI |
Characters:
1.Uncoiler / Decoiler
heavy cut to length line handle heavy steel coils of heavy gauge. the uncoiler has double mandrels and strong sliding bases.
Each mandrel has three steps, the opening and closing of two mandrels by hydraulic cylinders.
Back tension mechanism installed on top of uncoiler base, to ensure uncoiling stability.
2. Portal frame coil head opener
Portal frame is very strong, with snubber press roller ,straightening roller on top of the frame.
the hydraulic snubber roll press on top of steel coil, and its pressing-down angle is adjustable
Straightening roller can slide forward backward to track strip head and straighten it.
Shoveling plate installed on preleveler support the coil head while straighten roller press coil head.

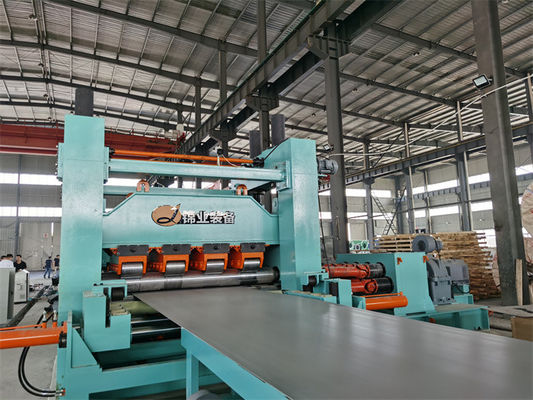

3. first 2+5 pre leveler
the roller is huge and strong,reliefing internal stress of steel coil, roller surface is hardened and chrome coated
To relief the uncoiling bending stress to relaxed state.

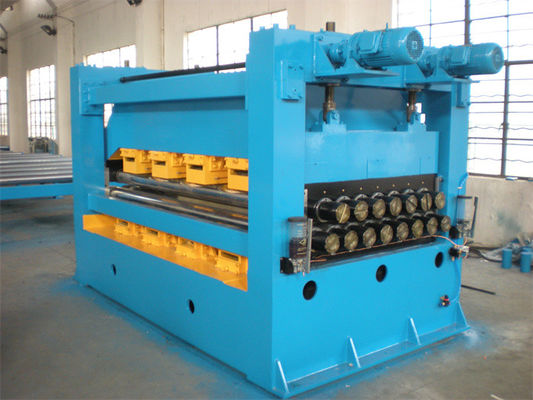

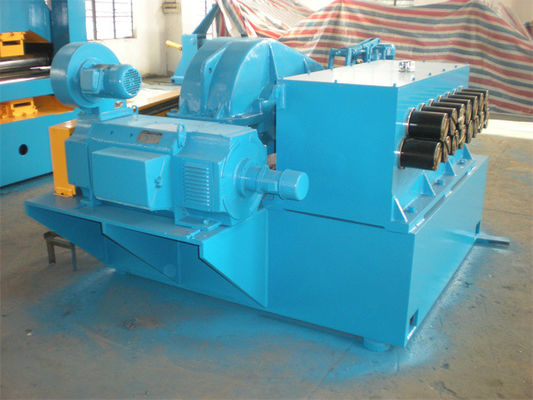

4. Heavy duty leveler
number of heavy duty leveler will be 13pcs, 11pcs, 9ocs, diameter of rollers will be 180mm -230mm -300mm,
The gap and angle of upper rollers and lower rollers can be adjusted.
No stop leveling, the leveler continuously working without pressing steel plate while synchro cutting, this is good for protecting steel plate surface without leaving roller mark
When shear is stop cutting, the leveler is clutched and stopped under encoder measuring.
5. Hydraulic shear
Track Shear: Synchro High frequency cutting and strong frame, strong hydraulic station for shearing, big servo motor for synchro tracking steel plate running.
Hydraulic rocking shear is stop cutting under encoder measuring.
6. Automatic control, the whole process is under PLC control in auto mode.
