Product Details:
|
| Name: | Light Gauge Rotary Shear Fly Cut To Length Line | Feature: | High Speed High Precision Fly Cutting |
|---|---|---|---|
| Material: | CRC, GI, PPGI, SS | Sheet Thickness: | 0.3-3mm |
| Sheet Width: | 500-1600mm | Coil ID: | 508mm |
| Coil OD: | 2000mm | Coil Weight: | 20-25T |
| Cutting Length: | 200 -4000mm | Cutting Speed: | 100pcs Per Min X 600mm |
| Cutting Style: | Rotary Shear | Leveler: | 4Hi, 6hi |
| Total Power: | 300KW | Land Area: | 30m X 8m |
| High Light: | Cut To Length Line Machine 3 X 1600,Light Gauge Cut To Length Line Machine,Rotary Shear Fly cut to length line |
||

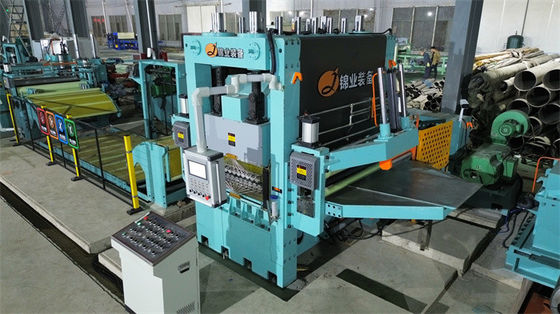

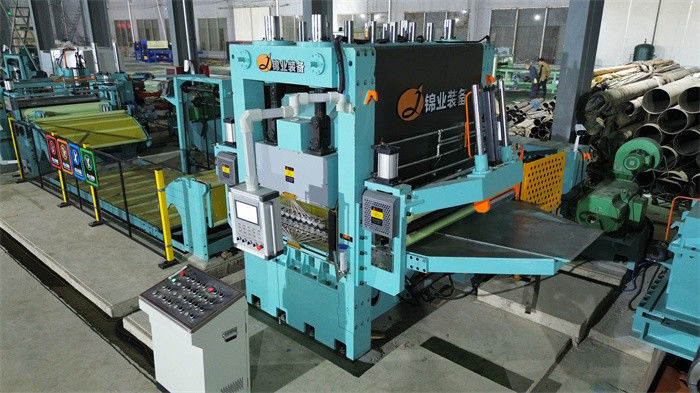

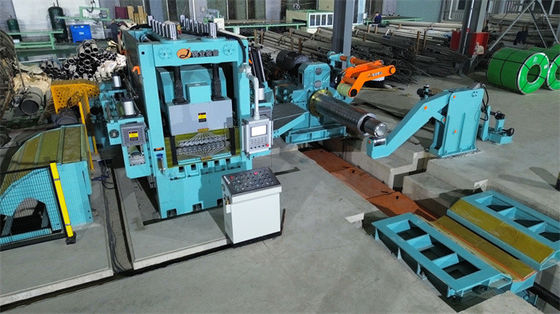

Light Gauge Rotary Shear Fly Cut To Length Line Machine ( 3 x 1600)
Rotary Shear fly cut to length line is advanced high speed high precision cut to length machine , suitable for light gauge sheet metal cutting:
Comparision of 2mm coil and 0.2mm coil:
| Coil specification | Sheet length | Cutting line speed | Cutting time per coil | |
| 0.2mm coil sheet | 508mm ID,1250mm width, 15T | ~7500m | 80m/min | 95mins |
| 2mm coil sheet | 508mm ID, 1250mm width, 15T | ~750m | 80m/min | 9.5mins |
Parameters:
| Input Raw Material and Finished Product | |
| Raw Materials | Cold Galvanized, Cold Rolled , Color Coated Coils |
| Mechanical Property | Tensile Strength σb≤460Mpa, σ0.2≤280Mpa |
| Thickness | 0.3-3.0mm, |
| Width | 500mm-1600mm(Max) |
| O.D. | ≤Φ1800mm |
| I.D. | Φ508mm (enlarge to Φ610mm with gaskets) |
| Max Weight | 15tons, 20 tons |
| Sheet length | 200 - 4000mm |
| Length Tolerance | L 0 = 1M±0.3 mm (uniform velocity) |
| L 0 = 1 M±0.4 mm (acceleration / deceleration) | |
| Diagonal Length Tolerance | L 1 = 1M±0.5mm |
| Stacking Height | 650mm Max (wooden support approx 150mm high) |
| Max Stacking Weight | 5 tons |
| Flying CTL Parameters | ||
| 1 | Linear Speed | 0-80 m/min |
| 2 | Threading Speed | 0-15 m/min |
| 3 | Power Supply | 380V / 50Hz / 3PH |
| 4 | Installed Power | About 280KW |
| 5 | Cross Cutting Way | Two Knives Fly Counter Cutting |
| Cutting Mechanism track cutting | ||
| 6 | Control Way | AC, CNC and PLC Control |
| 7 | Drive Motor | a. Decoiling Motor: AC 37KW b. Leveling Motor: AC 90KW |
|
c. Rotary Shears Servo Motor: AC 110KW |
||
Composition:
| Item | Qty | |
| 1 | Loading Station | 1 |
| 2 | Loading Car | 1 |
| 3 | Decoiler | 1 |
| 4 | Precise Leveling Machine (19 Rollers) | 1 |
| 5 | Servo Feeding Device (Include Laminating Device) | 1 |

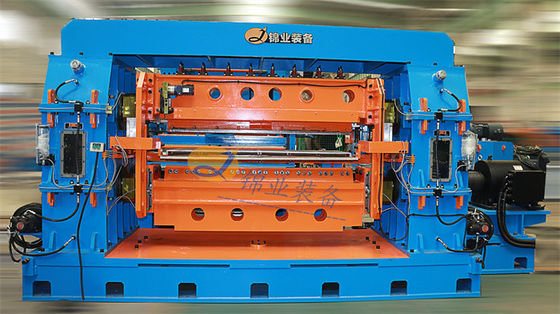

| 6 | Rotary High Speed fly Cutter | 1 |
| 7 | Three Stages Belt Conveyor | 1 |
| 8 | 1st Automatic sheets Gathering Machine | 1 |
| 9 | 2nd Automatic Gathering Machine | 1 |
| 10 | Hydraulic System | 1 |
| 11 | Pneumatic System | 1 |
| 12 | Lubricating System | 1 |
| 13 | Electrical System | 1 |
