Heavy Gauge Steel Plate Flying Cut To Length Line 4-13 X 1800

Heavy Gauge Steel Plate Flying Shear Cut To Length Line(4-13 x 1800)

Rich experiences in heavy gauge steel plate cut to length lines, we supply both stop-start shear automatic cut to length line and moving shear cut to length line, the former is often seen in heavy gauge steel plate processing plate, the latter moving shear cutting to length is becoming popular option for the higher productivity.

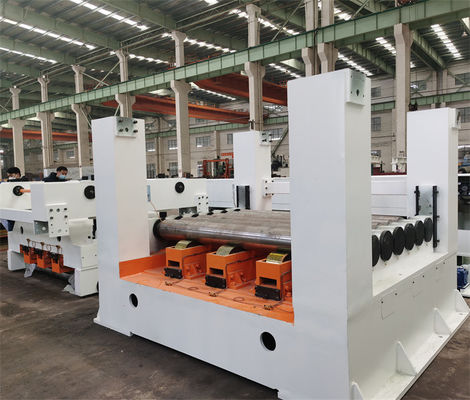

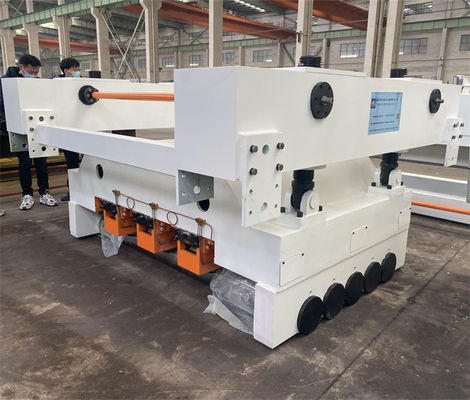

We supplied heavy gauge cut to length lines to Saudi Arabia( 4-16x 2000, 3-12 x 2000), to Jordan (2.5-10 x 2000), to Nigeria (3-12 x 2100 two sets), to Algeria (2-8 x 2100), make18 x 2000 heavy duty cut to length machine for Russian customer, 13 x 1800 moving shear cut to length line for Argentina, our advantage of making cut to length lines is: 1) strong and precise machine structure, esp. leveler 2) smooth working process 3) intelligent smooth control.

For thick steel sheet cutting to length, we can give more options of configuration:

• Double mandrels uncoiler, portal coil head opener, one leveler, encoding  length fixer, hydraulic shear, convey roll table, Sheets pusher and output roll table.
• Double heads uncoiler, portal frame coil head opener, dual levelers, encoding length fixer, hydraulic shear, convey roll table, pneumatc sheets pushers.
• Double mandrels uncoiler, portal coil head opener, dual levelers, encoding and servo length fixer, track moving shear, convey belt, automatic bomb hatch stacker, output roll table
• Double mandrels uncoiler, portal coil head opener, preleveler, edge trimmer, main leveler, encoding and servo length fixer, track moving shear, roll table, automatic stacker, output roll table

Features of moving shear:

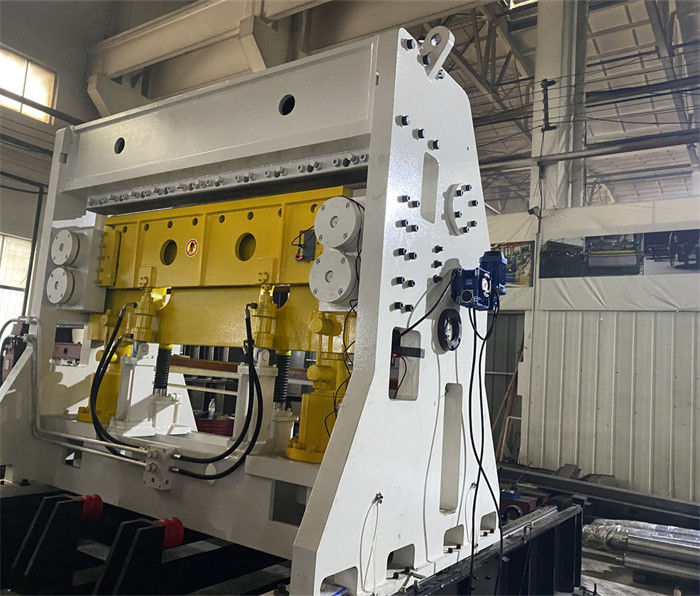

• The shear has a base where shear moves on linear rails of the base, servo motor drives the shear to move forward synchrously with coming plate, meanwhile hydraulic cut sheet to length.
• Roll table conveys the cut sheet forward and pinch feeding onto automatic stacker.
• Automatic stacker: roller arms receive the sheet and pneumatic release the sheet off onto roll table, the roll table hydraulic up down move until the stacking height, roll table transmit the stacked sheets outward.
• Parameters:

Composition:
