Product Details:
|
| Name: | Automatic Rotary Shear Cut To Length Line | Sheet Material: | CR, GI, GL, PPGI |
|---|---|---|---|
| Sheet Thickness: | 0.3-3mm | Sheet Width: | 300-1250mm |
| Coil ID: | 508mm, 610MM | Coil OD: | 1800mm |
| Coil Weight: | 20T | Cutting Speed: | 40pcs 2m Per Minute |
| Cutting Length: | 200-3000mm | Cutting Style: | Rotary Fly Shear |
| Leveler: | 4Hi, 6hi | Total Power: | 220KW |
| Land Area: | 28m X 8m | Feeding Direction: | Customer Decides |
| High Light: | Rotary Shear Cut To Length Line 0.3mm,Automatic Cut To Length Line,steel cut to length machine 1250mm |
||

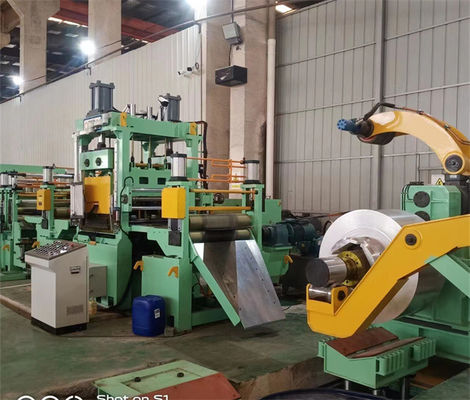

High Precision Automatic Rotary Shear Cut To Length Line (0.3-3) x 1250
Rotary Shear cut to length line is advanced flying shear cut to length machine, high speed high precision, esp. suitable for thin sheet short sheet metal cutting:
Comparision of 3mm coil and 0.3mm coil:
| Coil specification | Sheet length | Cutting line speed | Cutting time per coil | |
| 0.3mm coil sheet | 508mm ID,1250mm width, 15T | ~5000m | 50m/min | 100mins |
| 3mm coil sheet | 508mm ID, 1250mm width, 15T | ~500m | 50m/min | 10mins |
Parameters:
| Input Raw Material and Finished Product | |
| Raw Materials | Hot / Cold Galvanized, Cold Rolled , Color Coated Coils |
| Mechanical Property | Tensile Strength σb≤460Mpa, σ0.2≤280Mpa |
| Thickness | 0.2-2.0mm, 0.3-3.0mm |
| Width | 300mm-1250mm(Max) |
| O.D. | ≤Φ1500,1800mm |
| I.D. | Φ508mm (enlarge to Φ610mm with gaskets) |
| Max Weight | 15tons, 20 tons |
| Sheet length | 200 - 3000mm |
| Length Tolerance | L 0 = 1M±0.3 mm (uniform velocity) |
| L 0 = 1 M±0.4 mm (acceleration / deceleration) | |
| Diagonal Length Tolerance | L 1 = 1M±0.5mm |
| Stacking Height | 650mm Max (wooden support approx 150mm high) |
| Max Stacking Weight | 5 tons |
| Flying CTL Parameters | ||
| 1 | Linear Speed | 0-80 m/min |
| 2 | Threading Speed | 0-15 m/min |
| 3 | Power Supply | 380V / 50Hz / 3PH |
| 4 | Installed Power | About 220KW |
| 5 | Cross Cutting Way | Two Knives Fly Counter Cutting |
| Cutting Mechanism track cutting | ||
| 6 | Control Way | AC, CNC and PLC Control |
| 7 | Drive Motor | a. Decoiling Motor: AC 30KW b. Leveling Motor: AC 75KW |
|
c. Flying Shears Servo Motor: AC 90KW |
||
Composition:
| Item | Qty | |
| 1 | Loading Station | 1 |
| 2 | Loading Car | 1 |
| 3 | Decoiler | 1 |

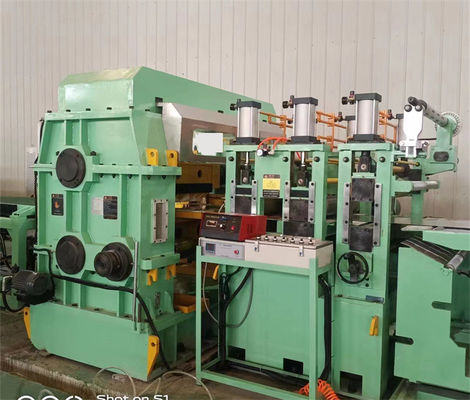

| 4 | Precise Leveling Machine (19 Rollers) | 1 |
| 5 | Servo Feeding Device (Include Laminating Device) | 1 |
| 6 | Rotary High Speed fly Cutter | 1 |
| 7 | Three Stages Belt Conveyor | 1 |
| 8 | 1st Automatic sheets Gathering Machine | 1 |
| 9 | 2nd Automatic Gathering Machine | 1 |
| 10 | Hydraulic System | 1 |
| 11 | Pneumatic System | 1 |
| 12 | Lubricating System | 1 |
| 13 | Electrical System | 1 |
