Heavy Gauge Steel Coil Straightener Flying Shear Cut To Length Line 3-10 X 1600

Heavy Gauge Steel Coil Straightener Flying Shear Cut To Length Line(3-10 x 1600)

Either stop-start shear automatic cut to length line or moving shear cut to length line is optional arrangement of heavy gauge steel coil cut to length line, We supplied heavy gauge cut to length lines to Saudi Arabia( 4-16x 2000, 3-12 x 2000), to Jordan (2.5-10 x 2000), to Nigeria (3-12 x 2100 two sets), to Russia (5-18 x 2000), 13 x 1800 moving shear cut to length line for Argentina,

our advantages of making heavy gauge cut to length lines:

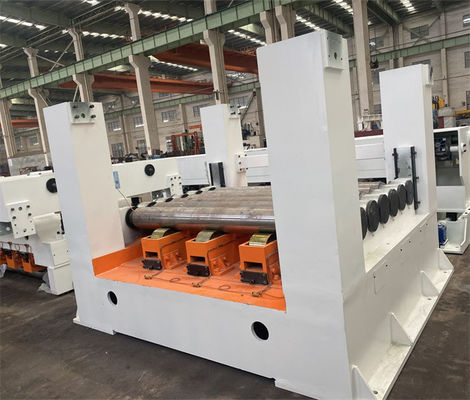

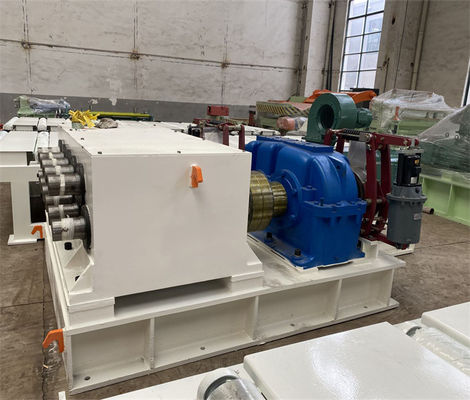

1. strong and precise machine structure, like uncoiler, portal coil head opener, pre leveler and main leveler.
2. smooth working process, uncoiler and coil head opener decoil steel strip, pre leveler level and release steel stress,main leveler flatten steel sheet, fly cutting steel sheet to length, roll table conveys steel sheet to automatic stacker, auto stacker stacks sheets and output sheets backward.
3. intelligent smooth control. the whole leveling cutting process is controlled and monitored by electric control system, intelligent and smoooth.

For thick steel sheet cutting to length, we can give options of configuration:

• Double mandrels uncoiler, portal coil head opener, one leveler, encoding  length fixer, hydraulic shear, convey roll table, Sheets pusher and output roll table.
• Double heads uncoiler, portal frame coil head opener, dual levelers, encoding length fixer, hydraulic shear, convey roll table, pneumatc sheets pushers.
• Double mandrels uncoiler, portal coil head opener, dual levelers, encoding and servo length fixer, track moving shear, convey belt, automatic bomb hatch stacker, output roll table
• Double mandrels uncoiler, portal coil head opener, preleveler, edge trimmer, main leveler, encoding and servo length fixer, track moving shear, roll table, automatic stacker, output roll table

Features of moving shear:

• The shear has a base where shear moves on linear rails of the base, servo motor drives the shear to move forward synchrously with coming plate, meanwhile hydraulic cut sheet to length.

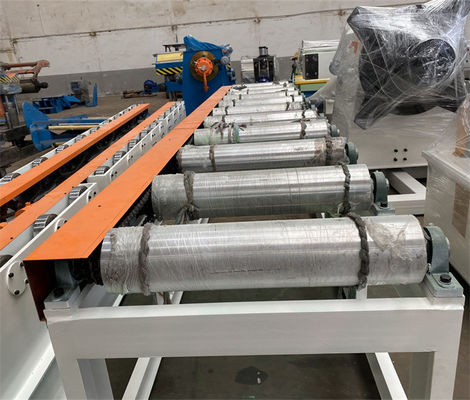

• Roll table conveys the cut sheet forward and pinch feeding onto automatic stacker.
• Automatic stacker: roller arms receive the sheet and pneumatic release the sheet off onto roll table, the roll table hydraulic up down move until the stacking height, roll table transmit the stacked sheets outward.

Parameters:

Composition:
