Product Details:
|
| Name: | AHSS High Strength Coil Steel Cut To Length Line | Sheet Material: | CR, GI, GL Steel Coils |
|---|---|---|---|
| Sheet Thickness: | 0.3-3.0mm | Sheet Width: | 300-1500mm |
| Coil ID: | 508mm, 610MM | Coil OD: | 1800mm |
| Coil Weight: | 20T | Cutting Speed: | 40pcs 2m Per Minute |
| Cutting Length: | 200-4000mm | Cutting Style: | Rotary Shear |
| Leveler: | 6high | Total Power: | 330KW |
| Land Area: | 28m X 8m | Feeding Direction: | Customer Decides |
| High Light: | AHSS rotary shear cut to length line,rotary shear cut to length line 0.3mm,steel coil cut to length line 1500mm |
||
AHSS High Strength Coil Steel Precision Rotary Shear Cut To Length Line (0.3-3) x 1500
AHSS mainly includes DP steel, TRIP steel, M steel, CP steel, HF steel, TWIP steel, QP steel, tensile strength 500 - 1500Mpa. in automobile industry, can largely improve strength at less mass. AHSS high strength steel sheets in coils are high quality steel, requiring high quality high efficiency cut to length line. Rotary flying shear cut to length line is good choice.
Rotary Shear cut to length line is advanced flying shear cut to length machine, high speed high precision:
Comparision of 3mm coil and 0.3mm coil:
| Coil specification | Sheet length | Cutting line speed | Cutting time per coil | |
| 0.3mm coil sheet | 508mm ID,1250mm width, 15T | ~5000m | 50m/min | 100mins |
| 3mm coil sheet | 508mm ID, 1250mm width, 15T | ~500m | 50m/min | 10mins |
Parameters:
| Input Raw Material and Finished Product | |
| Raw Materials | Hot / Cold Galvanized, Cold Rolled , Color Coated Coils |
| Mechanical Property | Tensile Strength σb≤460Mpa, σ0.2≤280Mpa |
| Thickness | 0.2-2.0mm, 0.3-3.0mm |
| Width | 300mm-1500mm(Max) |
| O.D. | ≤Φ1500,1800mm |
| I.D. | Φ508mm (enlarge to Φ610mm with gaskets) |
| Max Weight | 15tons, 20 tons |
| Sheet length | 200 - 4000mm |
| Length Tolerance | L 0 = 1M±0.3 mm (uniform velocity) |
| L 0 = 1 M±0.4 mm (acceleration / deceleration) | |
| Diagonal Length Tolerance | L 1 = 1M±0.5mm |
| Stacking Height | 650mm Max (wooden support approx 150mm high) |
| Max Stacking Weight | 5 tons |
| Flying CTL Parameters | ||
| 1 | Linear Speed | 0-80 m/min |
| 2 | Threading Speed | 0-15 m/min |
| 3 | Power Supply | 380V / 50Hz / 3PH |
| 4 | Installed Power | About 330KW |
| 5 | Cross Cutting Way | Two rotary Knives Fly Counter Cutting |
| rotating and cutting at fixed sheet length | ||
| 6 | Control Way | AC, CNC and PLC Control |
| 7 | Drive Motor | a. Decoiling Motor: AC 37KW b. Leveling Motor: AC 132KW |
|
c. Flying Shears Servo Motor: AC 132KW |
||
Composition:
| Item | Qty | |
| 1 | Loading Station | 1 |

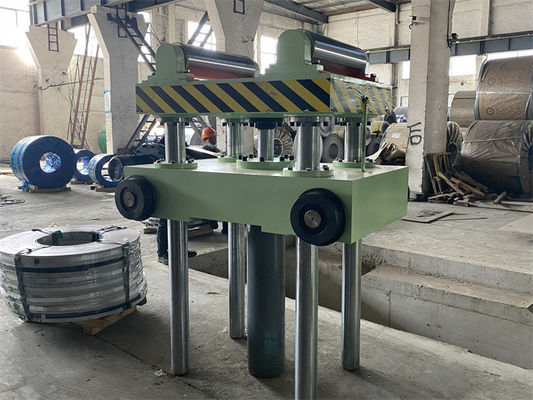

| 2 | Loading Car | 1 |

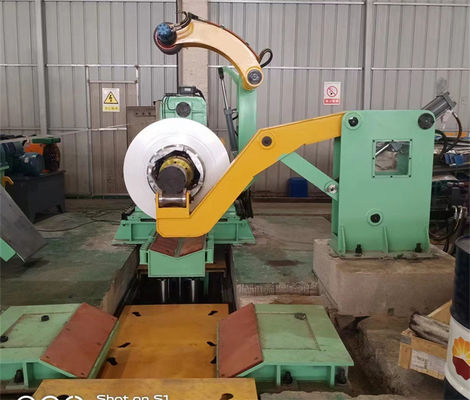

| 3 | Decoiler | 1 |

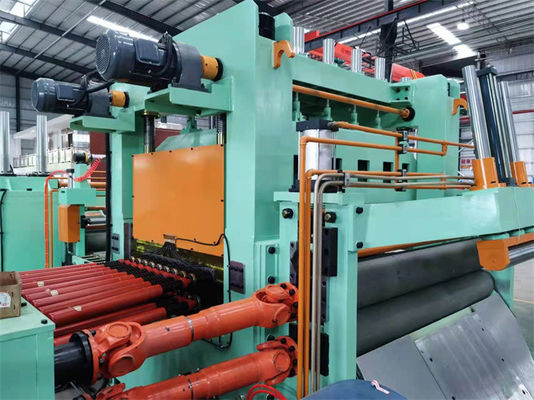

| 4 | Precise Leveling Machine (19 Rollers) | 1 |
| 5 | Servo Feeding Device (Include Laminating Device) | 1 |
| 6 | Rotary High Speed fly Cutter | 1 |
| 7 | Three Stages Belt Conveyor | 1 |
| 8 | 1st Automatic sheets Gathering Machine | 1 |
| 9 | 2nd Automatic Gathering Machine | 1 |

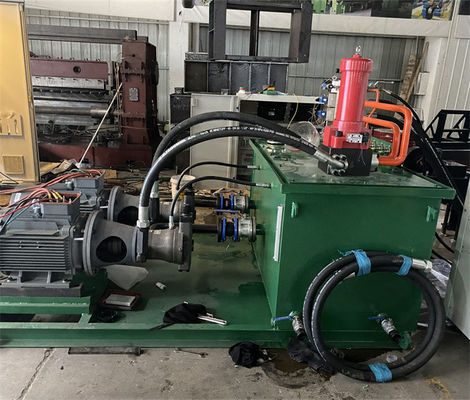

| 10 | Hydraulic System | 1 |
| 11 | Pneumatic System | 1 |
| 12 | Lubricating System | 1 |
| 13 | Electrical System | 1 |
