Product Details:
|
| Name: | Continuous High Speed Cut To Length Line Equipment | Material: | Rolled Steel Plates Carbon Steel, Low Alloy |
|---|---|---|---|
| Sheet Thickness: | 4-12mm | Sheet Width: | 1000-2000mm |
| Sheet Length: | 2000-12000mm | Cutting Speed: | 6pcs/min X 6m |
| Coil ID: | 508mm, 610mm, 760mm | Coil Weight: | 30T |
| Length Tolerance: | +/-0.5mm | Flatness: | 1.5 -2.0mm/m2 |
| Total Power: | 550KW | Land Area: | 55m X 10m |
| High Light: | High Speed Flying Cut To Length Line,Continuous Flying Cut To Length Line,cut to length and slitting line |
||

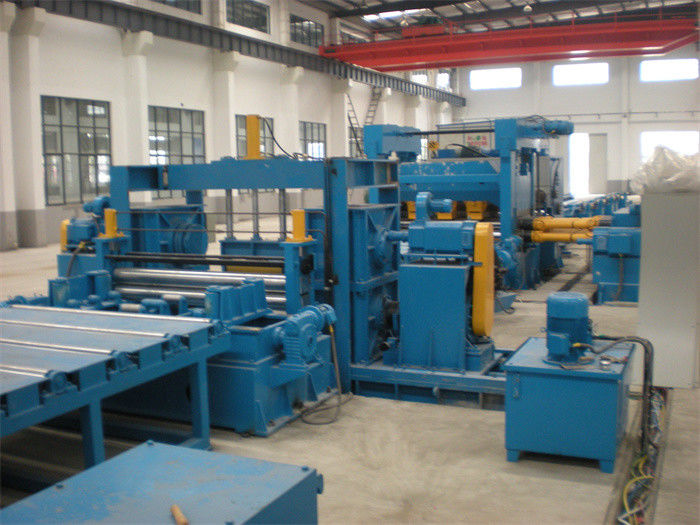

Rolled Steel Continuous High Speed Cut To Length Line Equipment With Edge Trimming
Our CTL line equipment can be found in a variety of different types of plants: steel mills, metal service centers, and original equipment manufacturer’s plants (OEM), in the food and beverage industry, electronics, etc.
Heavy duty feed-to stop CTL lines are designed to feed the strip material to a predetermined point beyond the shear, stop and then shear the strip to plate. Usually, feed-to-stop lines are heavy gauge lines ranging from 0.375” (9.5mm) to 1.00” (25mm) in thickness and 24” (610mm) to 120” (3050mm) in width.
In looping pit CTL Lines, the sheet material never stops in the entry section of the line. The shearing action occurs as the sheet is momentarily stopped after it is fed to a set length beyond the shearing point by the feed rolls. The feeder system must accelerate to high velocities to maintain a constant average loop depth.
Continuous high speed cut to length lines are equipped with dynamic shears designed to cut the material at line speed, thus allowing the strip to move continuously. The most frequent solution is Rotary Shear and Moving Shear.
In high precision metal strip cut to length line, edge trimming is often required specially for stainless steel sheet, aluminum steel sheet.
Film laminating is also seen in the high precision continuous cut to length process.
Composition and Parameters:

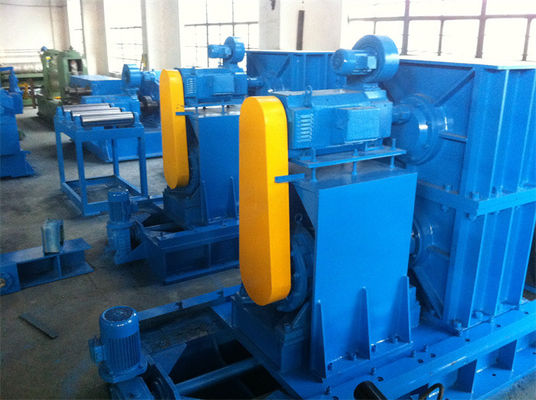

| No. | Composition | Parameter / Configuration |
| 1 | Coil Saddle | 20-30T |
| 2 | Double mandrel uncoiler | Φ500-800 mm, 30T load |
| 3 | Pinch feeder and Five Roller Leveler | Φ250 mm, 200KW |
| 4 | Pit accumulator | 6000mm |
| 5 | Side guide 1# | Hydraulic 1000-2000mm |
| 6 | Edge Trimmer |
Separate body, frequency control, 3-8mm edge |
| 7 | Scrap winder and over roll table | Scrap guide, hydraulic push winder |
| 8 | Side guide 2# | Hydraulic 1000-2000mm |
| 9 | 11 roller leveler | 4Hi, 300KW, Φ210 mm, 300KW |
| 10 | Rotary encoder | Rep, Omron |
| 11 | Hydraulic Shear | Heavy duty, 45KW |
| 12 | Roll table | 4000mm |
| 13 | Stacker and X table | bomb hatch type, 6m x 2 |
| 14 | Hydraulic system | Rexroth valves, Yuken pump |
| 15 | Electrically control system | Parker DC drive, Siemens PLC and HMI |
SUS201 , SUS304 , SUS410 Stainless Steel Specification for reference:
| SUS series | National grade | ASTM grade | TS(Mpa) | YS(Mpa) |
| 200 Cr-Mn-Ni |
12Cr17Mn6Ni5N | 201 | 720 | 390 |
| 12Cr18Mn9Ni5N | 202 | 680 | 356 | |
| 300 Cr-Ni |
301 | 755 | 275 | |
| 0Cr18Ni9 | 304 | 680 | 320 | |
| 00Cr19Ni10 | 304L | 560 | 270 | |
| 0Cr25Ni20 | 310S | 655 | 310 | |
| 00Cr17Ni14Mo2 | 316L | 560 | 290 | |
| 400 Cr |
1Cr13 | 410 | ||
| 430 | 345 | 510 |
Characters:
1.Uncoiler / Decoiler
heavy cut to length line handle heavy steel coils of heavy gauge. the uncoiler has double mandrels and strong sliding bases.
Each mandrel has three steps, the opening and closing of two mandrels by hydraulic cylinders.
Back tension mechanism installed on top of uncoiler base, to ensure uncoiling stability.
2. Portal frame coil head opener
Portal frame is very strong, with snubber press roller ,straightening roller on top of the frame.
the hydraulic snubber roll press on top of steel coil, and its pressing-down angle is adjustable
Straightening roller can slide forward backward to track strip head and straighten it.
Shoveling plate installed on preleveler support the coil head while straighten roller press coil head.
3. first 2+5 pre leveler
the roller is huge and strong,reliefing internal stress of steel coil, roller surface is hardened and chrome coated
To relief the uncoiling bending stress to relaxed state.

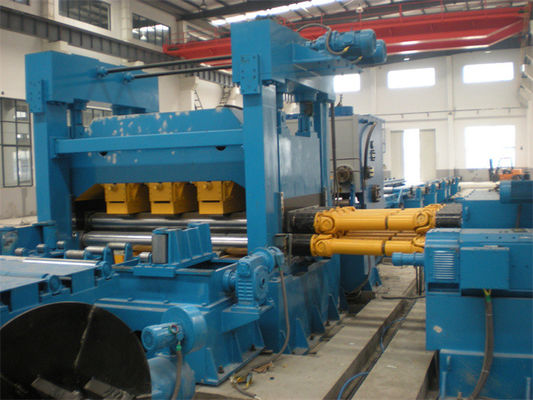

4. Heavy duty leveler
number of heavy duty leveler will be 13pcs, 11pcs or 9pcs, diameter of rollers will be 180mm -230mm -300mm,
The gap and angle of upper rollers and lower rollers can be adjusted.
No stop leveling, the leveler continuously working without pressing steel plate while synchro cutting, this is good for protecting steel plate surface without leaving roller mark
When shear is stop cutting, the leveler is clutched and stopped under encoder measuring.

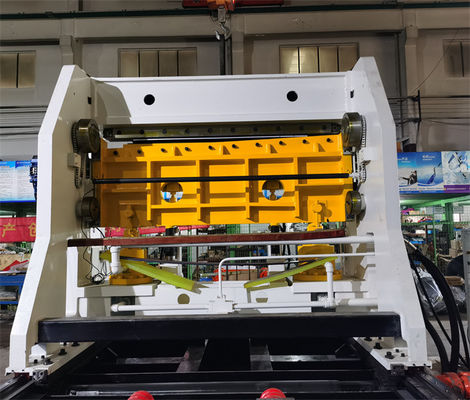

5. Hydraulic shear
Track Shear: Synchro High frequency cutting and strong frame, strong hydraulic station for shearing, big servo motor for synchro tracking steel plate running.
Hydraulic rocking shear is stop cutting under encoder measuring.
6. Automatic stacker
Bomb hatch stacking, receive each sheet on roller arm, open the two arms to release the sheet fall down on lifting table.
Roll table deliver the piled sheets outward to pack.
7. Automatic control, the whole process is under PLC control in auto mode.
