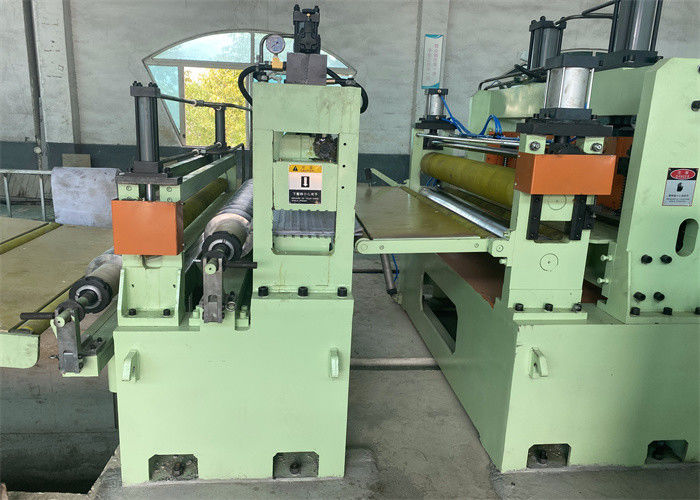

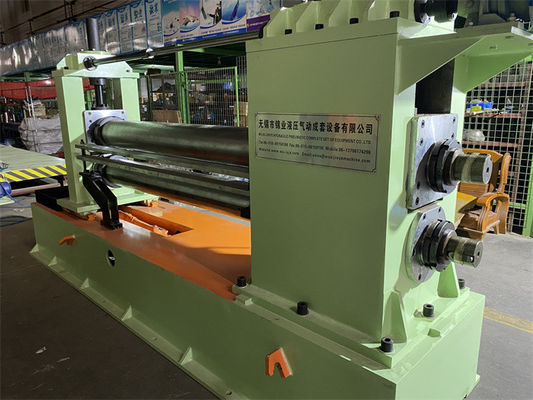

Aluminum Coil High Precision Sheet Slitting Machine Line
Aluminum sheet is softer in body and smooth in surface, some aluminum sheet is hard and high tensile, so aluminum Coil sheet slitting must be high precision, the slitting tools for aluminum sheet is unique, slitting speed is high when aluminum sheet gauge is small.
aluminum sheets can be pure aluminum or aluminum alloy, most frequently 1xxx, 3xxx, 5xxx, 7xxx series aluminum sheets
Features of aluminum sheet:
- it has good plasticity, easy to be processed
- aluminum sheet is light, its density is 2.7g/cm3, about one third of steel sheet
- The strength of aluminum sheet can be improved by cold rolling and annealing.
- Aluminum sheet has solid Al2O3 protection surface, is anti- corrosion.
- Aluminum sheet is softer in body and smooth in surface, must be well processed.
| category |
purity |
grade |
usage |
properties |
| 1xxx series |
Al 99% |
1050, 1060,1100 |
common |
|
| 2xxx |
Cu (3-5%) |
2A16(LY16), 2A06(LY6) |
aviation |
|
| 3xxx |
Mn (1.0-1.5%) |
3003,3004,3005,3A02, 3A21 |
common |
|
| 5xxx |
Mg(3-5%) |
5052.5005.5083.6754. 5A05 |
common, aviation |
low density,
high tensile strength,
high elongation
|
| 7xxx |
Zn |
7075 |
aviation materials |
high hardness and strength without stress |
Composition and Parameters:
| No. |
Composition |
Parameter |
| 1 |
Feeding Coil car |
8T |
| 2 |
Double mandrel uncoiler |
Φ508 mm, 8T load |
| 3 |
Pinch feeder and Five Roller Leveler |
Φ160 mm, 30KW |
| 4 |
Hydraulic shear |
3 x 1600 |
| 5 |
Pit loop1 |
3000mm length |
| 6 |
side guide and Pres Roller |
300-1600mm wide |
| 7 |
slitting machine |
Φ220mm, 22KW |
| 8 |
edge scrap winder and Strips tails Press |
3KW x 2 |
| 9 |
Pit accumulator |
3000mm length |
| 10 |
Pre-separator, Tensioner, balancing roller |
Twice separating, wool felt tension, belt tension |
| 11 |
ReCoiler (with separating discs, pusher) |
Φ508mm, 55KW, 10T |
| 12 |
Coils discharging trolley |
8T |
| 13 |
Hydraulic system |
Rexroth valves, Yuken pump |
| 14 |
Electrically control system |
Parker DC drive, Siemens PLC and touch screen |
General Parameters:
1)Material:(AA3105,1100,8011)Aluminum coils
2)Coil thickness:0.3–3.0mm
coil width: 300–1600 mm
3)Coil inner diameter: Φ508 mm
4)Coil outer diameter:Φ1800 mm
5)Coil weight:8000kg max
6)Finished products width:20-500mm
7)Minimum slitting width:normal slit width above 30mm.
8)Slitting speed:Max 120m/min
9)Number of strips:max10 strips in thickness 3mm,
max 30strips in 0.3mm to 1.0mm,
max 20strips in the rest of the thickness,
10).Area occupied:8mX25m
11) slitting motor: 22KW AC,
uncoiling motor: 11KW AC
leveling motor: 15KW AC
Recoiling motor: 55KW
