High Precision Metal Slitting Line Brass Copper Foil Mini Slitting Machine 0.08-0.5 X 400

High Precision Metal Slitting Line Brass Copper Foil Mini Slitting Machine 0.08-0.5 X 400
High Precision Metal Slitting Line Brass Copper Foil Mini Slitting Machine 0.08-0.5 X 400
High Precision Metal Slitting Line Brass Copper Foil Mini Slitting Machine 0.08-0.5 X 400 High Precision Metal Slitting Line Brass Copper Foil Mini Slitting Machine 0.08-0.5 X 400 High Precision Metal Slitting Line Brass Copper Foil Mini Slitting Machine 0.08-0.5 X 400

Large Image :  High Precision Metal Slitting Line Brass Copper Foil Mini Slitting Machine 0.08-0.5 X 400

Product Details:
Place of Origin: Wuxi, China
Brand Name: Jinye
Model Number: Cu (0.08-0.5) x 400
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Packaging Details: 1 x 40HC + 20GP
Delivery Time: 90 -150days
Payment Terms: L/C, T/T
Supply Ability: 10Sets per year
Contact Now

High Precision Metal Slitting Line Brass Copper Foil Mini Slitting Machine 0.08-0.5 X 400

Description
Prodcut Name: Mini Slitting Machine Sheet Material: Aluminum, Copper, Brass, Bronze Foil
Sheet Thickness: 0.08-0.5mm Sheet Width: 100-400mm
Slitting Speed: 120m/min Coil I.D: 508mm
Coil O.D: 1000mm Coil Weight: 1.5T
Slitting Precision: ±0.10mm Number Of Slitting: 10strips
Applicable Industries: Energy & Mining, Home Use, Hotels, Retail, Farms, Construction Works , Garment Shops, Restaurant, Building Material Shops, Machinery Repair Shops, Manufacturing Plant Key Selling Points: High Precision，High Productivity，Low Cost And High Speed
After Sales Service: Online Support, Field Installation After Warranty Service: Video Technical Support, Online Support, Field Maintenance
Highlight:

Brass Copper Foil Mini Slitting Machine 0.08-0.5 X 400

,

Metal Slitting Line 0.5 X 400

,

mini slitting machine 0.08mm

High Precision Brass Copper Foil Mini Slitting Machine



copper foil slitting machine 0.08-0.5 x 400mm

Copper(bronze, Brass) and copper alloy Strips are widely used in industries of electronics, automobiles, electricity, home appliances, etc.to make parts like electric elements, light holder, battery cap, buttons, seals, etc.

    Copper, Brass, Bronze Grades Properties
1 Bronze QSn4.0-0.3(C5111/C5100),QSn6.5-0.1(C5191),
QSn8.0-0.3(C5210),QSn10-0.3(C5240)		 good elongation, fatigue resistance, corrosion resistance
2 Brass H62(C2800),H63(C2720),H65(C2680),H68(C2620),
H70(C2600),H85(C2300),H90(C2200),H96(C2100)		 good cold processing, hot forming, anti corrosion and good strength
3 Cu-Ni-Zn BZn10-25(C7450),BZn12-24(C7451),BZn15-20(C7541),
BZn18-10(C7350),BZn18-18(C7521),BZn18-26(C7701)		 good looking, good elongation, good anti-fatigue, anti-corrosion, stress relaxation resistance,
4 Copper T2(C1100),TU00(C10100), TU1, TU2,
TU3(C10200), TP1(C12000),TP2(C12200)		 good power condution, heat conduction, anti corrosion, proper strength, easy forming and graceful apperance.



Layout process:

Coil-loading→Single Mandrel uncoiling →Coil-end-press & shoveling→Double-roller pinch feeding, End-cutting → Hole Accumulator1 → Side Guide → Disc slitting→Scrap reeling→Hole Accumulator 2→Pre-separator, Tensioner, Shear, Deflector roller→Overarm Separator ,Recoiling→Coils-discharging → Hydraulic control → Electric control




Coming Material:

  • Copper (C110/C120/C122/C144),
  • Yellow Brass(C260/C268/C272),
  • Red Brass (C230/C220/C210)
  • Bronzes (C510/C511/C519/C521/C524)
  • Strip thickness: 0.04mm to 0.5mm;
  • Strip width: 100～400mm
  • Inner diameter of coils: Φ508mm.
  • Outer diameter of coils: Φ1000mm
  • Max. coil weight: 1500Kg.

Finished product:

  • Width of slit strips: 6mm - 100mm
  • Burrs of slit strips: ≤0.03mm
  • slit strips width tolerance: strip width ≤100mm, tolerance≤±0.03mm; strip width ＞100mm, ≤±0.05mm
  • camber of slit strips:1.5mm/m

Composition and Parameters:

Coil loading car
Uncoiler(508mm x 500mm, 7.5KW)
Pit loop1 including photoelectric sensor
entry guide, Slitter, edge scrap winder(7.5KW)
Pit loop2
tensioner
Recoiler (11KW, 200mm, 300mm)
coils discharging car
Electric control system
Hydraulic system(5.5KW)
Pneumatic system



Configuration:

Part Material, Processing, Brand
shaft, axis, roller 42CrMo,HB250-275
Slitter arbor 42CrMoforging, HB280-300, surface MF HRC50-55, hard chrome coating, surface polishing
Frame, bases Q235-A ,Q345(16Mn) steel plates welding, annealing treatment
Gearbox body Q345 plates welding, heat treatment, sand blasting, primer painting
Gears: 40Cr forging steel, HB240-255, teeth face hardened, teeth ground
Uncoiler Recoiler Segments: 55# Cast steel, tempering, hard chrome coating and polishing
Hydraulic pump Yuken pistion variable pump
PLC Siemens S200
Bearing HRB, ZWZ, SKF
Pneumatic parts Airtac,SMC

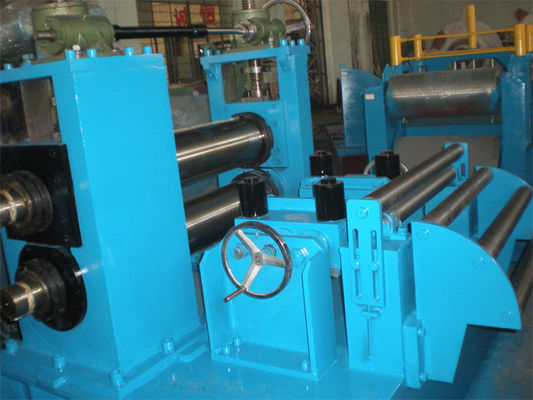

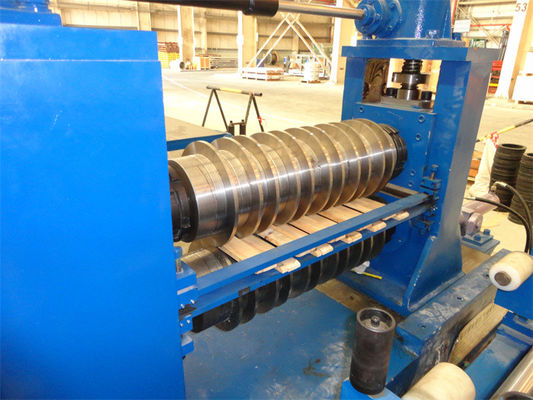

High Precision Metal Slitting Line Brass Copper Foil Mini Slitting Machine 0.08-0.5 X 400 0High Precision Metal Slitting Line Brass Copper Foil Mini Slitting Machine 0.08-0.5 X 400 1
