Automatic Aluminum Foil Electrode Slitting Machine 0.2 X 700

Large Image : Automatic Aluminum Foil Electrode Slitting Machine 0.2 X 700

Product Details:

Place of Origin:	Wuxi, China
Brand Name:	Jinye
Model Number:	Electrode 0.2 x 700

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Packaging Details:	export wood box
Delivery Time:	100 -150days
Payment Terms:	L/C, T/T
Supply Ability:	10Sets per year

Contact Now

Automatic Aluminum Foil Electrode Slitting Machine 0.2 X 700

Description

Prodcut Name:	Aluminum Slitting Machine	Sheet Material:	Aluminum, Copper Foil，Brass, Bronze
Sheet Thickness:	0.03-0.2mm	Sheet Width:	300-700mm
Slitting Speed:	80m/min	Coil I.D:	80mm
Coil O.D:	600mm	Coil Weight:	500kgs
Number Of Slitting:	10strips	Slitting Precision:	±0.10mm
Applicable Industries:	Energy & Mining, Home Use, Hotels, Retail, Farms, Construction Works , Garment Shops, Restaurant, Building Material Shops, Machinery Repair Shops, Manufacturing Plant	Key Selling Points:	High Precision，High Productivity，Low Cost And High Speed
After Sales Service:	Online Support, Field Installation	After Warranty Service:	Video Technical Support, Online Support, Field Maintenance
Highlight:	Electrode Slitting Machine 80m/min , Electrode Slitting Machine 0.2 x 700 , Automatic Aluminum Foil Slitting Machine

Automatic Aluminum Foil Electrode Slitting Machine 0.2 x 700

Battery Electrode Slitting Machine Continuously slit lithium battery electrode coil to required sizes and quality.

To slit cathode / anode electrode (copper foil, aluminum foil with continuous or intermittent lithium ion coating on), the electrode surface without obvious defects like wrinkle or swollen edge.

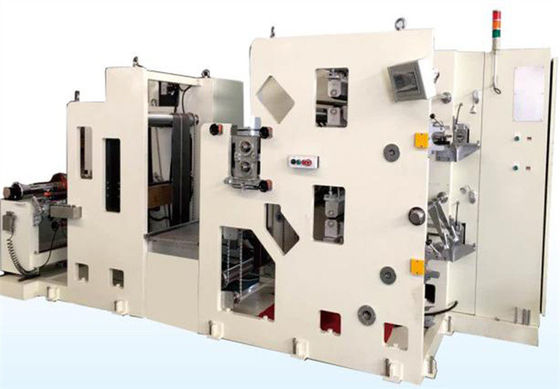

Automatic Aluminum Foil Electrode Slitting Machine 0.2 X 700 0

Slitting process:

Fully automatic closed tension control unwinding, two sets CCD appearance detector to detect defects on both sides(face side and back side) of electrode strip, slit electrode driven by servo motor, two tension measuring guide rollers(upper guide roller and lower guide roller) measure the real-time tension, label defective product and rewind slit electrode strips into coils.
Rewinding speed is independently controlled by servo motor, automatic measure coiling diameter and control coiling tension.

Coming Material:

Item	Specification
Type	Anode: NCM, LFP, LiMn2O4, Cathode: graphite, Silicon oxide, silicic acid
thickness	≦0.2mm
foil width	≦700mm
width deviation	≦±0.3mm
foil coil ID	76.2152.4
foil coil weight	≦500KGS
foil coil OD	≦600mm

Slitting precision:

Slitting accuracy	Slit width tolerance in time of edge trimming≦±0.05;CPK≧1.67
Burrs	In electronic microscope measure burrs in vertical direction≤7ｕm, in horizontal direction ≤14ｕm

Edge wavy deviation	≦±0.3mm/1000mm

Edge wave face height	≦±0.3mm/1000mm

Winding edge face deviation	≤±0.5mm /coil

Winding mandrel diameter	76.2/152.4

Winding coil load	≦500

Winding coil diameter max	≦600

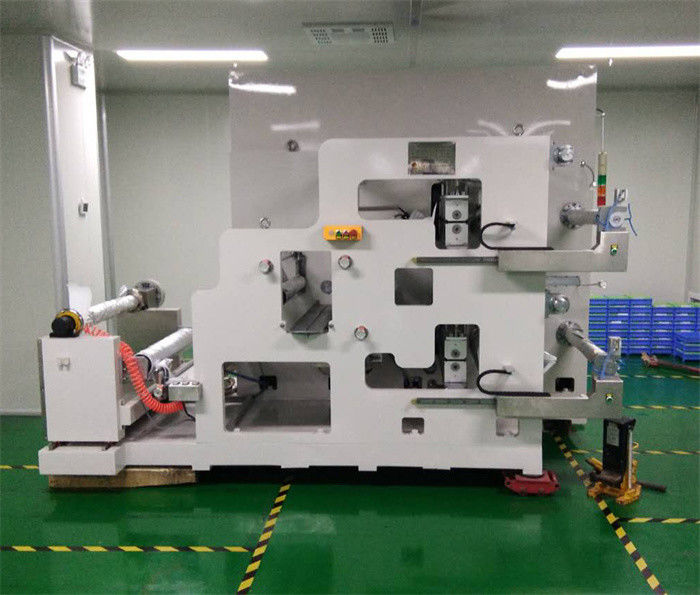

Automatic Aluminum Foil Electrode Slitting Machine 0.2 X 700 1
