ERW Pipe Low Cabon Black Steel Coil Slitting Line Machine 0.4-4 X 1600

ERW Pipe Low Cabon Black Steel Coil Slitting Line Machine(0.4-4 X 1600)

Carbon steel sheets are most common metal sheet, most of carbon steel sheets are low carbon steel (mild steel), hot rolled HR carbon steel coils are thicker range of steel sheets before cold rolling process, thickness is over 2mm, HRC black steel coils have good plasticity and strength for structural application such as ERW steel pipes, racking columns and beams, frames and purlins.

The HRC slitting line is robust to bear the heavy load of oxide skin, is high efficiency to give good production. One Hot rolled sheet slitting line can supply slit strips for two or three ERW pipe mills, four or five roll forming machines.We know well customers requirements of hot rolled coils slitting lines and what configuration machines suit market. We have supplied hundreds of sets HR slitting machines to customers around the world, welcome your inquiries.

Composition:

1)Coil preparing saddle

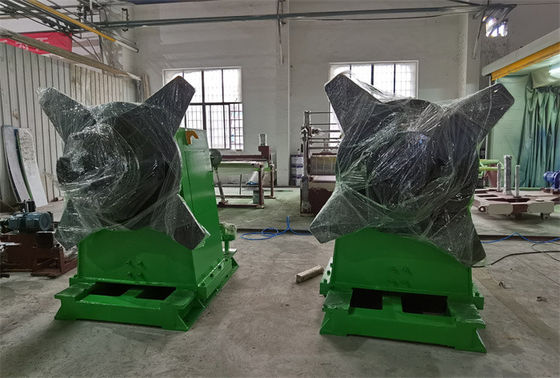

2)Double Mandrel uncoiler

3)Coil-head straightening and shoveling device

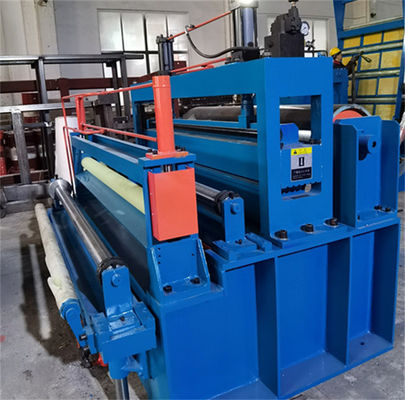

4)double pinch rolls & 5-roller Leveler and coil head shear

5)Transmission roll table

6)Side guide before slitter

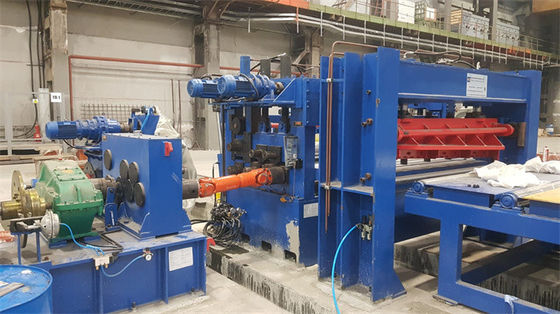

7)Slitter(double heads fast exchange is optional)

8)edge scrap reeler(located below transmission table)

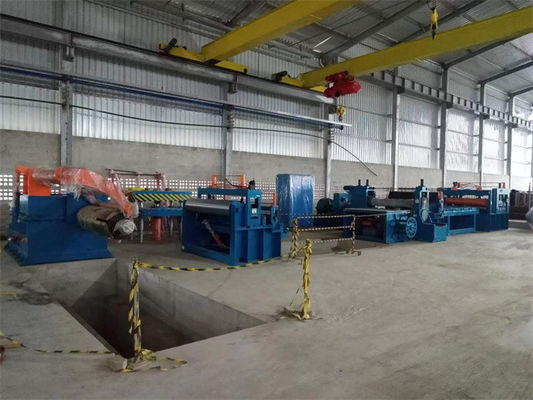

9) pit accumulator

10)pre-separator & Tensioner, Deflector Roller

11)Recoiler with Separator press bracket

12)Coil Discharging Car

13)Hydraulic system, Pneumatic system

14)Electric control system

Layout Process:

Coil preparing saddle, Coil loading Car, Single mandrel Uncoiler with press roller, Coil head peeler, Pinch feeder & 5 roller Pre-leveler, Shear, Pit loop 1, Side guide, Slitter, Scrap winder, Pit loop 2, Tensioner and Pre-separator, post shear and deflector roller, recoiler with overarm separator, coil discharging car, (turnstile)

Parameters:
