Compact Precision Steel Slitting Machine For Light Gauge 0.3-1.2 X 1300

Compact Precision Steel Slitting Machine For Light Gauge 0.3-1.2 X 1300
Compact Precision Steel Slitting Machine For Light Gauge 0.3-1.2 X 1300
Compact Precision Steel Slitting Machine For Light Gauge 0.3-1.2 X 1300 Compact Precision Steel Slitting Machine For Light Gauge 0.3-1.2 X 1300 Compact Precision Steel Slitting Machine For Light Gauge 0.3-1.2 X 1300

Large Image :  Compact Precision Steel Slitting Machine For Light Gauge 0.3-1.2 X 1300

Product Details:
Place of Origin: Wuxi, China
Brand Name: Jinye
Model Number: compact 0.3-1 X 1300
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Packaging Details: 1x40HC + 1 x 20GP
Delivery Time: 100-120days
Payment Terms: L/C, T/T
Supply Ability: 20Sets per Year
Contact Now

Compact Precision Steel Slitting Machine For Light Gauge 0.3-1.2 X 1300

Description
Product Name: Steel Slitting Machine Sheet Coil Material: CR, GI, GL, PPGI
Sheet Coil Width: 300-1300mm Sheet Coil Thickness: 0.3-1.2mm
Slitting Speed: 0-40m/min Coil I.D: 508mm, 610mm
Coil O.D: 1200mm Coil Weight: 6T
Number Of Slitting: 1mm X 10slits Slitting Precision: +/-0.20mm
Applicable Industries: Energy & Mining, Home Use, Hotels, Retail, Farms, Construction Works , Garment Shops, Restaurant, Building Material Shops, Machinery Repair Shops, Manufacturing Plant Key Selling Points: High Precision，High Productivity，Low Cost And High Speed
After Sales Service: Online Support, Field Installation After Warranty Service: Video Technical Support, Online Support, Field Maintenance
Highlight:

Compact Precision Steel Slitting Machine

,

Steel Slitting Machine For Light Gauge

,

1300mm precision steel strip slitting machine

Compact Precision Steel Slitting Machine For Light Gauge (0.3-1.2 X 1300)



When customer needs small gauge slit baby coils to make metal plate product, he can choose compact ecomonical type, simpler structure, lower speed, lower cost.

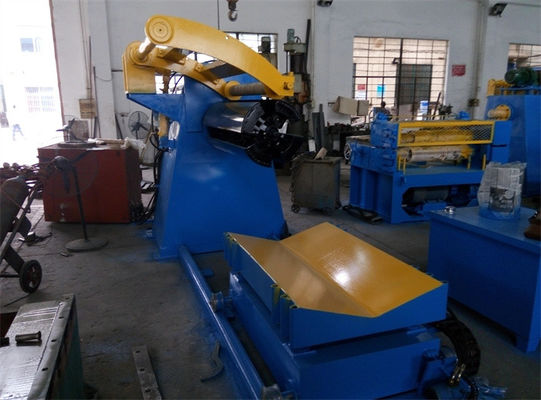

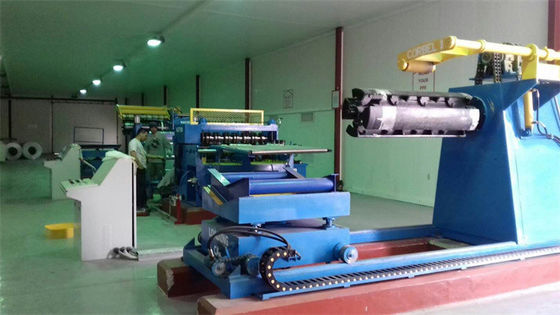

Composed of Coil-loading car, Cantilever Single-mandrel active uncoiler→Side guide, slitter + edge scrap reeler→over ground loop→pre-separator + tensioner→recoiler, coils discharging car.



Parameters:

Compact Slitting Line
JY(0.25 -1.0 X 1300) 40m/min		 Parameters
Coming steel coils ID508mm, 610mm, OD1200mm, coil weight 6T
Finished baby coils ID508mm, OD1200mm, coil weight 6T max
Mother coil width 300-1300mm
Baby coil widths 20mm -600mm
Number of slitting 1mm x 10slits
Main motors Slitter 30KW + Recoiler 37KW
Slitter knife

ID160 x OD280 x 40mm SKD11 HRC58-61

knives are fixed on arbors by screws.
Recoiler mandrel Cantilever mandrel
Slitting speed 0-40mpm adjustable
Configuration Siemens PLC, Inverter Drive, Vitory Valves
Slitting precision Slit width ±0.2mm; Camber ±0.1mm/m;
bur 5% of thickness; recoil hump<0.5mm

Configuration:

AC motor drive and frequency converter for slitting and recoiling

Siemens smart PLC and big screen touch screen

Chint or Schneider electric parts





Layout Drawing

Compact Precision Steel Slitting Machine For Light Gauge 0.3-1.2 X 1300 0

Compact Precision Steel Slitting Machine For Light Gauge 0.3-1.2 X 1300 1Compact Precision Steel Slitting Machine For Light Gauge 0.3-1.2 X 1300 2
