Compact Ecomonic GI PPGI Steel Slitting Machine For Light Gauge 0.3-1.2 X 1250

I'm Online Chat Now

Compact Ecomonic GI PPGI Steel Slitting Machine For Light Gauge 0.3-1.2 X 1250

Compact Ecomonic GI PPGI Steel Slitting Machine For Light Gauge 0.3-1.2 X 1250
Compact Ecomonic GI PPGI Steel Slitting Machine For Light Gauge 0.3-1.2 X 1250 Compact Ecomonic GI PPGI Steel Slitting Machine For Light Gauge 0.3-1.2 X 1250 Compact Ecomonic GI PPGI Steel Slitting Machine For Light Gauge 0.3-1.2 X 1250

Large Image :  Compact Ecomonic GI PPGI Steel Slitting Machine For Light Gauge 0.3-1.2 X 1250

Product Details:
Place of Origin: Wuxi, China
Brand Name: Jinye
Model Number: compact 0.3-1.2 X 1250
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Packaging Details: 1x40HC + 1 x 20GP
Delivery Time: 100-120days
Payment Terms: L/C, T/T
Supply Ability: 20Sets per Year

Compact Ecomonic GI PPGI Steel Slitting Machine For Light Gauge 0.3-1.2 X 1250

Description
Product Name: Compact Ecomonic GI PPGI Steel Slitting Machine Sheet Coil Material: CR, GI, GL, PPGI
Sheet Coil Width: 300-1250mm Sheet Coil Thickness: 0.3-1.2mm
Slitting Speed: 0-30m/min Coil I.D: 508mm, 610mm
Coil O.D: 1200mm Coil Weight: 6T
Number Of Slitting: 1mm X 15slits Slitting Precision: +/-0.20mm
Applicable Industries: Energy & Mining, Home Use, Hotels, Retail, Farms, Construction Works , Garment Shops, Restaurant, Building Material Shops, Machinery Repair Shops, Manufacturing Plant Key Selling Points: High Precision,High Productivity,Low Cost And High Speed
After Sales Service: Online Support, Field Installation After Warranty Service: Video Technical Support, Online Support, Field Maintenance
Highlight:

Compact GI PPGI Steel Slitting Machine

,

Ecomonic GI PPGI Steel Slitting Machine

,

Light Gauge PPGI Steel Slitting Machine

Compact Ecomonic GI PPGI Steel Slitting Machine For Light Gauge 0.3-1.2 X 1250

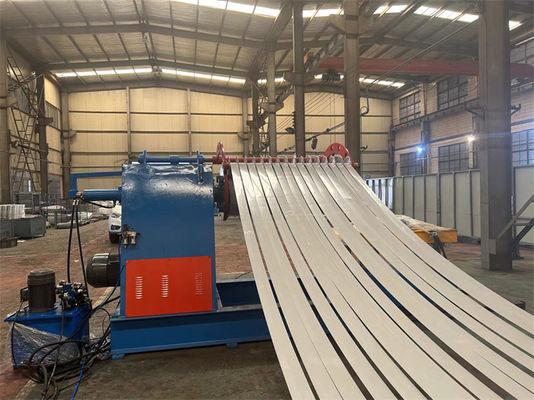

When customer needs small gauge slit baby coils to make metal plate product, he can choose compact ecomonical type, simpler structure, lower speed, lower cost. The compact steel coil slitting machine is very suitable for small production economic investment, like the roof profiles like keef, stud, cable tray, celling panels, etc.

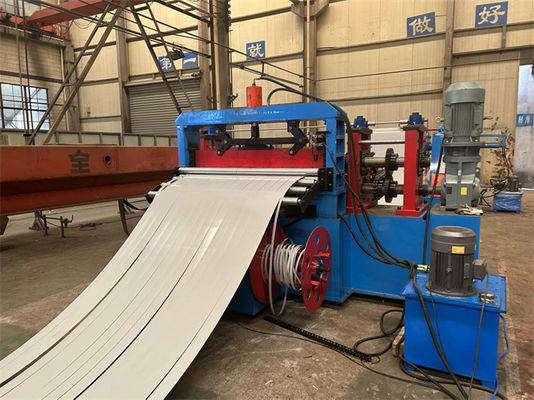

Composed of Coil-loading car, Cantilever Single-mandrel active uncoiler→Side guide, slitter + edge scrap reeler→over ground loop→pre-separator + tensioner→recoiler, coils discharging car.



Parameters:

Compact Slitting Line
JY(0.25 -1.2 X 1300) 40m/min
Parameters
Coming steel coils ID508mm, 610mm, OD1200mm, coil weight 6T
Finished baby coils ID508mm, OD1200mm, coil weight 6T max
Mother coil width 300-1300mm
Baby coil widths 60mm -600mm
Number of slitting 1mm x 15slits
Main motors Slitter 30KW + Recoiler 37KW
Slitter knife

ID160 x OD280 x 40mm SKD11 HRC58-61

knives are fixed on arbors by screws.

Recoiler mandrel Cantilever mandrel
Slitting speed 0-30mpm adjustable
Configuration Siemens PLC, Inverter Drive, Vitory Valves
Slitting precision Slit width ±0.2mm; Camber ±0.1mm/m;
bur 5% of thickness; recoil hump<0.5mm

Configuration:

AC motor drive and frequency converter for slitting and recoiling

Siemens smart PLC and big screen touch screen

Chint or Schneider electric parts





Layout Drawing

Compact Ecomonic GI PPGI Steel Slitting Machine For Light Gauge 0.3-1.2 X 1250 0

Compact Ecomonic GI PPGI Steel Slitting Machine For Light Gauge 0.3-1.2 X 1250 1Compact Ecomonic GI PPGI Steel Slitting Machine For Light Gauge 0.3-1.2 X 1250 2
